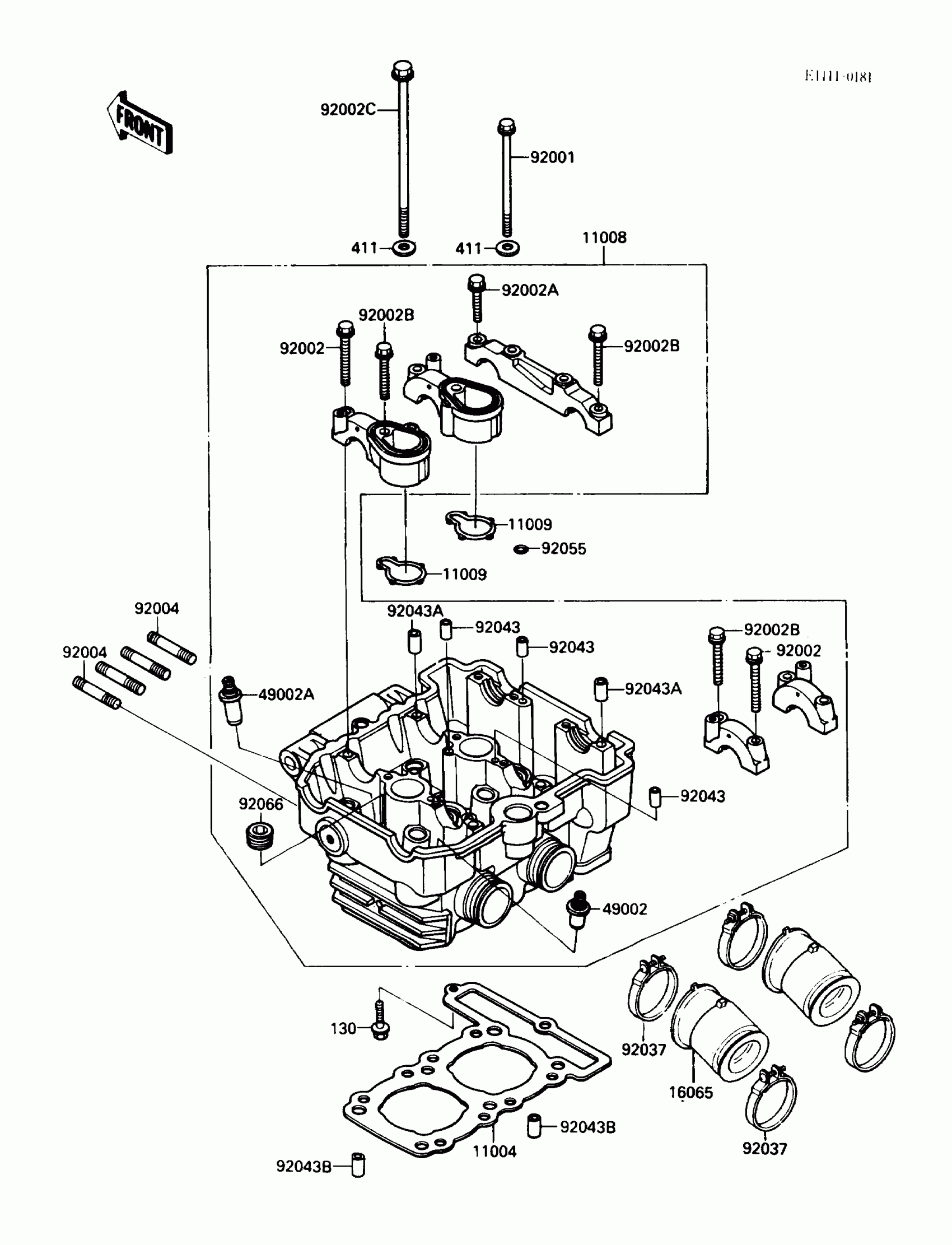

Find the part on the Cylinder Head diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Eliminator Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1143

1

$141.33

In stock

11008

HEAD-COMP-CYLINDER

11008-1177

1

$2,385.46

In stock

11008A

HEAD-COMP-CYLINDER

11008-1178

1
Out of stock

11009

GASKET,12.5X18X1.5

11009-1376

1

$1.56

In stock

16065

HOLDER-CARBURETOR

16065-1134

1
Out of stock

32033

PIPE,CYLINDER HEAD

32102-1423

1

$43.71

In stock

32033A

PIPE,OIL PAN-HEAD

32033-1850

1

$115.69

In stock

49002

GUIDE-VALVE

49002-1052

1

$38.92

In stock

92002

BOLT,BANJO,12X23

92001-1871

1

$16.05

In stock

92002A

BOLT,6X46

92001-1872

1

$3.43

In stock

92002B

UNAVAILABLE IN PRICE BOOK

9200Y-1886

1
Out of stock

92002C

BOLT,11X164

92002-1486

1

$18.51

In stock

92004

STUD,10X158

92004-1116

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1

$3.88

In stock

92022A

1

$3.43

In stock

92037

CLAMP,ID=53,BLACK

92037-1304

1

$8.16

In stock

92037A

CLAMP

92037-1523

1

$9.78

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,11.7MM

92055-1265

1

$8.35

In stock

92066

PLUG,PT1/8X7

92066-1201

1

$5.32

In stock

120

BOLT-SOCKET,6X10

120S0610

1
Out of stock

130

BOLT-FLANGED,6X30

130G0630

1
Out of stock

130A

BOLT-FLANGED,6X25

130J0625

1
Out of stock
