1989 Kawasaki Eliminator Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1989 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

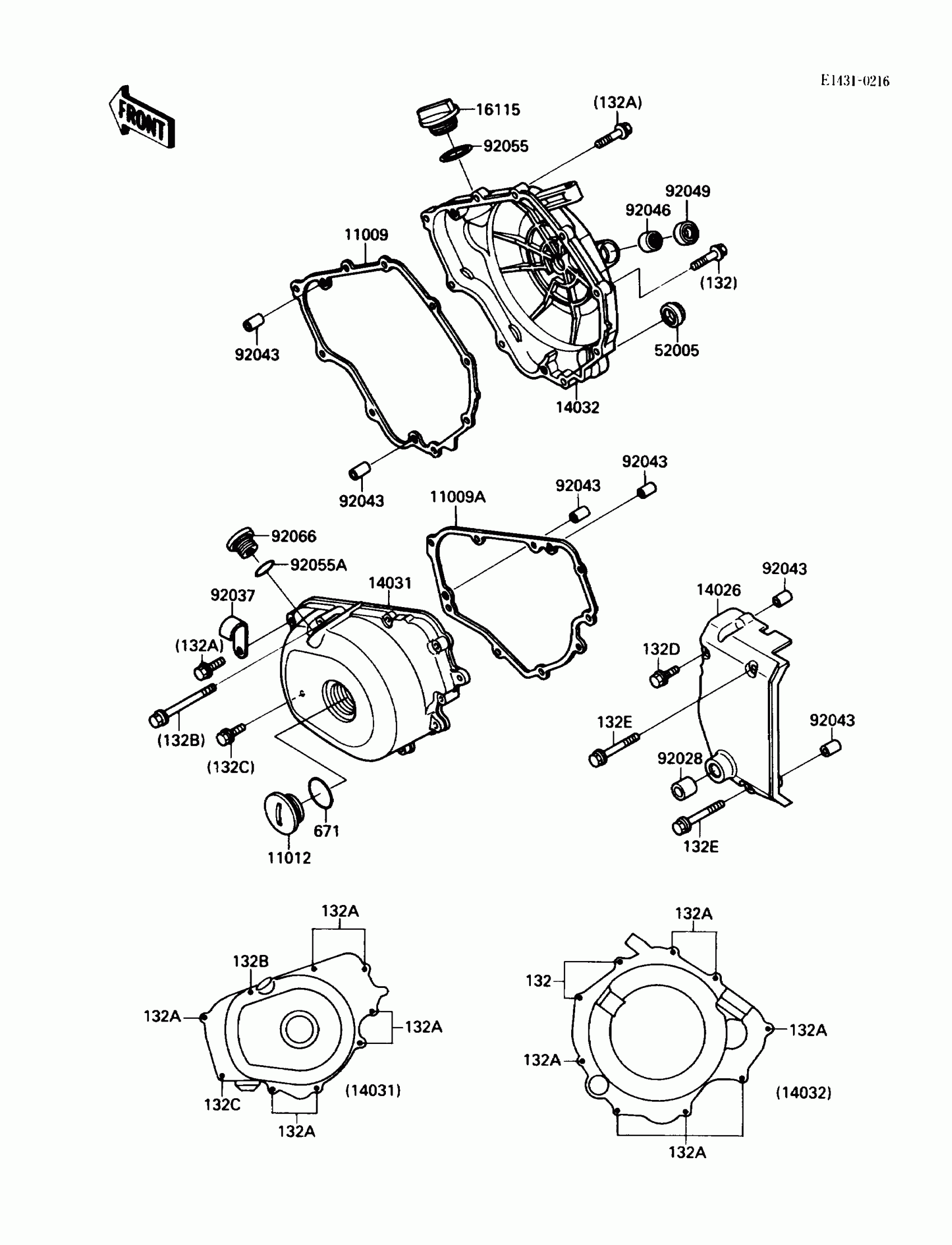

1989 Kawasaki Eliminator Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CLUTCH COVER

11009-1569

1
Out of stock

11009A

GASKET,GENERATOR COVER

11009-1570

1
Out of stock

11012

CAP

11012-1616

1
Out of stock

14026

COVER-CHAIN

14026-1132

1
Out of stock

14031

COVER-GENERATOR

14031-1224

1
Out of stock

14032

COVER-CLUTCH

14032-1239

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92028

BUSHING

92028-1347

1

$6.75

In stock

92037

CLAMP

92037-1877

1

$5.71

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,20X2

92055-1146

1

$6.82

In stock

92066

PLUG,COVER,LH

92066-1218

1

$14.00

In stock

132

BOLT-FLANGED-SMALL,6X25

132E0625

1
Out of stock

132A

1

$5.42

In stock

132B

BOLT-FLANGED-SMALL

132E0675

1
Out of stock

132C

BOLT-FLANGED-SMALL

132W0630

1
Out of stock

132D

BOLT-FLANGED-SMALL

132W0620

1
Out of stock

132E

BOLT-FLANGED-SMALL

132W0645

1
Out of stock

671

O RING,40MM

671B2540

1

$4.93

In stock
