2025 Kawasaki Eliminator ABS Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

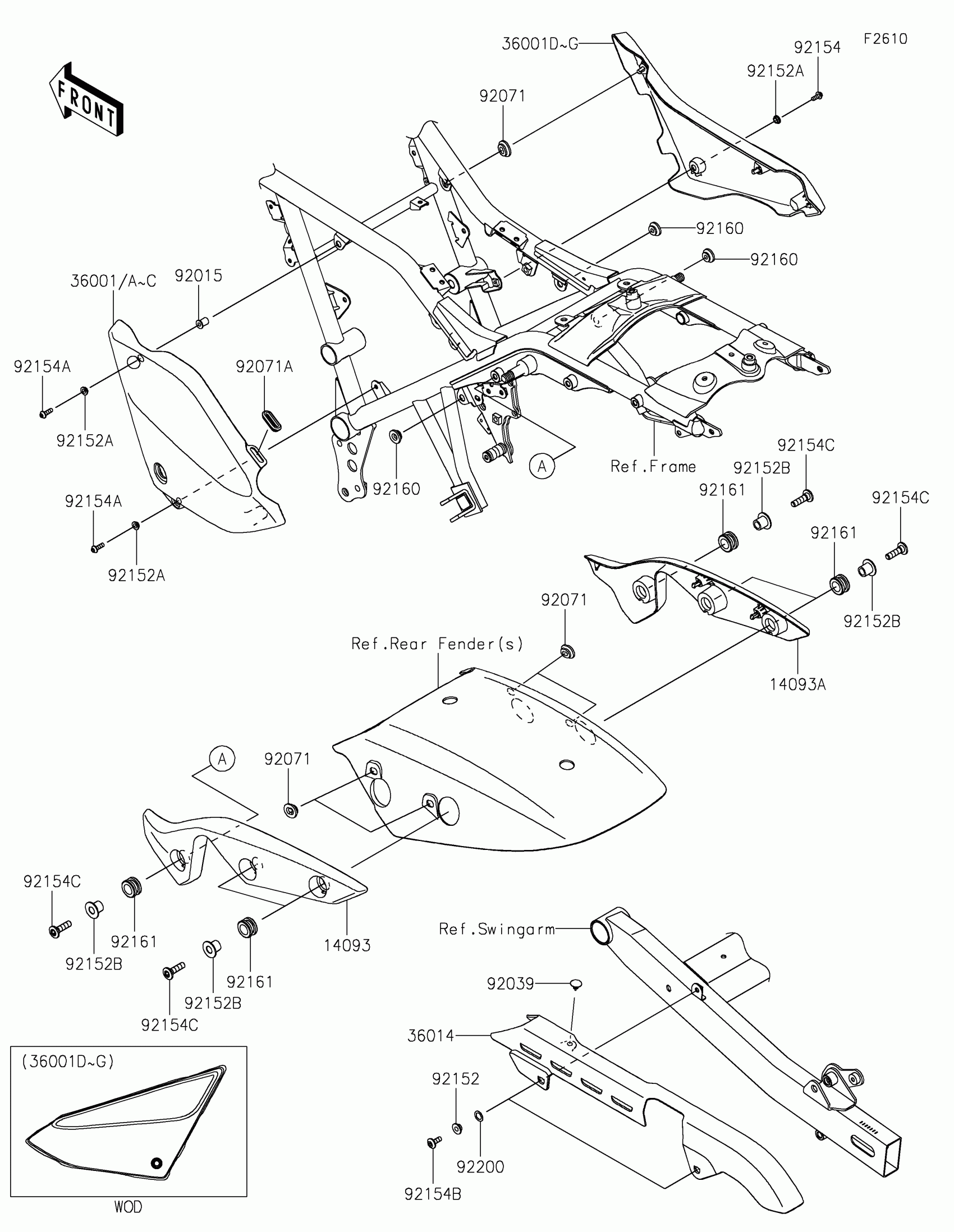

2025 Kawasaki Eliminator ABS Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,TAIL,LH,F.S.BLACK

14093-1301-18T

1
Out of stock

14093A

COVER,TAIL,RH,F.S.BLACK

14093-1302-18T

1
Out of stock

36001

COVER-SIDE,LH,P.S.GRAY

36001-0765-36S

1
Out of stock

36001A

COVER-SIDE,LH,P.S.KHAKI

36001-0765-63F

1
Out of stock

36001B

COVER-SIDE,LH,P.R.WHITE

36001-0765-68N

1
Out of stock

36001C

COVER-SIDE,LH,M.F.S.BLACK

36001-0765-739

1
Out of stock

36001D

COVER-SIDE,RH,P.S.GRAY

36001-0766-36S

1
Out of stock

36001E

COVER-SIDE,RH,P.S.KHAKI

36001-0766-63F

1
Out of stock

36001F

COVER-SIDE,RH,P.R.WHITE

36001-0766-68N

1
Out of stock

36001G

COVER-SIDE,RH,M.F.S.BLACK

36001-0766-739

1
Out of stock

36014

CASE-CHAIN

36014-0577

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92039

RIVET

92039-0722

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92071A

GROMMET

92071-1187

1
Out of stock

92152

COLLAR,6.5X10X5.9

92152-2486

1
Out of stock

92152A

COLLAR

92152-2903

1
Out of stock

92152B

COLLAR

92152-2950

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-1421

1
Out of stock

92154A

BOLT,SOCKET,5X16

92154-4294

1
Out of stock

92154B

BOLT,SOCKET,6X16

92154-4370

1
Out of stock

92154C

BOLT,8X30

92154-7174

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,15.5X26X14.5

92161-1361

1
Out of stock

92200

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock
