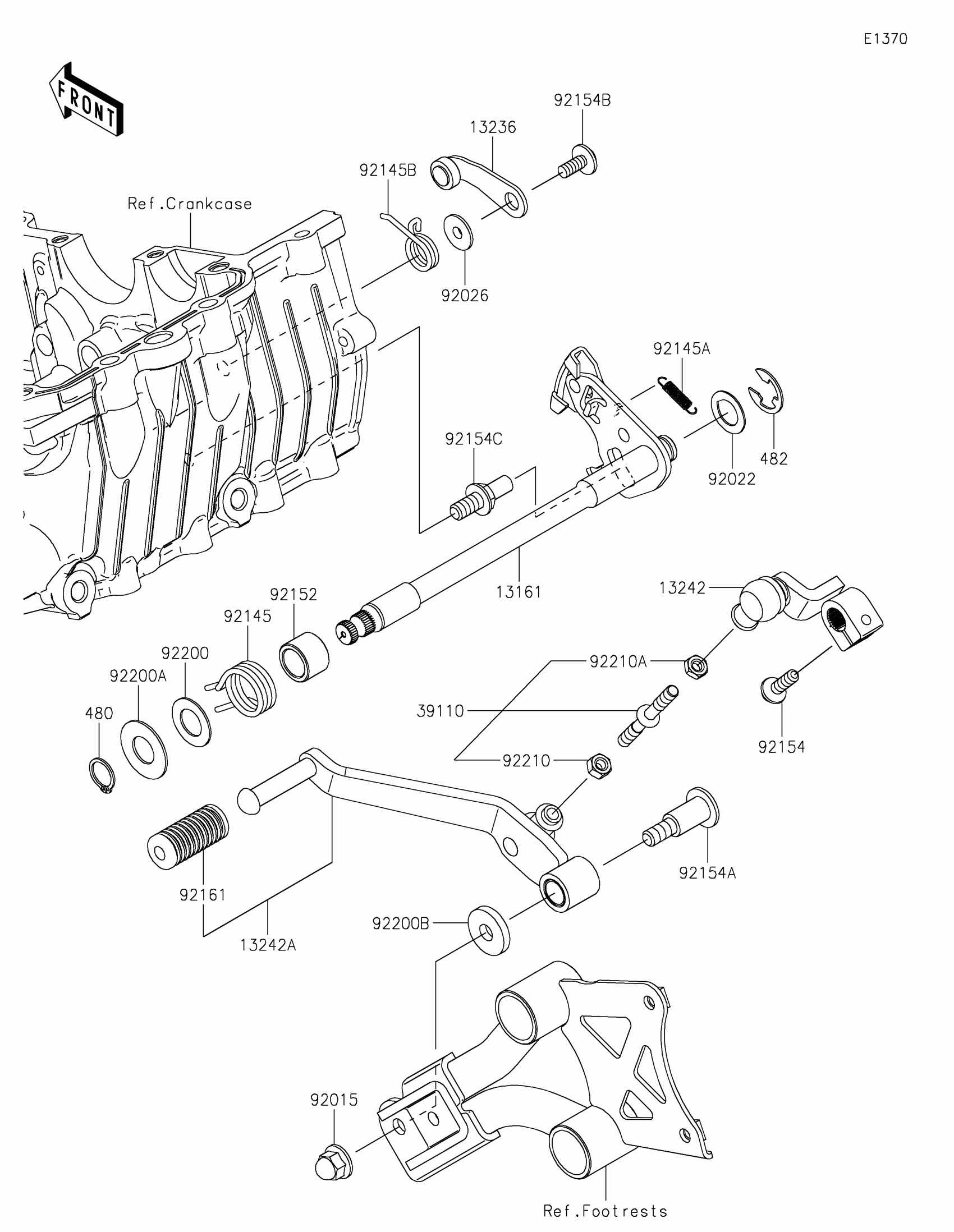

Kawasaki Eliminator ABS Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0610

$93.54

13236

LEVER-COMP,POSITION

13236-0794

$10.00

13242

LEVER-ASSY-CHANGE

13242-0253

$35.15

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-0254

$54.07

39110

ROD-ASSY-TIE

39110-0311

$9.49

92015

NUT,CAP,8MM

92015-1982

$4.42

92022

WASHER,CHANGE SHAFT

92022-1628

$5.71

92026

SPACER

92026-1217

$4.18

92145

SPRING,RETURN

92145-1783

$2.19

92145A

SPRING,PAWL RETURN

92145-1813

$0.88

92145B

SPRING,DRUM POSITION

92145-1814

$0.88

92152

COLLAR,14.2X19.9X14.3

92152-2370

$4.08

92154

BOLT,SOCKET,6X20

92154-1499

Unavailable

92154A

BOLT

92154-2730

$6.85

92154B

BOLT,SOCKET,6X14

92154-2731

$1.81

92154C

BOLT,RETURN SPRING

92154-4400

$2.71

92161

DAMPER,CHANGE PEDAL

92161-1466

$2.31

92200

WASHER,14.2X25X1

92200-1933

$0.69

92200A

WASHER,14.3X30X1.2

92200-2295

$2.12

92200B

WASHER,8.5X24X4.0

92200-2570

$3.49

92210

NUT,6MM

92210-1596

$1.93

92210A

NUT,LEFT HANDED,6MM

92210-1597

$2.44

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53
