2025 Kawasaki Eliminator ABS Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

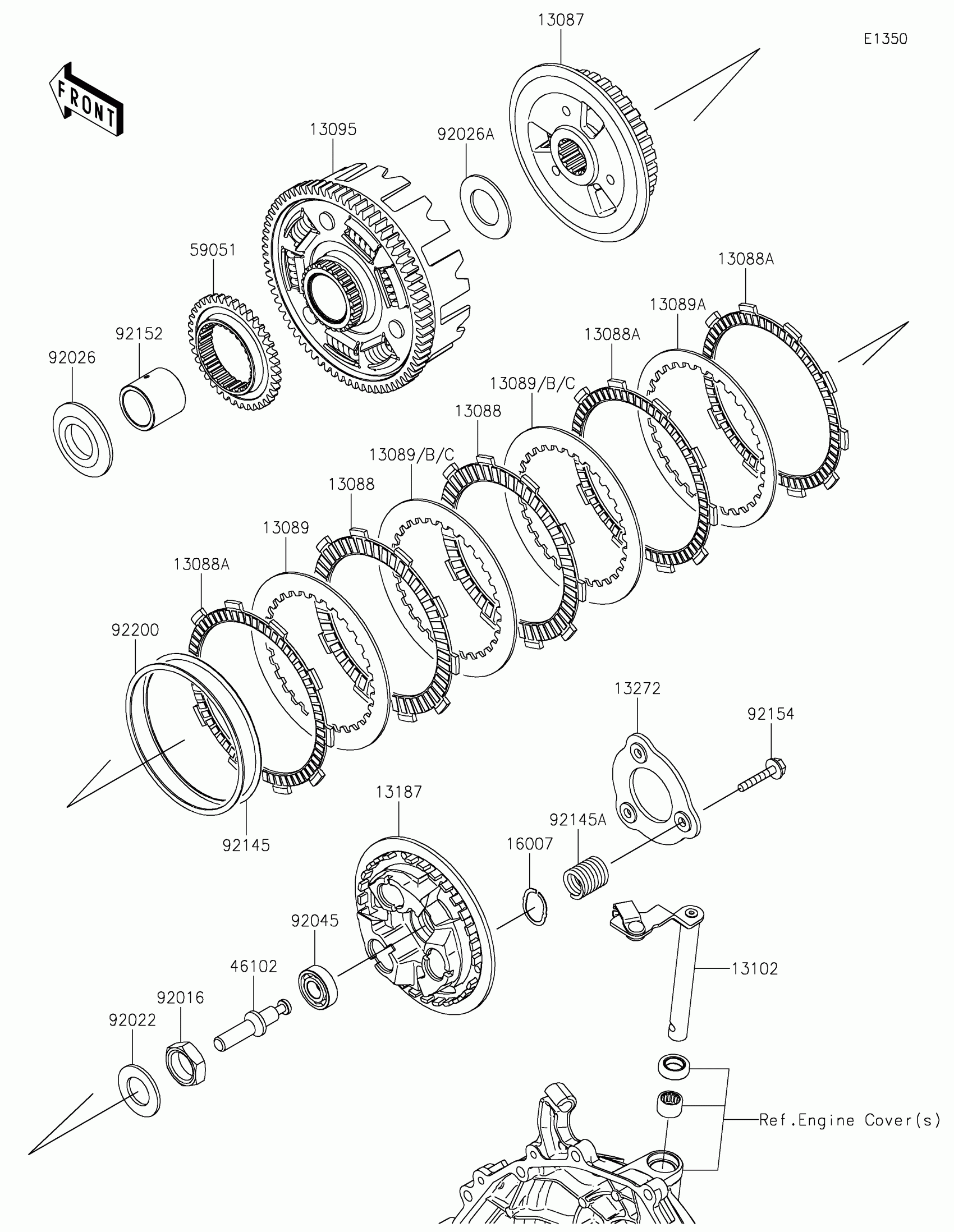

2025 Kawasaki Eliminator ABS Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0585

1
Out of stock

13088

PLATE-FRICTION

13088-0592

1
Out of stock

13088A

PLATE-FRICTION

13088-0630

1
Out of stock

13089

PLATE-CLUTCH,T=2.0

13089-0041

1
Out of stock

13089A

PLATE-CLUTCH,T=2.0

13089-0042

1
Out of stock

13089B

PLATE-CLUTCH,T=1.6

13089-0043

—
Out of stock

13089C

PLATE-CLUTCH,T=2.3

13089-0044

—
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0618

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-0087

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-0033

1
Out of stock

13272

PLATE

13272-2414

1
Out of stock

16007

SEAT-SPRING

16007-0711

1
Out of stock

46102

ROD

46102-0648

1
Out of stock

59051

GEAR-SPUR,OIL PUMP,38T

59051-0796

1
Out of stock

92016

NUT,20MM

92016-028

1
Out of stock

92022

WASHER,20.3X36X2.3

92022-1116

1
Out of stock

92026

SPACER,25X52X5.5

92026-0115

1
Out of stock

92026A

SPACER,25.5X44.5X2

92026-0734

1
Out of stock

92045

BEARING-BALL

92045-0937

1
Out of stock

92145

SPRING,JUDDER

92145-1829

1
Out of stock

92145A

SPRING

92145-2273

1
Out of stock

92152

COLLAR,25X32X29.1

92152-2524

1
Out of stock

92154

BOLT,UPSET,6X30

92154-0997

1
Out of stock

92200

WASHER,99.4X107X1.2

92200-1987

1
Out of stock
