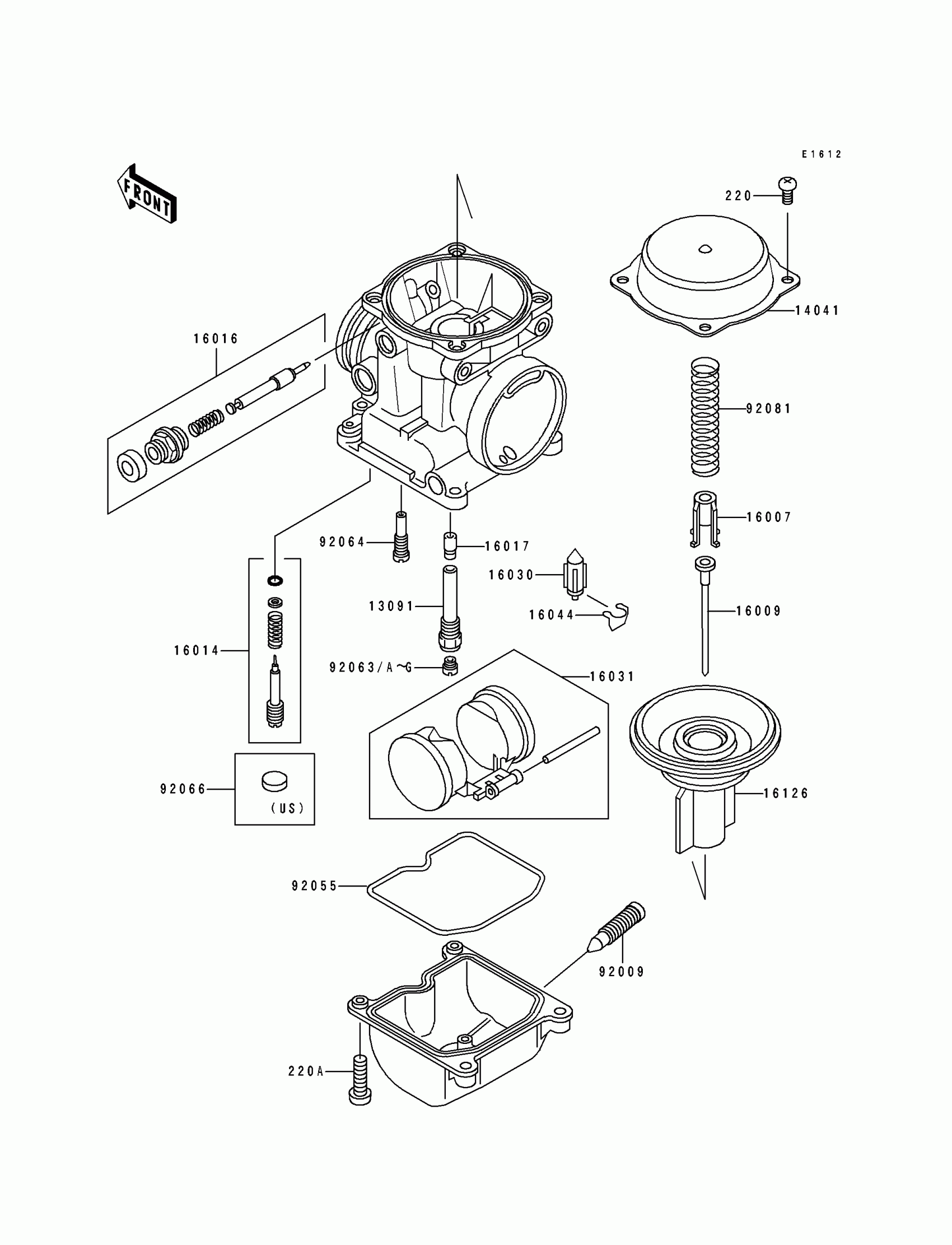

Kawasaki Eliminator 600 Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1406

$34.01

14041

TOP-CHAMBER

14041-1076

$97.80

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$21.24

16009

NEEDLE-JET,N27X

16009-1309

Unavailable

16014

SCREW-PILOT AIR

16014-1081

$19.94

16016

PLUNGER

16016-1092

$60.49

16017

JET-NEEDLE

16017-1314

Unavailable

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1077

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1159

$204.09

92009

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92055

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92063

JET-MAIN,#95

92063-1001

$14.59

92063A

JET-MAIN,#90

92063-1003

$11.23

92063B

JET-MAIN,#90

92063-1003

$11.23

92063C

JET-MAIN,#92

92063-1004

$11.72

92063D

JET-MAIN,#92

92063-1004

$11.72

92063E

JET-MAIN,#98

92063-1005

$14.59

92063F

JET-MAIN,#85

92063-1023

Unavailable

92063G

JET-MAIN,#88

92063-1024

$14.90

92064

JET-PILOT,#35

92064-1101

$12.84

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92081

SPRING,VACUUM VALVE

92081-1775

$24.85

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS,4X14

220D0414

$3.51
