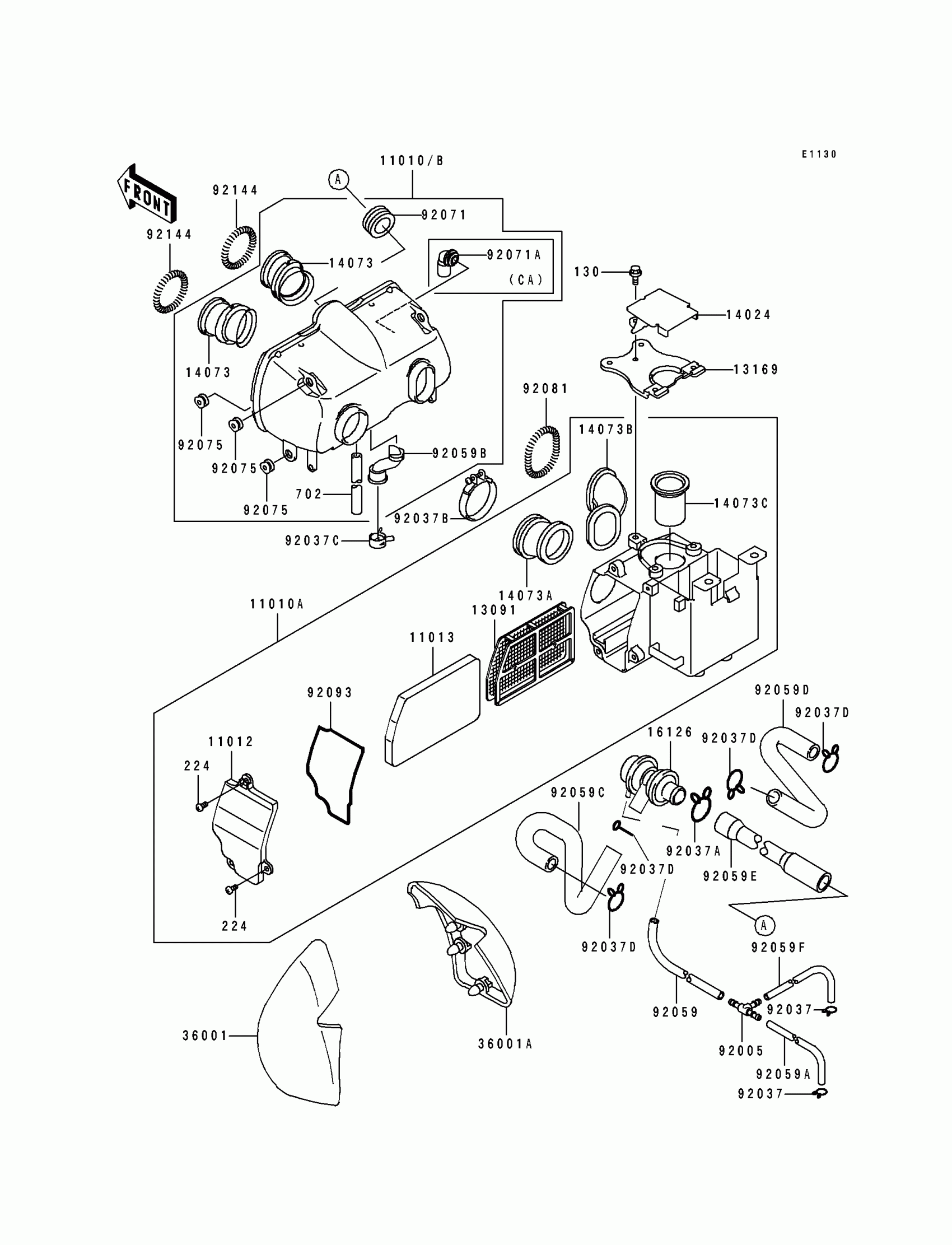

Kawasaki Eliminator 600 Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR,FR

11010-1544

Unavailable

11010A

FILTER-ASSY-AIR,RR

11010-1556

Unavailable

11010B

FILTER-ASSY-AIR,FR

11010-1558

Unavailable

11012

CAP,AIR FILTER ELEMENT

11012-1503

Unavailable

11013

ELEMENT-AIR FILTER

11013-1139

$9.07

13091

HOLDER,AIR FILTER ELEMENT

13091-1870

Unavailable

13169

PLATE,IGNITION COIL

13169-1664

Unavailable

14024

COVER,AIR INTAKE

14024-1215

Unavailable

14073

DUCT,CARBURETOR

14073-1211

$32.75

14073A

DUCT,LH

14073-1249

Unavailable

14073B

DUCT,RH

14073-1250

Unavailable

14073C

DUCT,AIR INTAKE

14073-1251

Unavailable

16126

VALVE,AIR SWITCH

16126-1005

$195.68

36001

COVER-SIDE,AIR FILTER,LH

36001-1326

$91.66

36001A

COVER-SIDE,AIR FILTER,RH

36001-1327

$91.66

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP,TUBE

92037-072

$5.51

92037A

CLAMP,TUBE

92037-1076

$7.14

92037B

CLAMP

92037-1554

$10.32

92037C

CLAMP

92037-1730

$8.39

92037D

CLAMP,TUBE

92037-213

$3.29

92059

TUBE,4X9X220

92059-1040

$9.85

92059A

TUBE,4X9X80

92059-1365

$12.97

92059B

TUBE,BREATHER

92059-1545

Unavailable

92059C

TUBE,AIR SWITCH VALVE,LH

92059-1674

Unavailable

92059D

TUBE,AIR SWITCH VALVE,RH

92059-1675

Unavailable

92059E

TUBE,AIR SWITCH-AIR FILTER

92059-1684

Unavailable

92059F

TUBE,4X9X260

92059-1712

$14.40

92071

GROMMET,AIR FILTER

92071-1013

$5.61

92071A

GROMMET,AIR FILTER

92071-1114

$23.73

92075

DAMPER

92075-1470

$7.31

92081

SPRING,COIL

92081-1177

$7.57

92093

SEAL,AIR FILTER CAP

92093-1212

$8.78

92144

SPRING,AIR FILTER DUCT

92144-1771

$9.84

130

BOLT-FLANGED,6X10

130B0610

Unavailable

224

SCREW-PAN-WP-CROS

224B0612

Unavailable

702

TUBE-RUBBER

702A05200

$29.70
