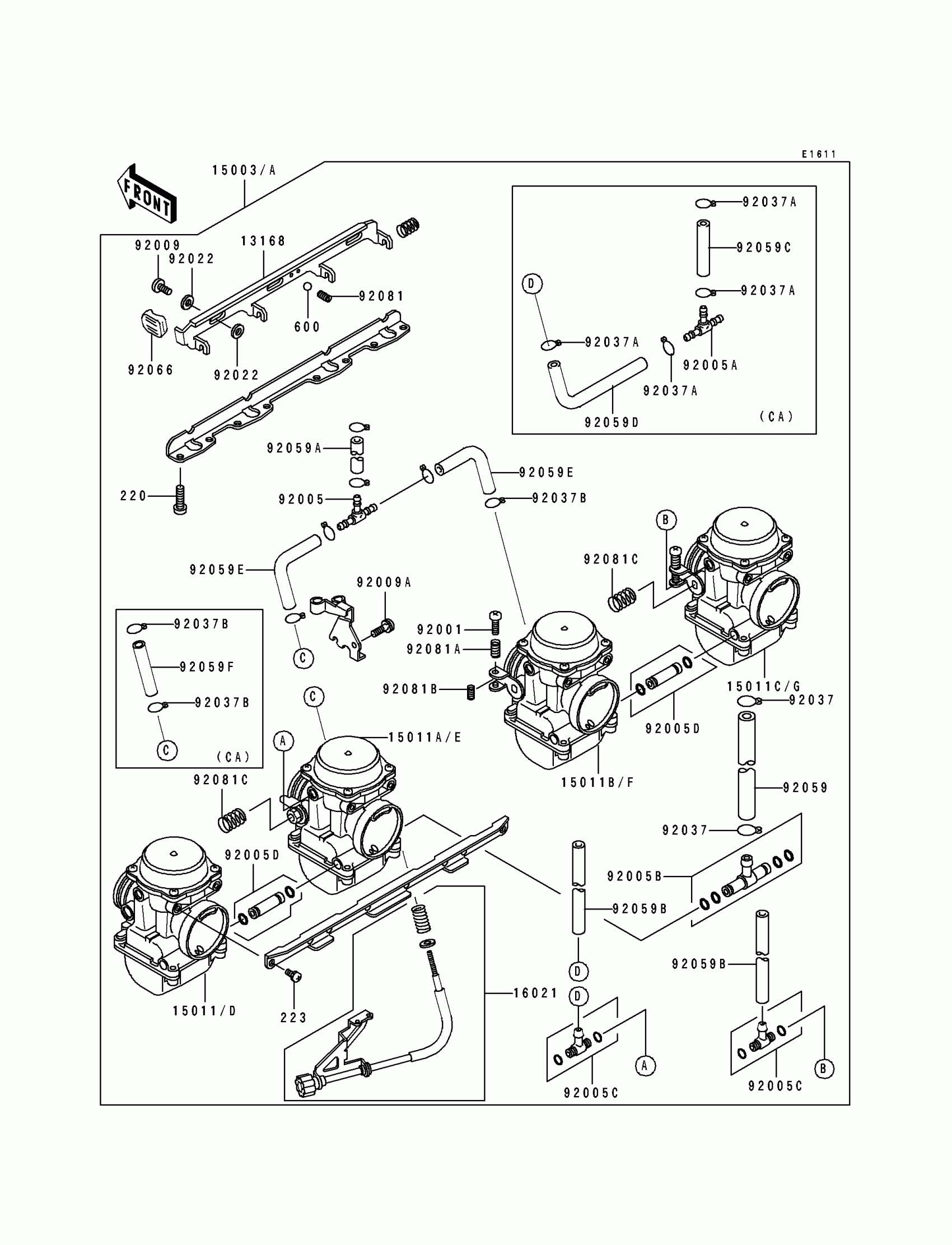

Kawasaki Eliminator 600 Carburetor Diagram

#

Description
Price

13168

LEVER,STARTER

13168-1434

Unavailable

15003

CARBURETOR-ASSY

15003-1205

$1,727.00

15003A

CARBURETOR-ASSY

15003-1206

$1,727.00

15011

CARBURETOR,LH,OUTSIDE

15011-1105

$545.84

15011A

CARBURETOR,LH,INSIDE

15011-1106

$545.84

15011B

CARBURETOR,RH,INSIDE

15011-1107

$545.84

15011C

CARBURETOR,RH,OUTSIDE

15011-1108

$545.84

15011D

CARBURETOR,LH,OUTSIDE

15011-1113

$545.84

15011E

CARBURETOR,LH,INSIDE

15011-1114

$545.84

15011F

CARBURETOR,RH,INSIDE

15011-1115

Unavailable

15011G

CARBURETOR,RH,OUTSIDE

15011-1116

$545.84

16021

SCREW-THROTTLE STOP

16021-1179

$106.51

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92005

FITTING,FUEL,T-TYPE

92005-1112

$10.71

92005A

FITTING,T-TYPE

92005-1119

$23.15

92005B

FITTING

92005-1288

$31.60

92005C

FITTING

92005-1306

$22.08

92005D

FITTING

92005-1310

$30.97

92009

SCREW

92009-1262

$5.25

92009A

SCREW,5X10

92009-1365

$5.61

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$3.67

92037

CLAMP,FUEL TUBE

92037-1075

$3.03

92037A

CLAMP,TUBE

92037-1194

$4.64

92037B

CLAMP,TUBE

92037-1477

$3.29

92037B

CLAMP,TUBE

92037-1477

$3.29

92059

TUBE,FUEL,7.3X12.5X200

92059-1029

$31.15

92059A

TUBE,5X9X200

92059-1173

$24.51

92059B

TUBE,6.5X9.5X290

92059-1376

$34.01

92059C

TUBE,7X11X100

92059-1476

Unavailable

92059D

TUBE,7X11X260

92059-1613

$21.94

92059E

TUBE,5X9X90

92059-1627

$10.93

92059F

TUBE,5X9X120

92059-1721

$24.51

92066

PLUG,STARTER LEVER

92066-1157

$17.44

92081

SPRING,SHAFT STOP

92081-1619

$7.44

92081A

SPRING

92081-1620

$3.78

92081B

SPRING,THROTTLE ADJUST LWR

92081-1621

$3.95

92081C

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.27

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

223

SCREW-PAN-WS-CROS,5X10

223C0510

$3.14

600

BALL-STEEL,3/16

600A0600

$1.02
