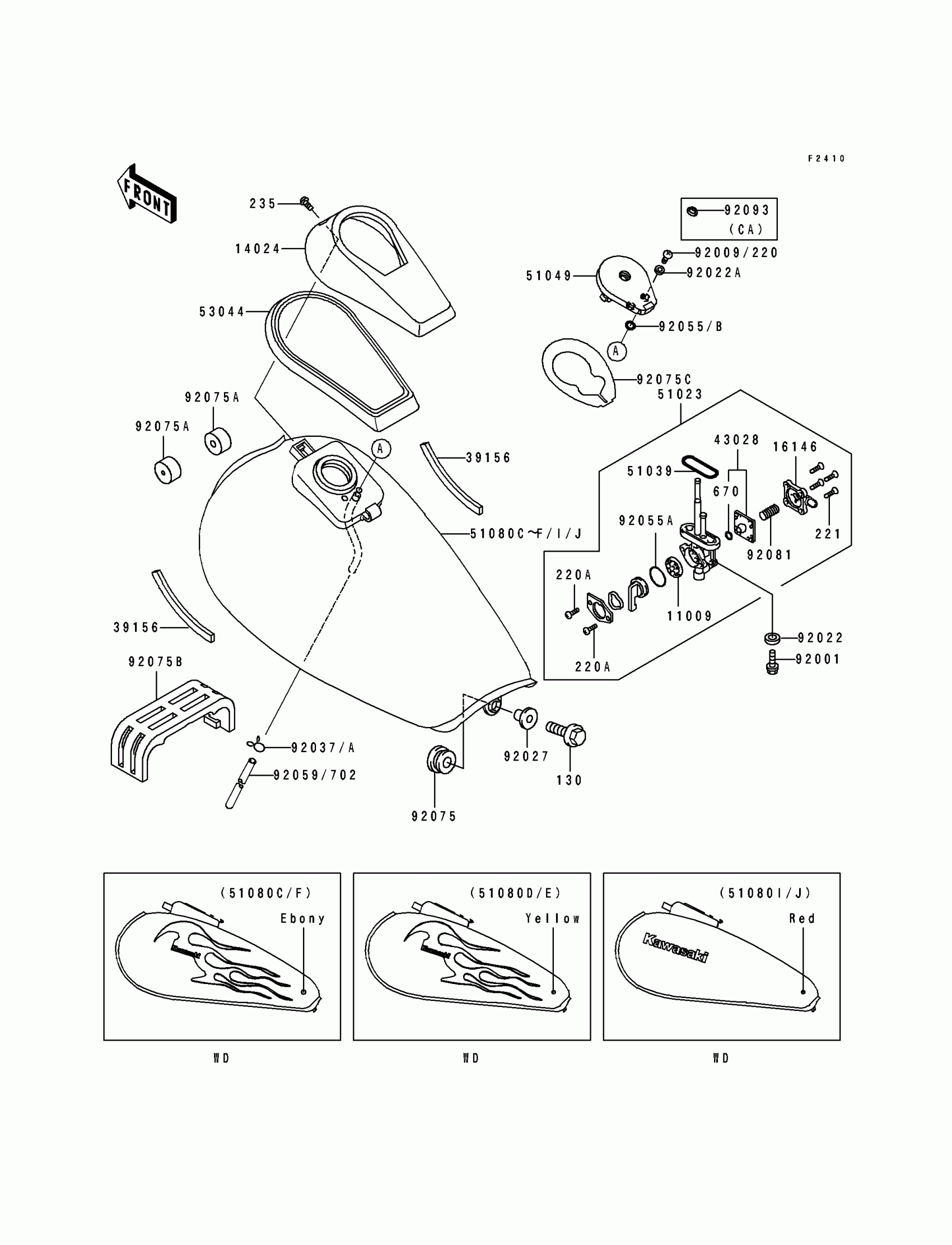

Kawasaki Eliminator 600 Fuel Tank Diagram

#

Description
Price

11009

GASKET,TAP VALVE

11009-1188

$4.33

14024

COVER,FUEL TANK CAP,EBONY

14024-1522-H8

Unavailable

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$23.78

39156

PAD,FUEL TANK

39156-1425

Unavailable

43028

DIAPHRAGM,TAP

43028-1021

$27.04

51023

TAP-ASSY,FUEL

51023-1157

Unavailable

51039

RING,TAP FLANGED

51039-003

$4.71

51049

CAP-TANK,FUEL

51049-1088

$112.77

51080I

TANK-COMP-FUEL,F.RED

51080-5330-B1

Unavailable

51080J

TANK-COMP-FUEL,F.RED

51080-5331-B1

Unavailable

53044

TRIM,FUEL TANK CAP COVER

53044-1197

Unavailable

92001

BOLT,6X20

92001-1091

$2.99

92009

SCREW,5X10

92009-1760

Unavailable

92022

WASHER-PLAIN

92022-183

$2.99

92022A

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=14.1

92027-1920

$5.12

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,TUBE

92037-147

$5.61

92055

RING-O

92055-1023

$2.99

92055A

RING-O,TAP LEVER

92055-1085

$3.85

92055B

RING-O,ID=9

92055-1552

$2.41

92059

TUBE,5X10X770,RED

92059-1731

$23.54

92075

DAMPER

92075-1057

$3.74

92075A

DAMPER,FUEL TANK

92075-125

$4.67

92075B

DAMPER,FUEL TANK,CNT

92075-1848

Unavailable

92075C

DAMPER,FUEL TANK CAP

92075-1970

$8.37

92081

SPRING,TAP DIAPHRAGM

92081-1240

$2.97

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

130

BOLT-FLANGED,6X25

130B0625

Unavailable

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

220A

SCREW-PAN-CROS,3X8

220E0308

$4.10

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

235

SCREW-PAN-WP-CROS

235C0510

Unavailable

670

O RING,4MM

670B1504

$3.14

702

TUBE-RUBBER,6X9X750

702A06750

$20.58
