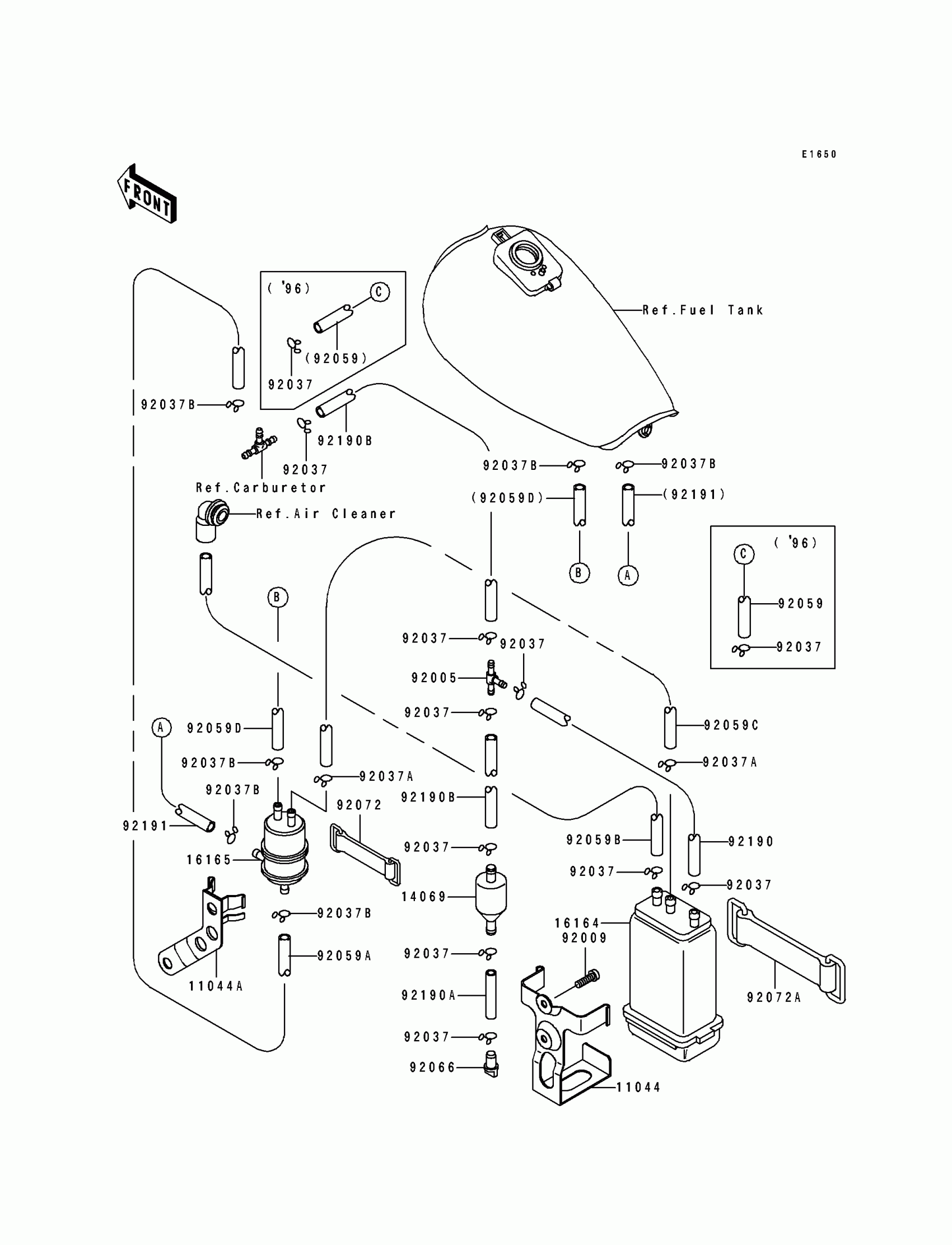

Kawasaki Eliminator 600 Fuel Evaporative System Diagram

Description

Price

11044

BRACKET,CANISTER

11044-1876

Unavailable

11044A

BRACKET,SEPARATOR

11044-1877

Unavailable

14069

BREATHER

14069-1051

$7.76

16164

CANISTER

16164-1052

$134.03

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING,T-TYPE

92005-1119

$23.15

92009

SCREW,TAPPING,6MM

92009-1261

$2.29

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP

92037-1712

$3.81

92059A

TUBE,4X9X640.WHITE

92059-1574

$14.40

92059B

TUBE,7X12X360,GREEN

92059-1710

$41.92

92059C

TUBE,5X10X430,BLUE

92059-1711

Unavailable

92059D

TUBE,5X9X890,BLUE

92059-1801

$32.75

92066

PLUG,DRAIN

92066-1211

$6.48

92072

BAND,L=50

92072-066

$12.21

92072A

BAND,L=100

92072-071

$9.24

92190

TUBE,7X12X260,GREEN

92190-1141

Unavailable

92190A

TUBE,7X12X45

92190-1200

Unavailable

92190B

TUBE,7X12X160

92190-1201

Unavailable

92191

TUBE,5X9X890,RED

92191-1073

$8.12
