1994 Kawasaki Eliminator 250 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 1994 Kawasaki Eliminator 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

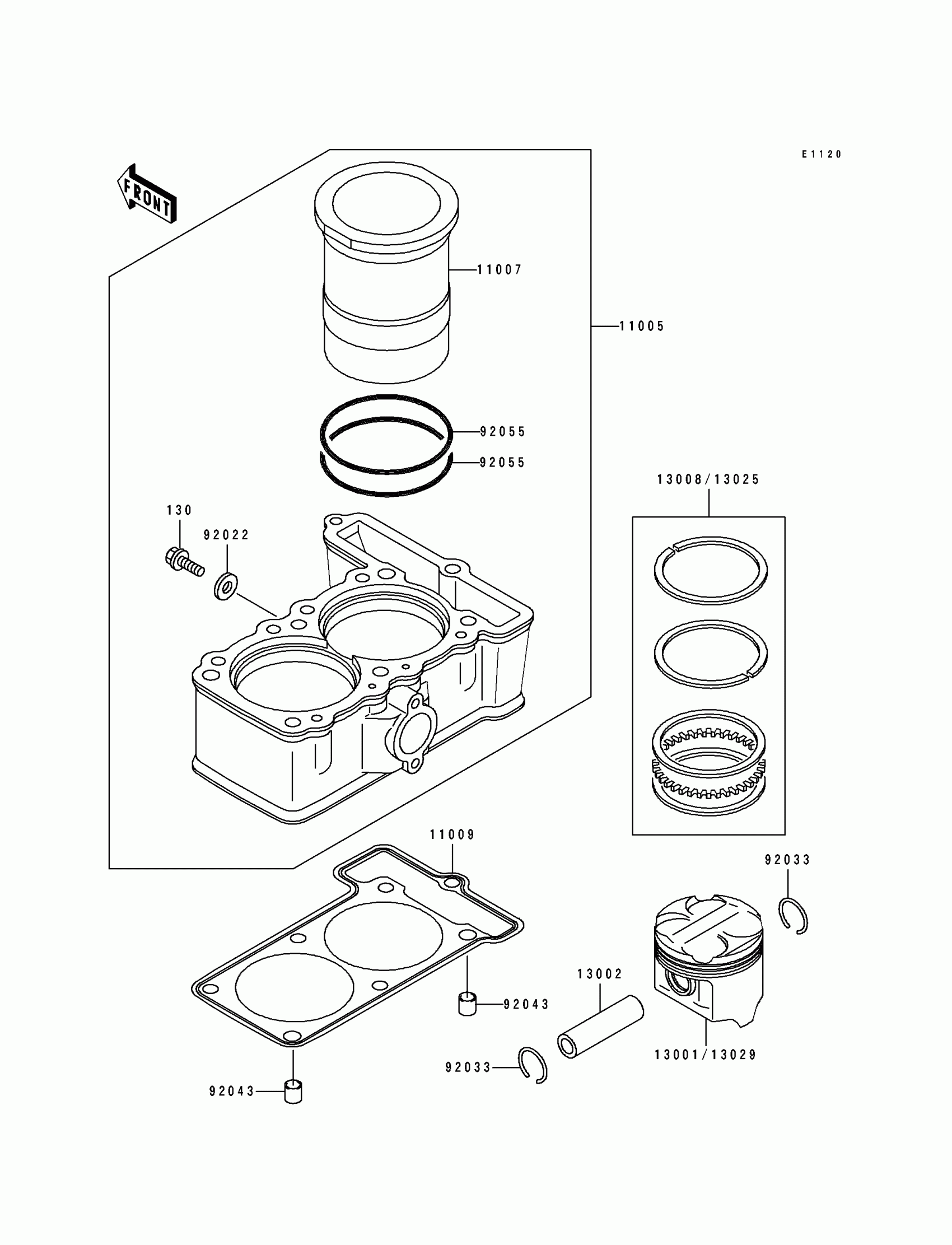

1994 Kawasaki Eliminator 250 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1623

1
Out of stock

11007

LINER-CYLINDER

11007-1111

1
Out of stock

11009

GASKET,CYLINDER BASE

11009-1572

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1325

1
Out of stock

13002

PIN-PISTON

13002-1097

1
Out of stock

13008

RING-SET-PISTON,STD

13008-1157

1
Out of stock

13025

RING-SET-PISTON L,O/S,0.50

13025-1120

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-1201

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92033

RING-SNAP,PISTON PIN

92033-1161

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,68.2X2.4

92055-1338

1
Out of stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock
