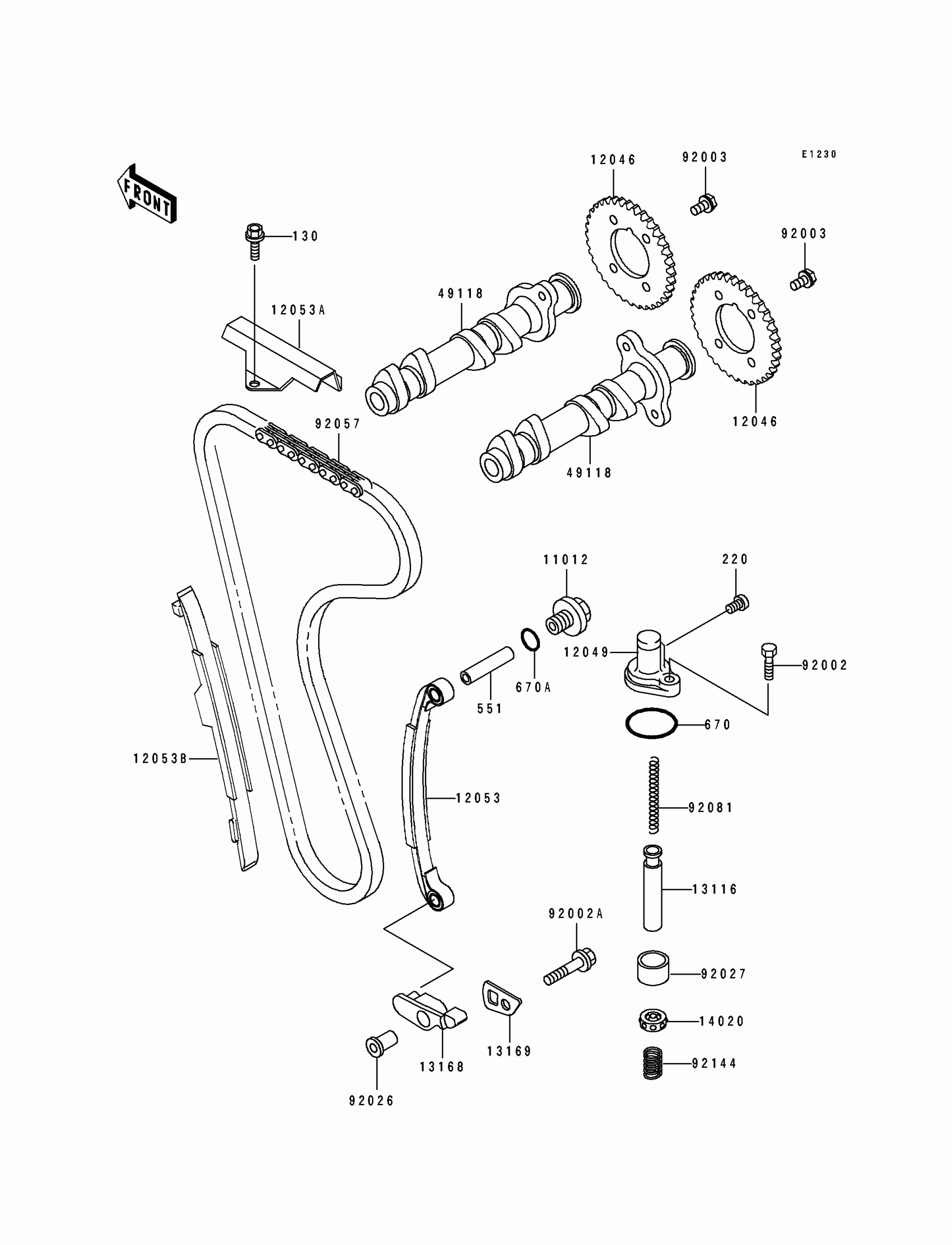

Kawasaki Eliminator 250 Camshaft(s)/Tensioner Diagram

Description

Price

11012

CAP,BOLT

11012-1677

Unavailable

12046

SPROCKET,CAMSHAFT,38T

12046-1085

$49.21

12049

TENSIONER

12049-1053

$35.72

12053

GUIDE-CHAIN,RR

12053-1191

Unavailable

12053A

GUIDE-CHAIN,UPP

12053-1192

$52.86

12053B

GUIDE-CHAIN,FR

12053-1205

$62.56

13116

ROD-PUSH,TENSIONER

13116-1138

$16.02

13168

LEVER,TENSIONER

13168-1313

$29.94

13169

PLATE,CHAIN GUIDE

13169-1661

$5.37

14020

RETAINER,TENSIONER

14020-1054

$18.34

49118

CAMSHAFT-COMP

49118-1054

$412.79

92002

BOLT,6X25

92002-1344

Unavailable

92002A

BOLT,8X35

92002-1824

$5.10

92003

BOLT,FLANGED,6X11

92003-208

$3.29

92026

SPACER

92026-1266

$8.80

92027

COLLAR,TENSIONER

92027-1240

Unavailable

92057

CHAIN,CAM,82RH2010-124L

92057-1210

$103.39

92081

SPRING,TENSIONER

92081-1984

$5.13

92144

SPRING,TENSIONER

92144-1274

$3.88

130

BOLT-FLANGED,6X14

130P0614

Unavailable

220

SCREW-PAN-CROSS

220C0508

Unavailable

551

PIN-DOWEL

551A0835

$4.17

670

O RING,21MM

670B2021

$3.57

670A

O RING,14MM

670D2014

$4.18
