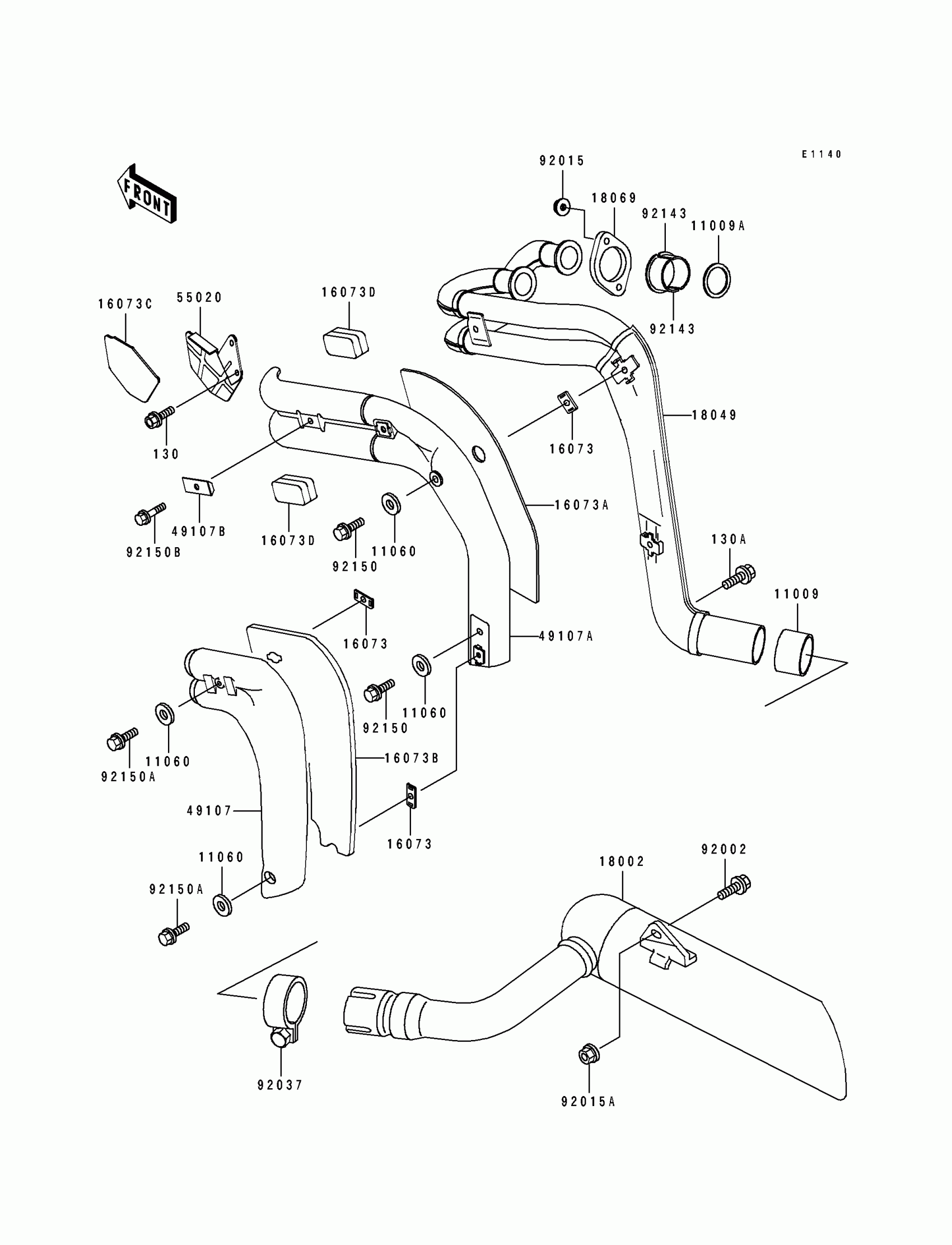

Kawasaki Eliminator 250 Muffler(s) Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$28.56

11009A

GASKET,EXHAUST PIPE H

11009-1866

$6.29

11060

GASKET,6.2X11.5X1.5

11060-1109

$3.49

16073

INSULATOR

16073-1065

$3.37

16073A

INSULATOR,RR,INNER

16073-1067

$26.10

16073B

INSULATOR,OUTER

16073-1068

$31.28

16073C

INSULATOR,GUARD

16073-1071

$10.63

16073D

INSULATOR,EXHAUST COVER

16073-1072

$3.64

18002

BODY-COMP-MUFFLER

18002-1798

Unavailable

18049

PIPE-EXHAUST

18049-1421

$429.04

18069

HOLDER-EXHAUST PIPE

18069-1076

$18.15

49107

COVER-EXHAUST PIPE

49107-1075

$82.05

49107A

COVER-EXHAUST PIPE

49107-1076

$95.37

49107B

COVER-EXHAUST PIPE

49107-1078

$5.07

55020

GUARD,HEAT

55020-1319

$12.44

92002

BOLT,FLANGED,10X25

92002-1828

$8.54

92015

NUT,6MM

92015-1365

$3.81

92015A

NUT,FLANGED,10MM

92015-1387

$3.29

92037

CLAMP,52MM

92037-1633

$25.63

92143

COLLAR,EXHAUST PIPE

92143-1006

$5.78

92150

BOLT,6X14

92150-1055

$3.49

92150A

BOLT,6X16

92150-1059

$3.49

92150B

BOLT,6X22

92150-1099

$3.69

130

BOLT-FLANGED

130J0508

Unavailable

130A

BOLT-FLANGED,8X12

130J0812

Unavailable
