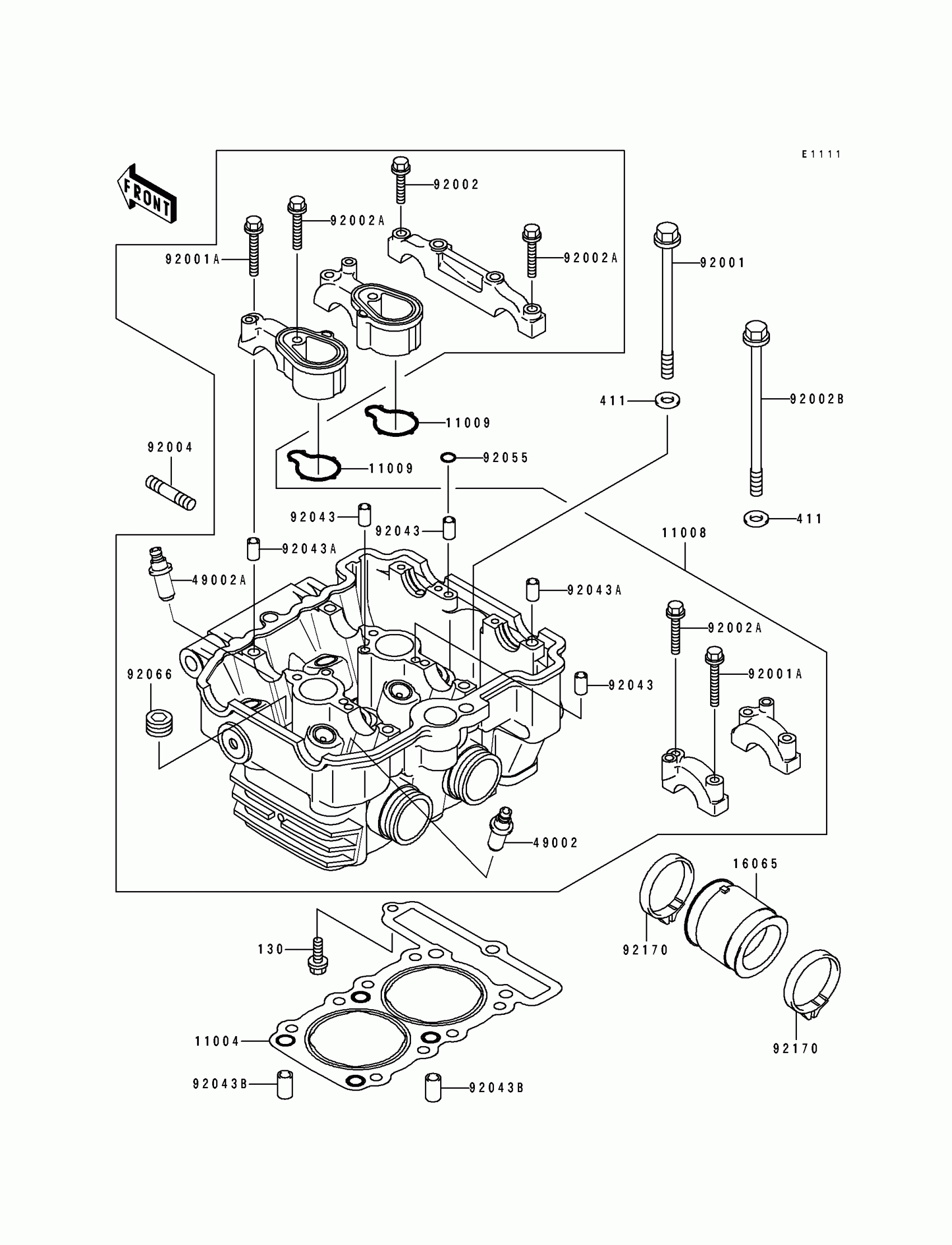

Kawasaki Eliminator 250 Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-1207

Unavailable

11008

HEAD-COMP-CYLINDER

11008-1201

$1,613.28

11009

GASKET,CAMSHAFT BRACKET

11009-1573

$6.65

16065

HOLDER-CARBURETOR

16065-1158

$35.95

49002

GUIDE-VALVE,INTAKE

49002-1070

$40.67

49002A

GUIDE-VALVE,EXHAUST

49002-1071

$40.67

92001

BOLT,8X115

92001-1481

$11.86

92001A

BOLT,6X46

92001-1872

$3.29

92002

BOLT,6X30

92002-1755

$4.41

92002A

BOLT,6X40

92002-1756

$3.57

92002B

BOLT,8X146

92002-1832

Unavailable

92004

STUD,6X22

92004-059

$4.93

92043

PIN,4.2X6X12

92043-1262

$3.29

92043A

PIN,6.2X8X14

92043-1263

$0.46

92043B

PIN,8.2X10X14

92043-1264

$0.51

92055

RING-O,5.5X1.5

92055-1339

$3.85

92066

PLUG,PT1/2X12.5

92066-1253

$6.85

92170

CLAMP

92170-1438

$6.85

130

BOLT-FLANGED,6X25

130J0625

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable
