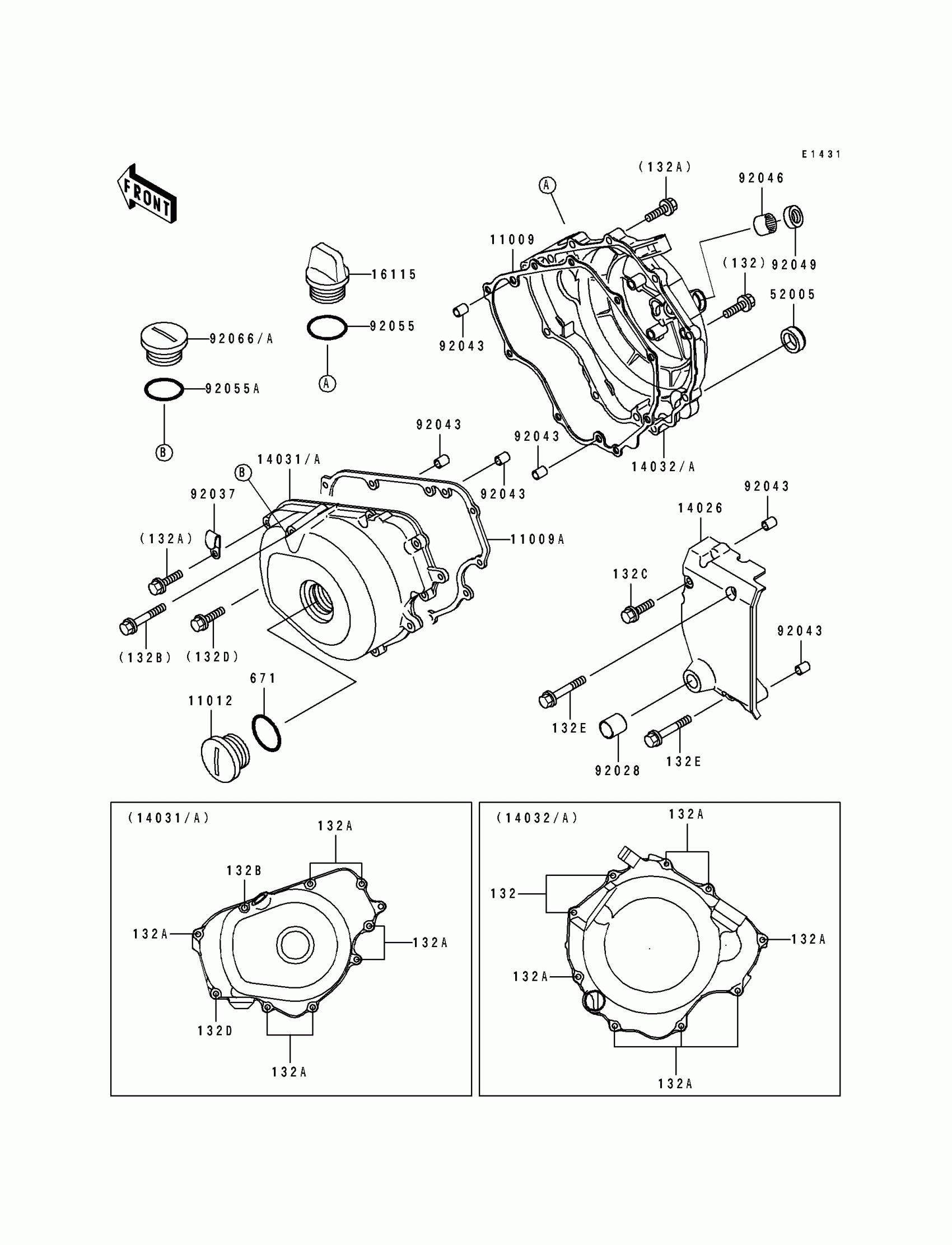

Kawasaki Eliminator 250 Engine Cover(s) Diagram

Description

Price

11009

GASKET,CLUTCH COVER

11009-1872

$21.83

11009A

GASKET,GENERATOR COVER

11009-1873

Unavailable

11012

CAP

11012-1616

Unavailable

14026

COVER-CHAIN

14026-1132

Unavailable

14031A

COVER-GENERATOR

14031-1288

Unavailable

14032A

COVER-CLUTCH

14032-1366

$166.75

16115

CAP-OIL FILLER

16115-1009

$10.86

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92028

BUSHING

92028-1710

$8.31

92037

CLAMP

92037-1877

$5.71

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$7.08

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,20X2

92055-1146

$6.55

92066A

PLUG,COVER

92066-1397

$14.00

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42

132B

BOLT-FLANGED-SMALL

132E0675

Unavailable

132C

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132D

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132E

BOLT-FLANGED-SMALL

132J0645

Unavailable

671

O RING,40MM

671B2540

$4.67
