2012 Kawasaki Edge R Tires Diagram

← All diagrams

Find the part on the Tires diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

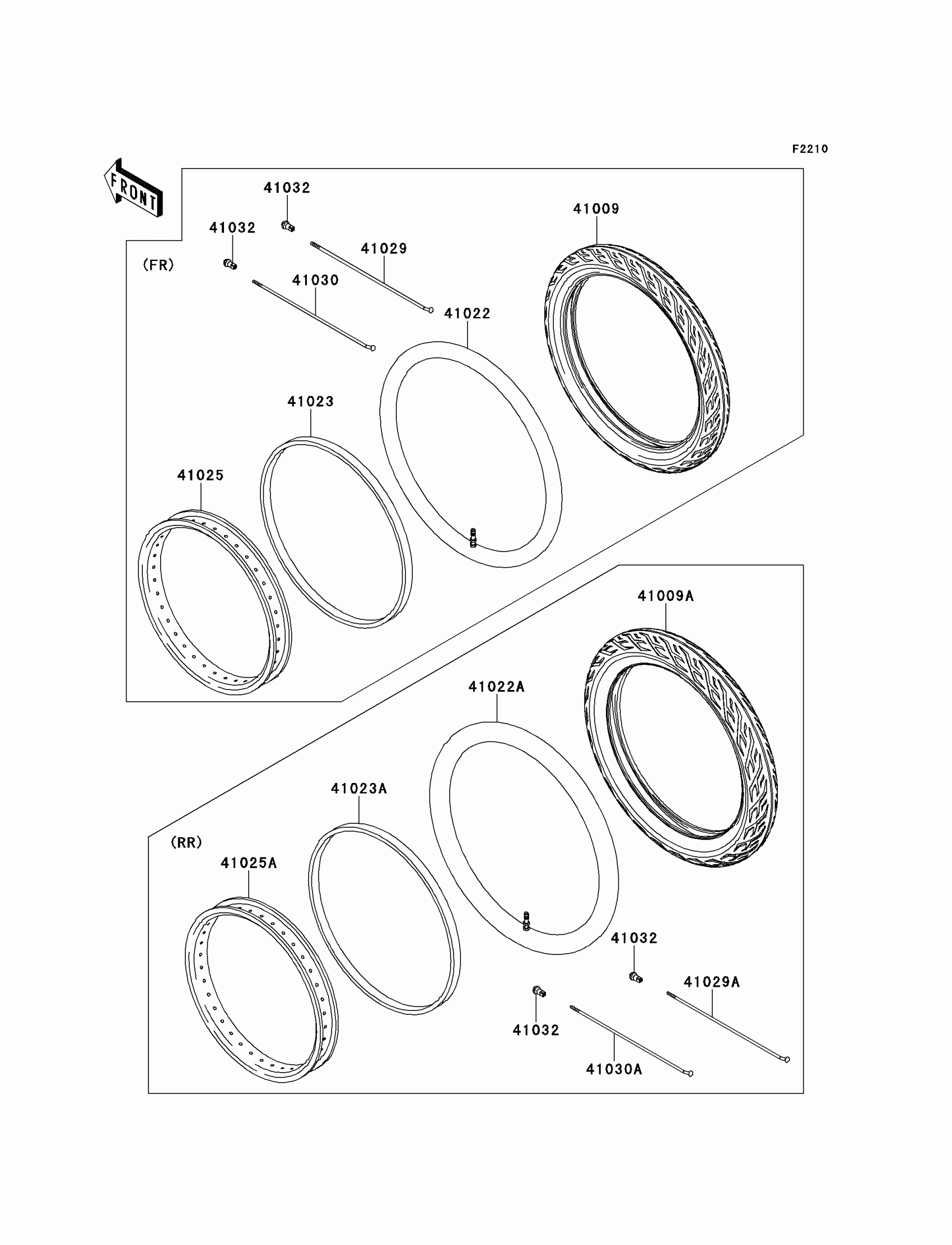

2012 Kawasaki Edge R Tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

1

$59.66

In stock

41009A

1

$66.90

In stock

41022

1

$19.93

In stock

41022A

1

$29.50

In stock

41023

BAND-RIM,17-17(IRC)

41023-0006

1

$4.53

In stock

41023A

BAND-RIM,22-17(IRC)

41023-0007

1

$4.75

In stock

41025

RIM,FR,1.40X17

41025-1438

1

$71.49

In stock

41025A

RIM,RR,1.60X17

41025-1439

1

$59.89

In stock

41029

1

$40.15

In stock

41029A

1

$0.95

In stock

41030

1

$40.15

In stock

41030A

1

$0.86

In stock

41032

NIPPLE-SPOKE

41032-024

1

$3.39

In stock
