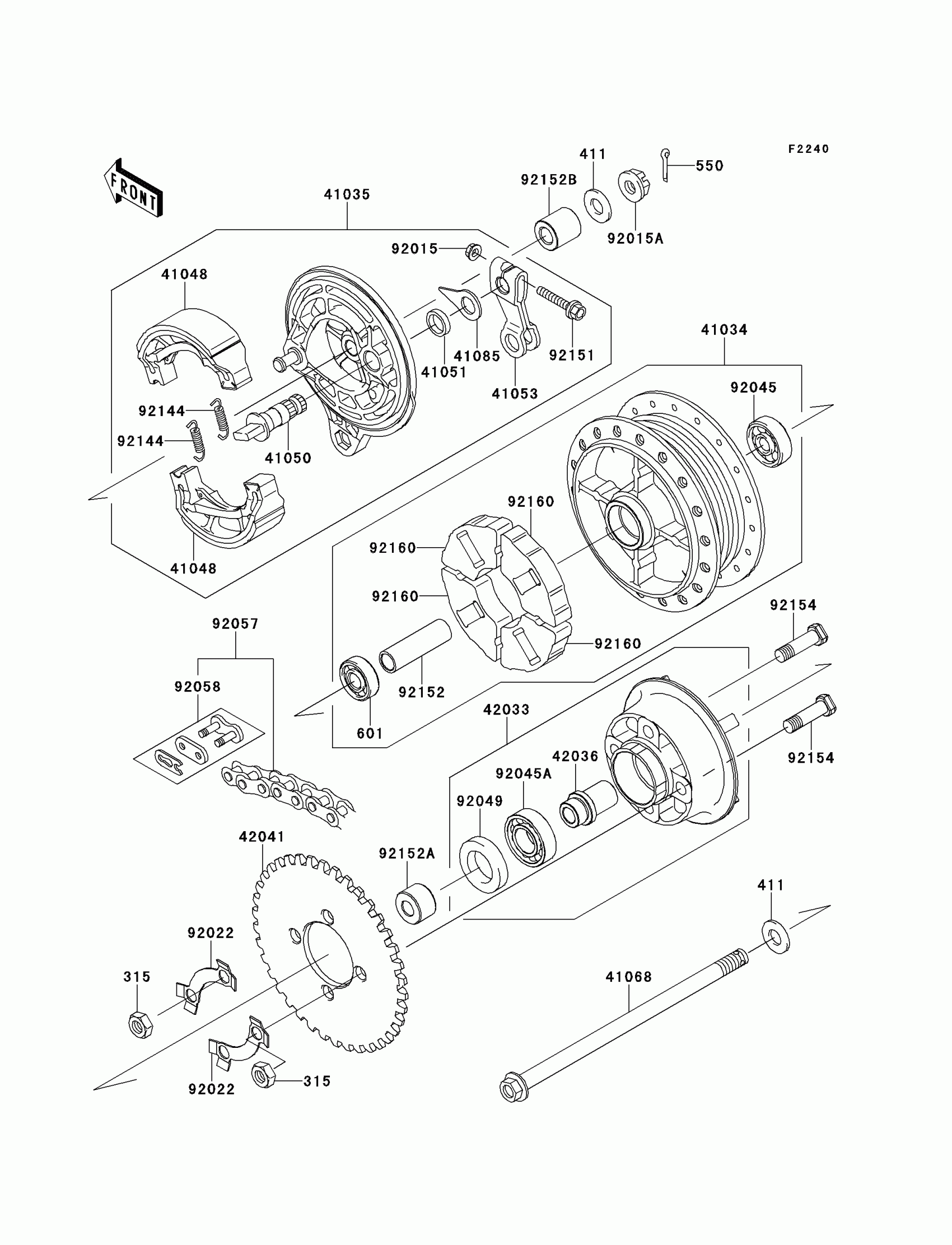

Find the part on the Rear Hub diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

315

NUT-HEX-FINE,10MM

315AA1000

1

$0.63

In stock

411

WASHER-PLAIN,12MM

411AA1200

1

$0.93

In stock

550

PIN-COTTER,3.0X25

550AA3025

1

$0.67

In stock

601

1

$18.14

In stock

41034

1

$227.11

In stock

41035

PANEL-ASSY-BRAKE,RR

41035-0055

1
Out of stock

41048

SHOE-BRAKE

41048-0008

1

$9.69

In stock

41050

CAM-BRAKE

41050-1098

1

$8.53

In stock

41051

SEAL,BRAKE CAM

41051-001

1

$3.39

In stock

41053

LEVER-BRAKE CAM

41053-1089

1

$4.68

In stock

41068

AXLE

41068-0082

1

$9.54

In stock

41085

INDICATOR

41085-1079

1

$0.85

In stock

42033

1

$54.04

In stock

42036

1

$8.64

In stock

42041

SPROCKET-HUB,38T

42041-0112

1

$72.54

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92015A

NUT,CASTLE,12MM

92015-1870

1

$5.04

In stock

92022

WASHER,LOCK

92022-1705

1

$7.56

In stock

92045

1

$14.29

In stock

92045A

1

$20.56

In stock

92049

SEAL-OIL,S 26 42 8

92049-1428

1
Out of stock

92057

1

$45.30

In stock

92058

JOINT-CHAIN,DRIVE

92058-0020

1

$5.88

In stock

92144

SPRING,BRAKE SHOE

92144-1907

1

$4.10

In stock

92151

BOLT,FLANGED,6X34

92151-1209

1

$2.95

In stock

92152

1

$12.08

In stock

92152A

1

$16.17

In stock

92152B

COLLAR,12.2X24X25

92152-0806

1

$5.76

In stock

92154

BOLT,10X36

92154-0770

1

$3.12

In stock

92160

DAMPER,SHOCK,RR HUB

92160-1627

1

$11.41

In stock
