2012 Kawasaki Edge R Swingarm/shock Absorber Diagram

← All diagrams

Find the part on the Swingarm/shock Absorber diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

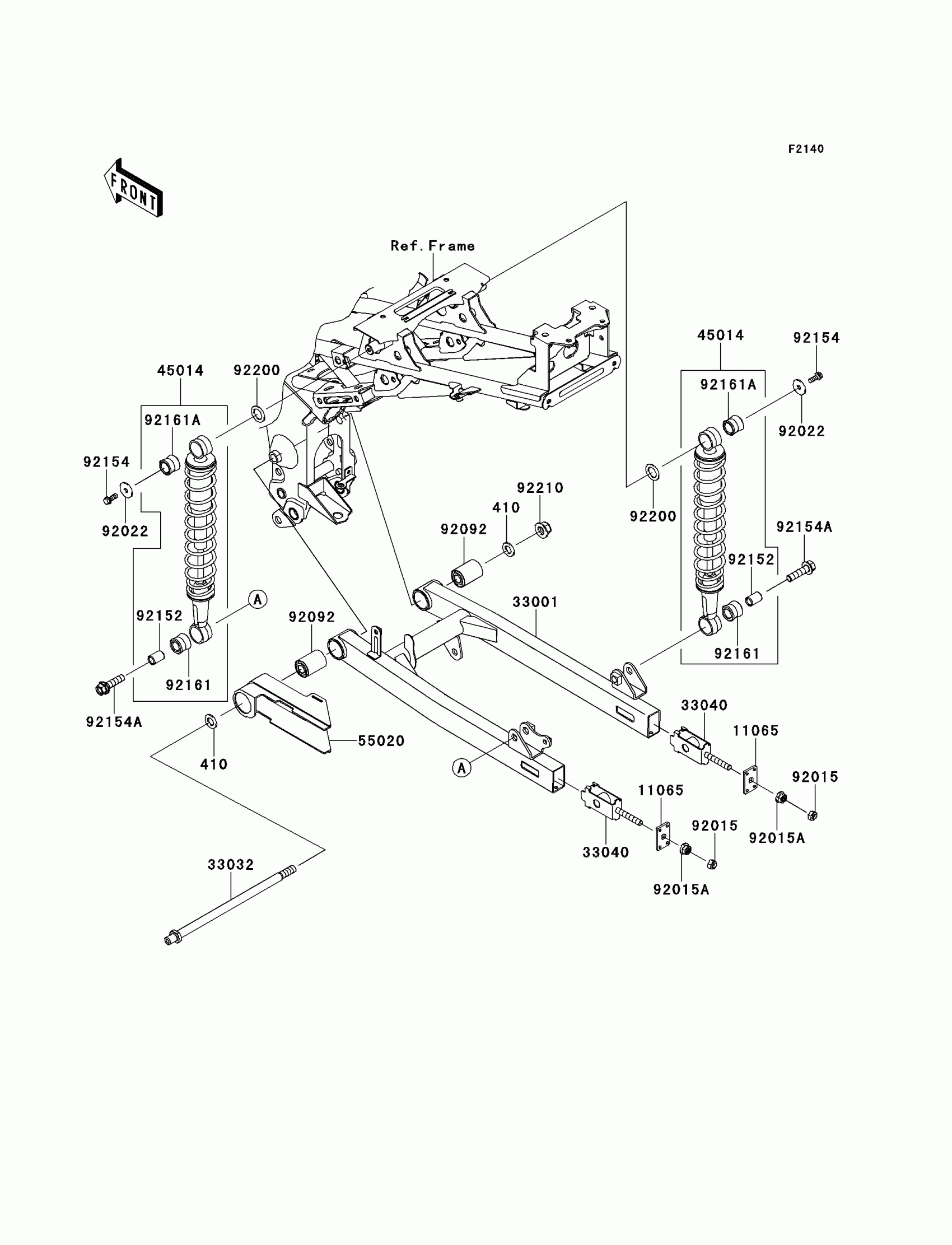

2012 Kawasaki Edge R Swingarm/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

1

$0.76

In stock

11065

CAP

11065-0314

1

$1.73

In stock

33001

ARM-COMP-SWING,P.SILVER

33001-0556-458

1

$83.58

In stock

33032

SHAFT-SWING ARM

33032-0034

1

$60.03

In stock

33040

ADJUSTER-CHAIN

33040-0074

1

$9.39

In stock

45014

SHOCKABSORBER,BLACK

45014-0357-10

1

$142.68

In stock

55020

GUARD,CHAIN

55020-1770

1

$3.58

In stock

92015

NUT,8MM

92015-1364

1

$3.12

In stock

92015A

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92092

BUSHING-RUBBER

92092-1089

1

$8.76

In stock

92152

COLLAR

92152-0830

1

$3.27

In stock

92154

BOLT,FLANGED,6X16

92154-0768

1

$1.44

In stock

92154A

BOLT,FLANGED,10X38

92154-0769

1

$3.68

In stock

92161

1

$0.76

In stock

92161A

1

$1.03

In stock

92200

WASHER,17X26X1.6

92200-1607

1
Out of stock

92210

NUT,LOCK,FLANGED,12MM

92210-0348

1
Out of stock
