2012 Kawasaki Edge R Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

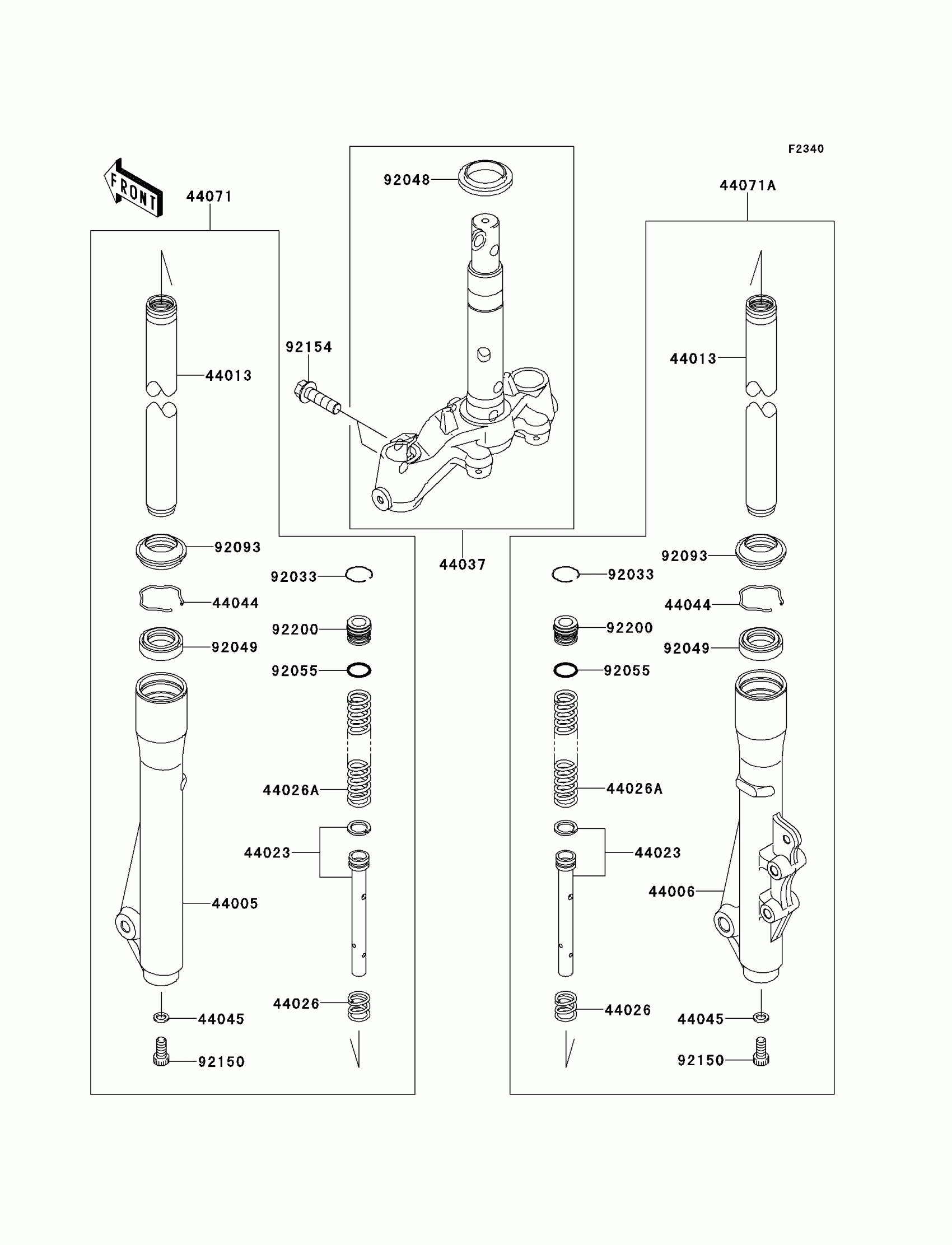

2012 Kawasaki Edge R Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

44005

1

$226.70

In stock

44006

1

$226.70

In stock

44013

PIPE-FORK INNER

44013-0211

1

$69.77

In stock

44023

CYLINDER-SET-FORK

44023-0101

1

$74.12

In stock

44026

SPRING-FRONT FORK

44026-0150

1

$10.20

In stock

44026A

SPRING-FRONT FORK

44026-0172

1

$14.24

In stock

44037

HOLDER-FORK UNDER

44037-0103

1

$314.63

In stock

44044

RING-SNAP,45MM

44044-020

1

$12.92

In stock

44045

1

$4.88

In stock

44071

DAMPER-ASSY,LH,P.SILVER

44071-0786-458

1

$424.61

In stock

44071A

DAMPER-ASSY,RH,P.SILVER

44071-0797-458

1

$424.61

In stock

92033

RING-SNAP

92033-1328

1

$0.45

In stock

92048

RACE,STEERING STEM BEARING

92048-1119

1
Out of stock

92049

SEAL-OIL

92049-0728

1
Out of stock

92055

RING-O

92055-1675

1
Out of stock

92093

SEAL,FORK OUTER TUBE

92093-1559

1
Out of stock

92150

BOLT,SOCKET,8X18

92150-1432

1

$7.86

In stock

92154

BOLT,FLANGED,10X35

92154-0353

1

$4.92

In stock

92200

WASHER

92200-1612

1
Out of stock
