2012 Kawasaki Edge R Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

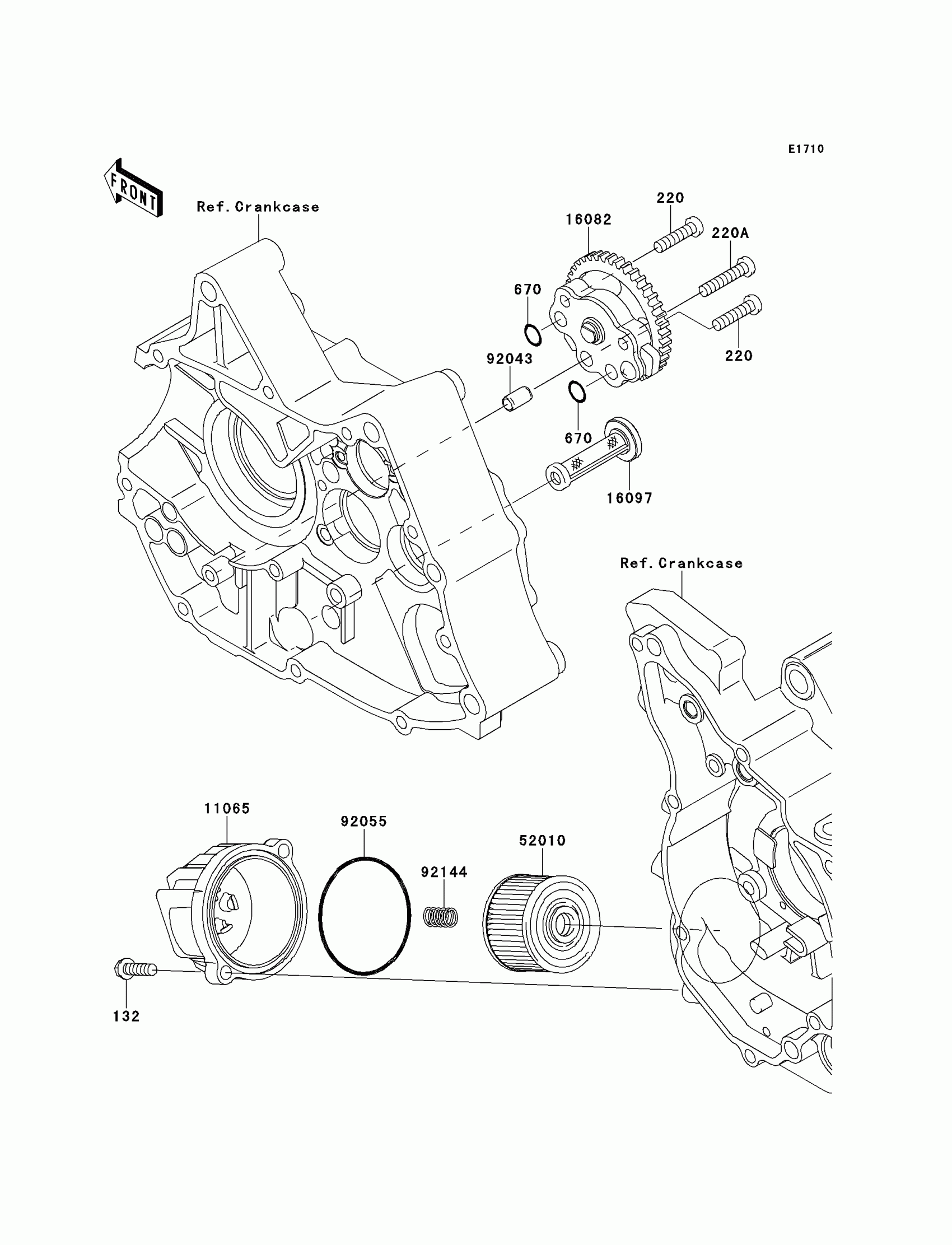

2012 Kawasaki Edge R Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.05

In stock

220

1

$2.27

In stock

220A

1

$2.92

In stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock

11065

CAP,OIL FILTER

11065-0710

1

$41.27

In stock

16082

PUMP-ASSY-OIL

16082-0010

1

$79.28

In stock

16097

FILTER-ASSY-OIL

16097-1071

1

$12.61

In stock

52010

ELEMENT-OIL FILTER

52010-0552

1
Out of stock

92043

PIN,6.2X8X14

92043-0099

1

$2.95

In stock

92055

RING-O

92055-1708

1

$4.56

In stock

92144

SPRING

92144-1892

1

$2.63

In stock
