2012 Kawasaki Edge R Cylinder Head Diagram

← All diagrams

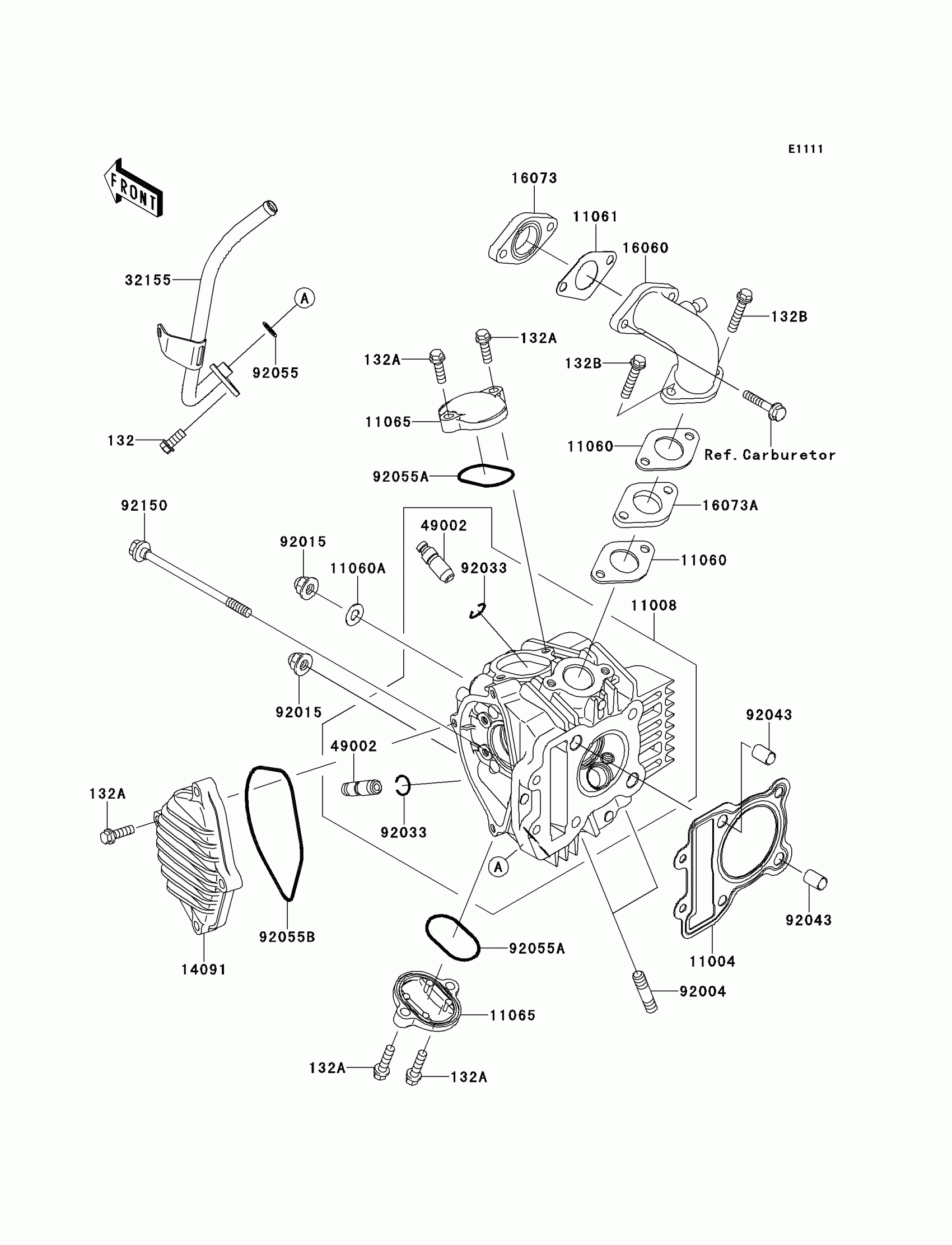

Find the part on the Cylinder Head diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.31

In stock

132A

1

$2.05

In stock

132B

1

$2.17

In stock

11004

GASKET-HEAD

11004-0056

1

$11.85

In stock

11008

HEAD-COMP-CYLINDER

11008-0729

1

$409.86

In stock

11060

GASKET,INTAKE PIPE

11060-1753

1

$2.37

In stock

11060A

GASKET

11060-1862

1

$2.37

In stock

11061

1

$1.47

In stock

11065

CAP,VALVE ADJUSTING

11065-1177

1

$22.83

In stock

14091

COVER

14091-0872

1

$7.56

In stock

16060

PIPE-INTAKE

16060-1079

1

$22.69

In stock

16073

1

$5.84

In stock

16073A

INSULATOR,HEAD

16073-1108

1

$2.53

In stock

32155

PIPE

32155-1105

1

$13.81

In stock

49002

GUIDE-VALVE

49002-1130

1

$23.17

In stock

92004

STUD,8X28.5

92004-1284

1
Out of stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92033

RING-SNAP

92033-1247

1

$3.11

In stock

92043

PIN,8.2X10X14

92043-0100

1

$2.95

In stock

92055

RING-O,9.8X1.9

92055-0061

1
Out of stock

92055A

RING-O

92055-1697

1

$8.17

In stock

92055B

RING-O,91X2.5

92055-1707

1

$11.25

In stock

92150

BOLT,6X106

92150-1761

1

$6.56

In stock
