2012 Kawasaki Edge R Crankshaft Diagram

← All diagrams

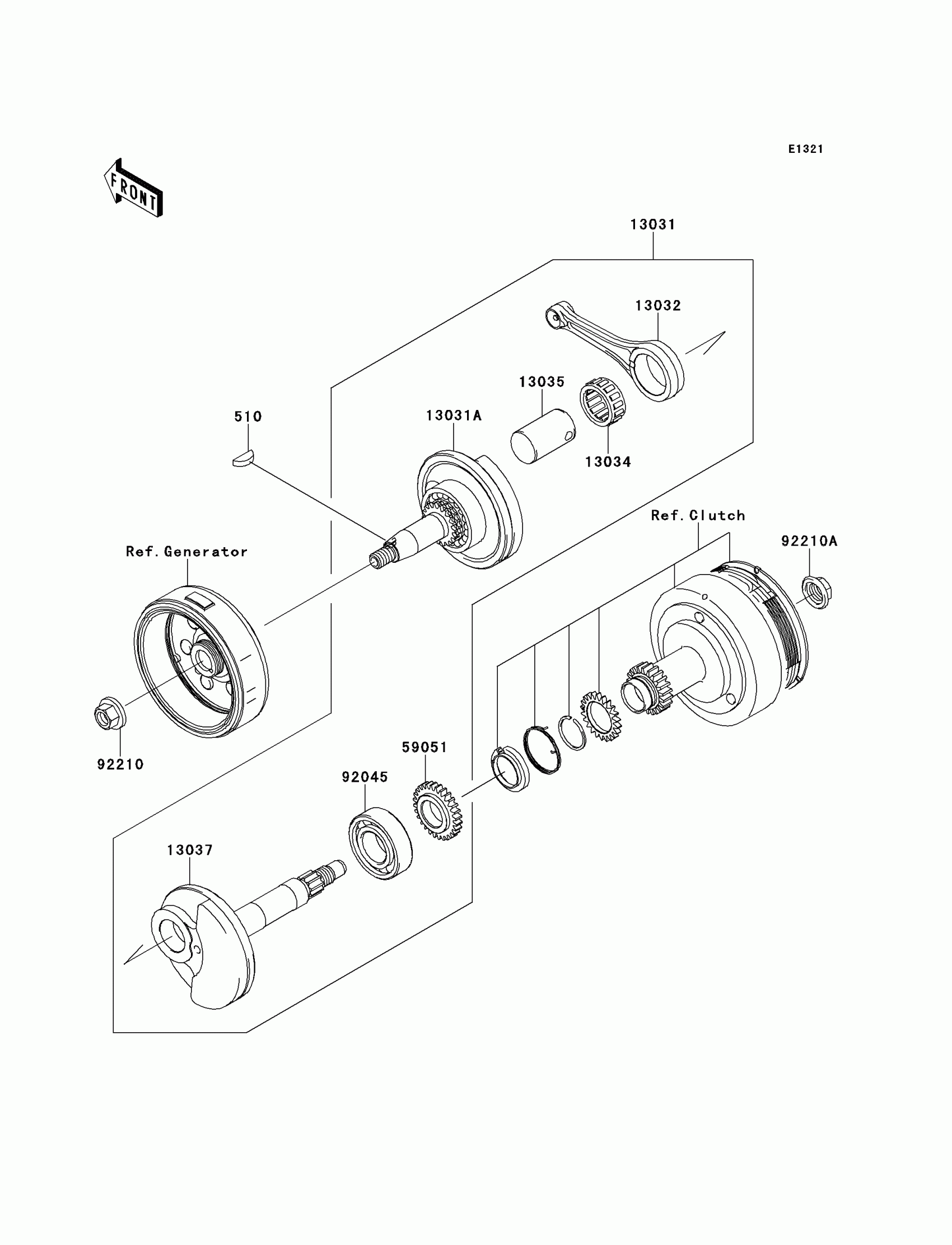

Find the part on the Crankshaft diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

510

KEY-WOODRUFF

510A3200

1

$2.17

In stock

13031

CRANKSHAFT-COMP

13031-0721

1

$317.26

In stock

13031A

CRANKSHAFT-COMP,LH

13031-0722

1

$128.40

In stock

13032

ROD-CONNECTING

13032-0074

1

$84.65

In stock

13034

1

$36.00

In stock

13035

PIN-CRANK

13035-0557

1

$44.38

In stock

13037

CRANKSHAFT,RH

13037-0128

1

$124.01

In stock

59051

GEAR-SPUR

59051-1402

1

$9.07

In stock

92045

1

$34.75

In stock

92210

NUT,12MM

92210-0176

1
Out of stock

92210A

NUT,14MM

92210-1374

1
Out of stock
