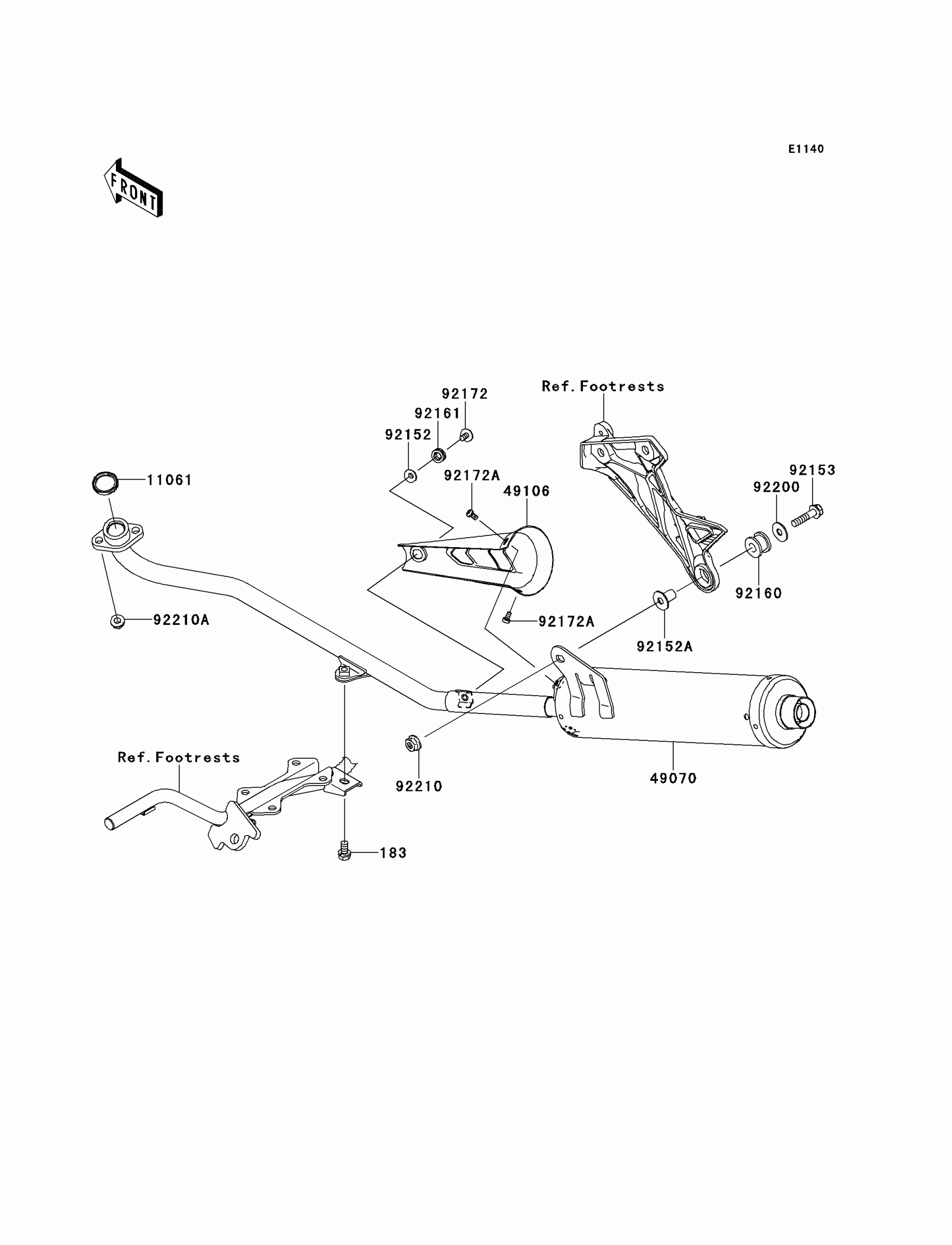

Find the part on the Muffler diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

183

1

$3.92

In stock

11061

GASKET,EXHAUST PIPE

11061-0183

1

$3.64

In stock

49070

MUFFLER-COMP

49070-0728

1

$189.28

In stock

49106

COVER-MUFFLER

49106-0109

1

$25.56

In stock

92152

COLLAR

92152-0334

1

$3.86

In stock

92152A

COLLAR

92152-0676

1

$3.83

In stock

92153

BOLT,8X35

92153-1186

1
Out of stock

92160

1

$4.37

In stock

92161

DAMPER

92161-0306

1

$4.47

In stock

92172

SCREW

92172-0194

1

$3.68

In stock

92172A

SCREW,5X10

92172-0490

1

$9.68

In stock

92200

WASHER,8.5X24.5X1.6

92200-0735

1
Out of stock

92210

NUT,8MM

92210-0177

1
Out of stock

92210A

NUT,8MM

92210-0381

1
Out of stock
