2012 Kawasaki Edge R Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

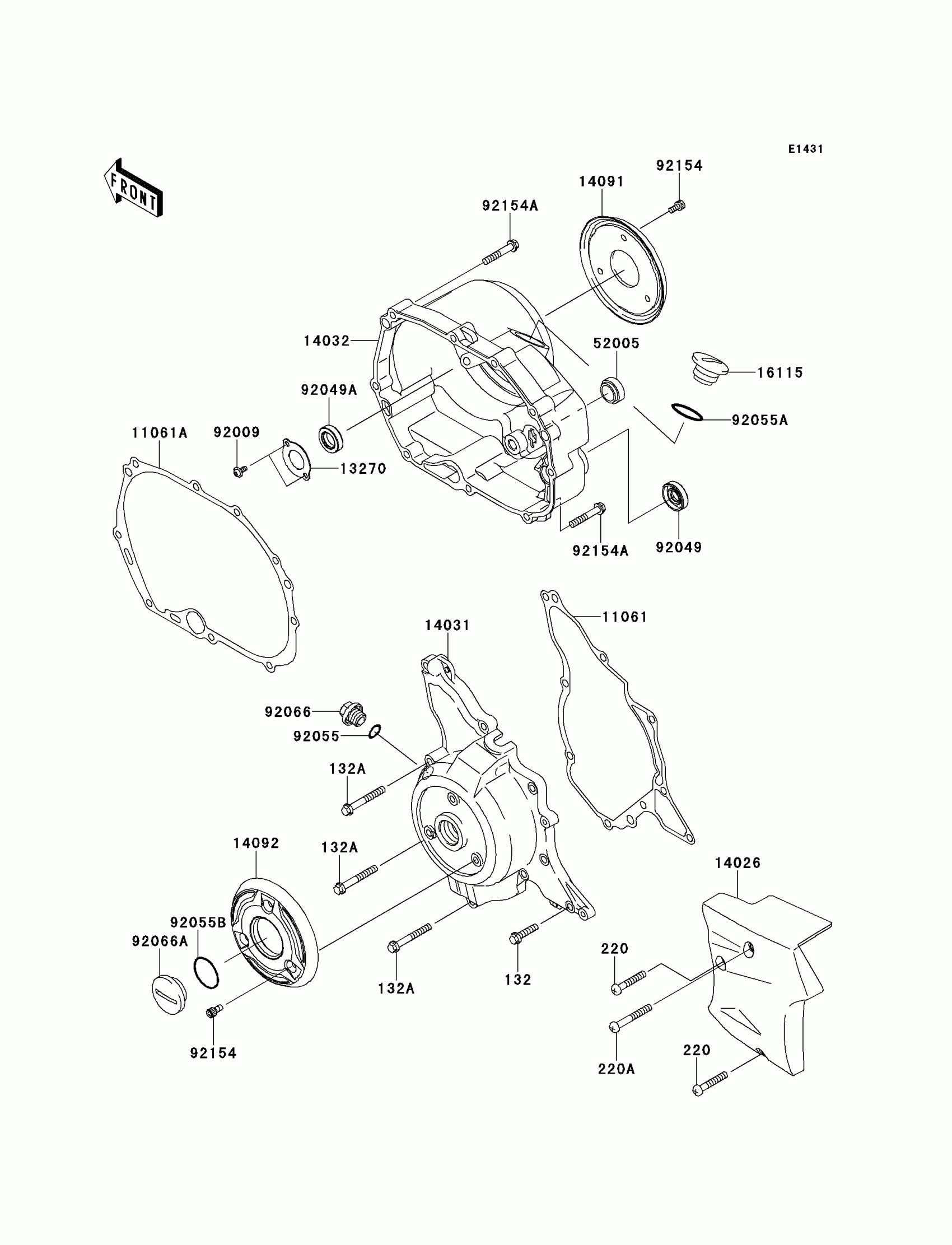

2012 Kawasaki Edge R Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.29

In stock

132A

1

$3.53

In stock

220

1

$3.43

In stock

220A

1

$3.85

In stock

11061

1

$14.58

In stock

11061A

GASKET,CLUTCH COVER

11061-0426

1

$21.53

In stock

13270

PLATE

13270-1800

1
Out of stock

14026

COVER-CHAIN,M.M.GOLD

14026-0073-D3

1

$8.64

In stock

14031

COVER-GENERATOR,M.M.GOLD

14031-0119-D3

1

$59.97

In stock

14032

COVER-CLUTCH,M.M.GOLD

14032-0112-D3

1

$102.91

In stock

14091

1

$5.44

In stock

14092

COVER

14092-0029

1

$17.36

In stock

16115

CAP-OIL FILLER

16115-1067

1

$12.68

In stock

52005

GAUGE,OIL LEVEL

52005-0019

1

$11.67

In stock

92009

SCREW

92009-1745

1
Out of stock

92049

SEAL-OIL,S 12 28 7 HS

92049-0051

1
Out of stock

92049A

SEAL-OIL

92049-1430

1
Out of stock

92055

RING-O,14.8X2.4

92055-0194

1

$4.66

In stock

92055A

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055B

RING-O,25.7X2.4

92055-0716

1

$2.46

In stock

92066

PLUG,14X10

92066-0724

1

$1.41

In stock

92066A

1

$5.78

In stock

92154

BOLT,SOCKET,5X10

92154-0789

1

$1.93

In stock

92154A

BOLT

92154-1134

1

$3.27

In stock
