1979 Yamaha EC540C Track Suspension 1 EC540D Diagram

← All diagrams

Find the part on the Track Suspension 1 EC540D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

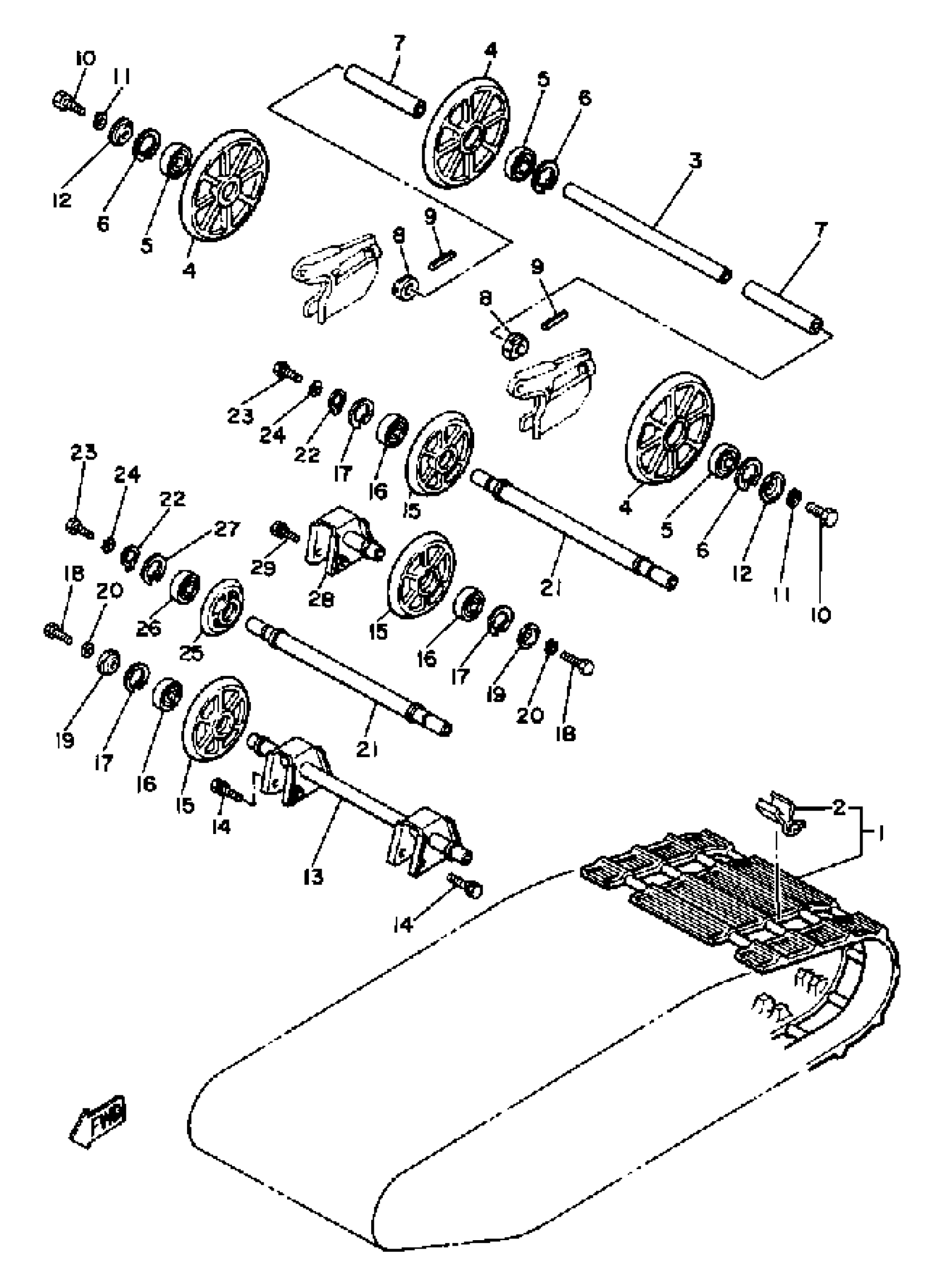

1979 Yamaha EC540C Track Suspension 1 EC540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

8H8-47110-00-00

1
Out of stock

2

METAL, SLIDE

8A5-47115-00-00

1
Out of stock

3

AXLE, REAR

8H8-47521-00-00

1
Out of stock

4

WHEEL, GUIDE 2

(865-47535-01-00)

1
Out of stock

5

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

1
Out of stock

6

CIRCLIP(48Y)

99009-47500-00

1
Out of stock

7

COLLAR

90387-20710-00

1
Out of stock

8

COLLAR 3

8G9-47479-00-00

1
Out of stock

9

PIN, SPRING (663)

91690-40040-00

1
Out of stock

10

BOLT, HEXAGON

97013-08020-00

1
Out of stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

12

WASHER, SPEC''L SHAP

90209-08124-00

1
Out of stock

13

BRACKET 4

8H8-47418-00-00

1
Out of stock

14

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

15

SUSPENSION WHEEL COMP

885-47320-01-00

1
Out of stock

16

BEARING(8AB)

93306-00444-00

—
Out of stock

17

CIRCLIP(5U8)

99009-42500-00

—
Out of stock

18

BOLT

90109-06464-00

1
Out of stock

19

WASHER, SPEC''L SHAP

90209-06137-00

1
Out of stock

20

WASHER, SPRING

92995-06100-00

1
Out of stock

21

IDLER

8H8-47461-00-00

1
Out of stock

22

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

23

BOLT, HEXAGON

97013-08020-00

1
Out of stock

24

WASHER (688)

92990-08400-00

1
Out of stock

25

SUSPENSION WHEEL COMP.

8H8-47320-00-00

—
Out of stock

26

BEARING(8AB)

93306-00444-00

—
Out of stock

27

CIRCLIP(5U8)

99009-42500-00

—
Out of stock

28

BRKT 6 (8H8-47464)

(99999-01155-00)

1
Out of stock

29

UNAVAILABLE IN PRICE BOOK

90229-08013-00

1
Out of stock
