1979 Yamaha EC540C Secondary Sheave EC540C - D Diagram

← All diagrams

Find the part on the Secondary Sheave EC540C - D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

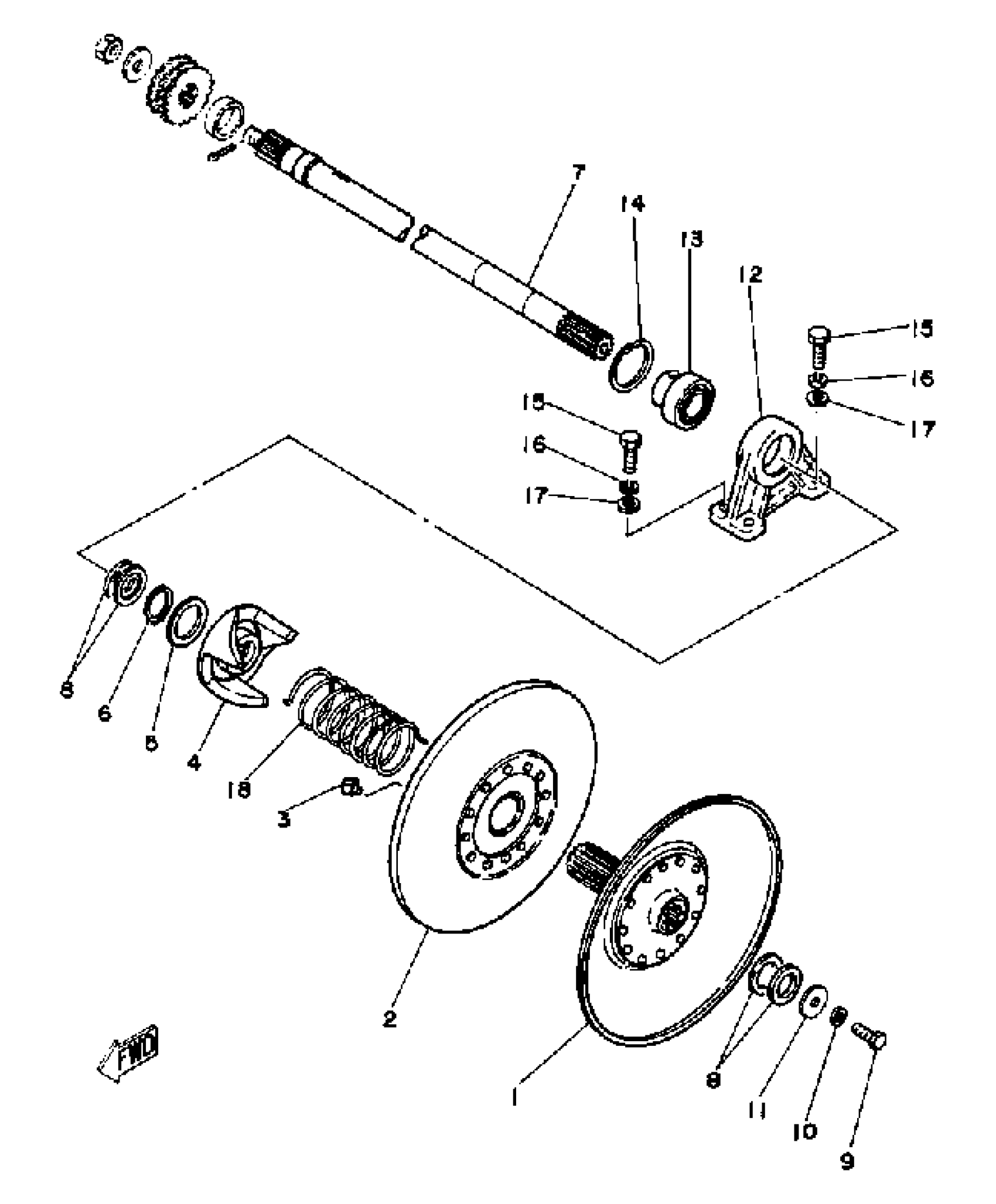

1979 Yamaha EC540C Secondary Sheave EC540C - D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEC FXD SHVSHEAVE COMP.

8A5-17660-01-00

1
Out of stock

2

SEC SLIDING SHEAVE

(8F2-17670-00-00)

1
Out of stock

3

SHOE RAMP

8X6-17688-00-00

1

$6.31

In stock

4

SEAT, SEC SPRING

8A7-17684-00-00

1
Out of stock

5

WASHER, PLATE

90201-34684-00

1
Out of stock

6

CIRCLIP(86F)

93440-34170-00

1

$6.86

In stock

7

SHAFT, SECONDARY

(8H8-17680-00-00)

1
Out of stock

8

WASHER, PLATE (888)

90201-25526-00

1
Out of stock

8

WASHER, PLATE (888)

90201-25527-00

1

$7.60

In stock

9

BOLT(6TD)

97017-10025-00

1

$6.82

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

11

WASHER, PLATE(8BV)

90201-100S7-00

1

$9.75

In stock

12

HOUSING, BEARING

8H8-47631-00-00

1
Out of stock

13

BEARING

888-17678-00-00

1
Out of stock

14

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

15

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

16

UNAVAILABLE IN PRICE BOOK

92302-08100-00

1
Out of stock

17

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

18

SPRING, TORSION

90508-45286-00

1
Out of stock
