1979 Yamaha EC540C Track Drive 1 EC540C Diagram

← All diagrams

Find the part on the Track Drive 1 EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

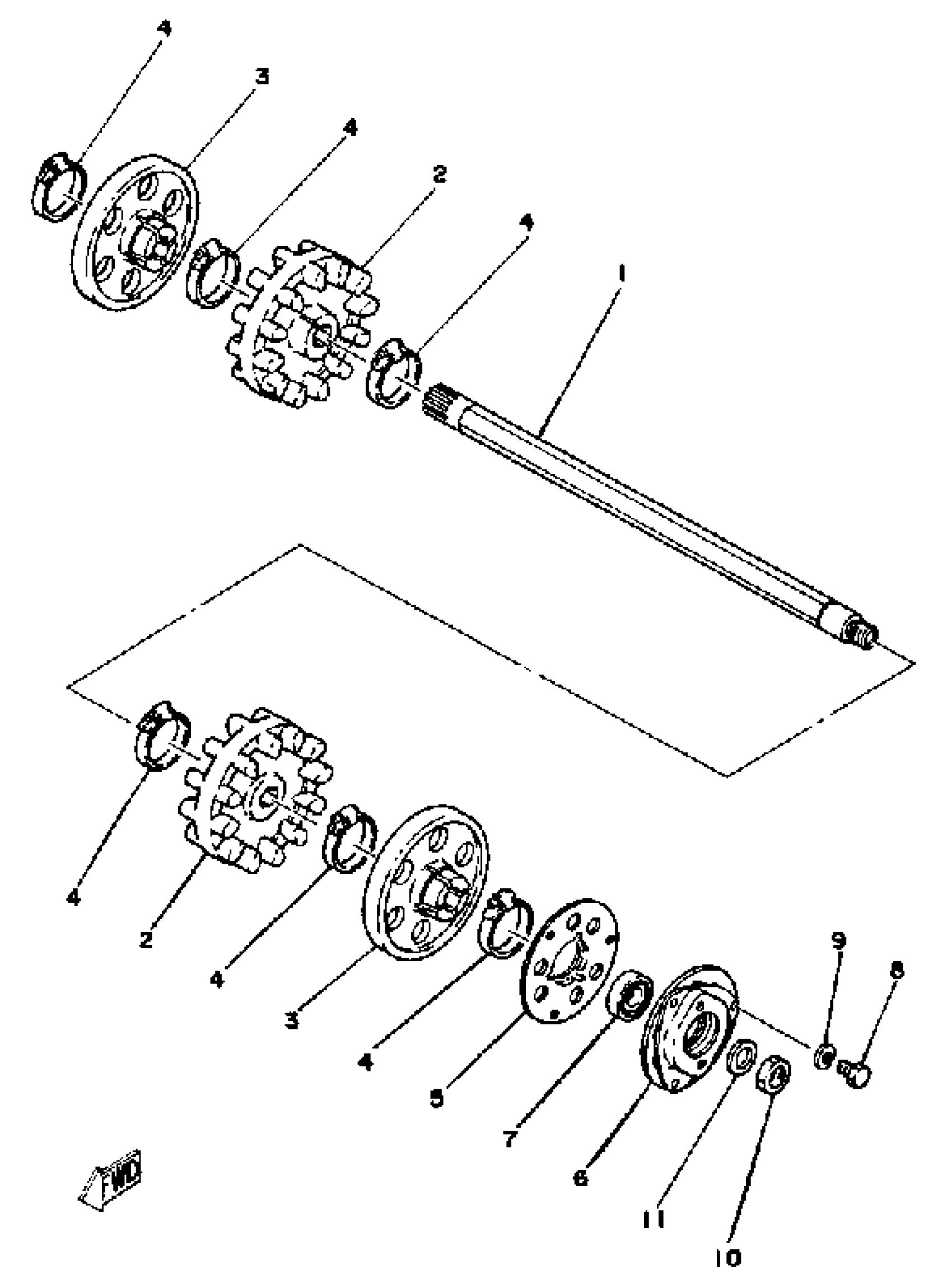

1979 Yamaha EC540C Track Drive 1 EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

8H8-W4751-00-00

1
Out of stock

2

WHEEL, SPROCKET 1

(8A7-47531-00-00)

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK

8H8-47531-00-00

1
Out of stock

4

BAND (MADE IN CANADA)

90460-50079-00

—
Out of stock

5

HOUSING, FRONT AXLE

8H8-47551-00-00

1
Out of stock

6

HOUSING, FRONT AXLE

8H8-47551-10-00

1
Out of stock

7

BEARING 60/22

93306-00420-00

1
Out of stock

8

BOLT, HEXAGON

97017-08016-00

1
Out of stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

NUT (821-47579-00)

90170-22094-00

1

$5.34

In stock

11

WASHER 810475810000

90208-22001-00

1

$7.35

In stock
