1979 Yamaha EC540C Track Suspension 1 EC540C Diagram

← All diagrams

Find the part on the Track Suspension 1 EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

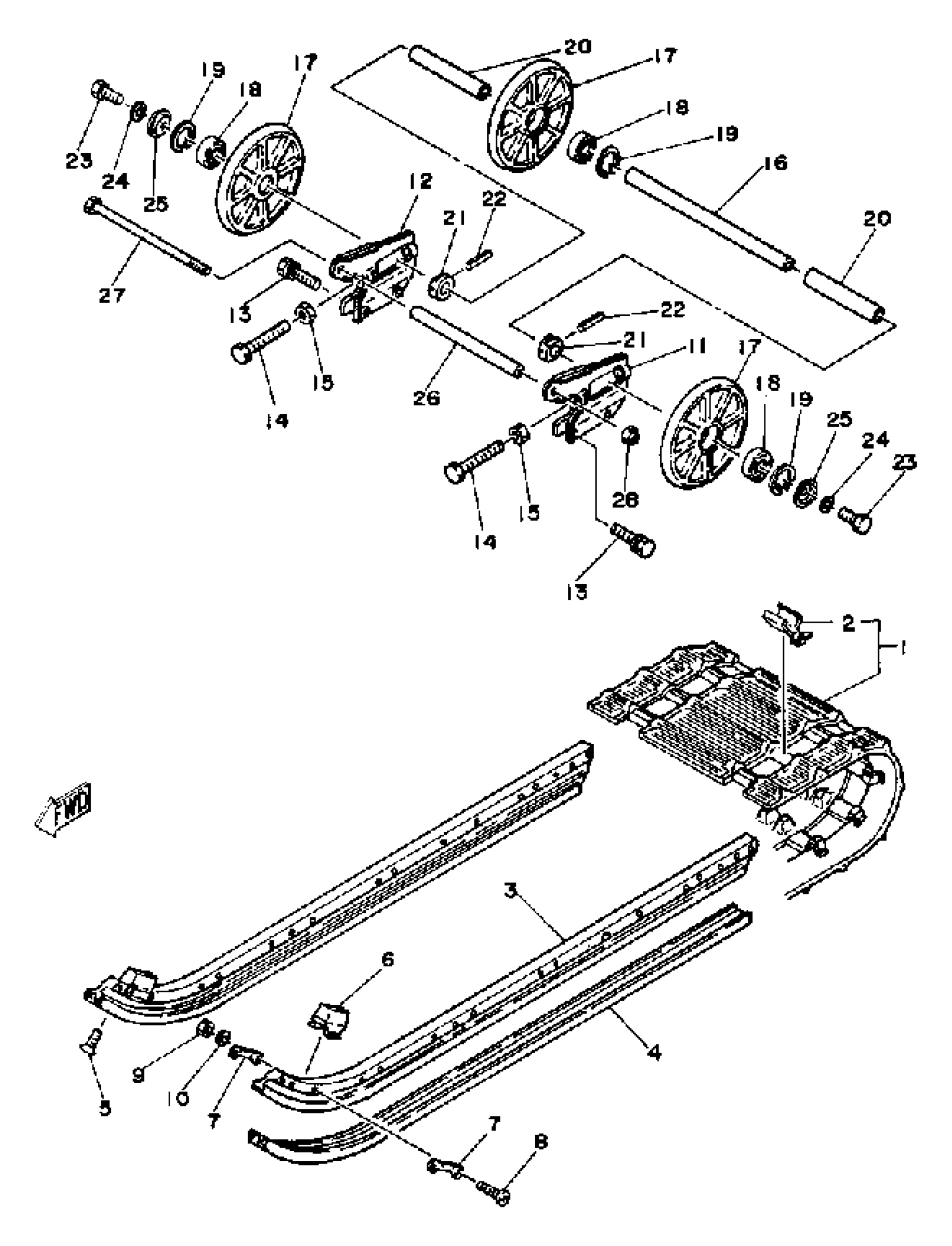

1979 Yamaha EC540C Track Suspension 1 EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

8H8-47110-00-00

1
Out of stock

2

METAL, SLIDE

8A5-47115-00-00

1
Out of stock

3

FRAME, SLIDING 1

8T1-47411-00-00

1
Out of stock

4

RUNNER, SLIDING 1

8H8-47421-10-XX

1
Out of stock

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

6

DAMPER 2

8E3-47457-00-00

1
Out of stock

7

PLATE, DAMPER

885-47458-01-00

1
Out of stock

8

SCREW, PAN HEAD

98517-05030-00

1
Out of stock

9

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

FRAME, SLIDING 2

8H8-47412-00-00

1
Out of stock

12

FRAME, SLIDING 3

8H8-47413-00-00

1
Out of stock

13

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

14

BOLT, HEXAGON (899 TRACK)

90101-10293-00

1
Out of stock

15

NUT (682)

95380-10700-00

1
Out of stock

16

AXLE, REAR

8H8-47521-00-00

1
Out of stock

17

WHEEL, GUIDE 2

(865-47535-01-00)

1
Out of stock

18

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

—
Out of stock

19

CIRCLIP(48Y)

99009-47500-00

—
Out of stock

20

COLLAR

90387-20710-00

1
Out of stock

21

COLLAR 3

8G9-47479-00-00

1
Out of stock

22

PIN, SPRING (663)

91690-40040-00

1
Out of stock

23

BOLT, HEXAGON

97013-08020-00

—
Out of stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

25

WASHER, SPEC''L SHAP

90209-08124-00

1
Out of stock

26

COLLAR

90387-08709-00

1
Out of stock

27

BOLT,HEXAGON

97027-08270-00

1
Out of stock

28

NUT, NYLON

95717-08300-00

—
Out of stock
