1979 Yamaha EC540C OIL Pump EC540C - D Diagram

← All diagrams

Find the part on the OIL Pump EC540C - D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

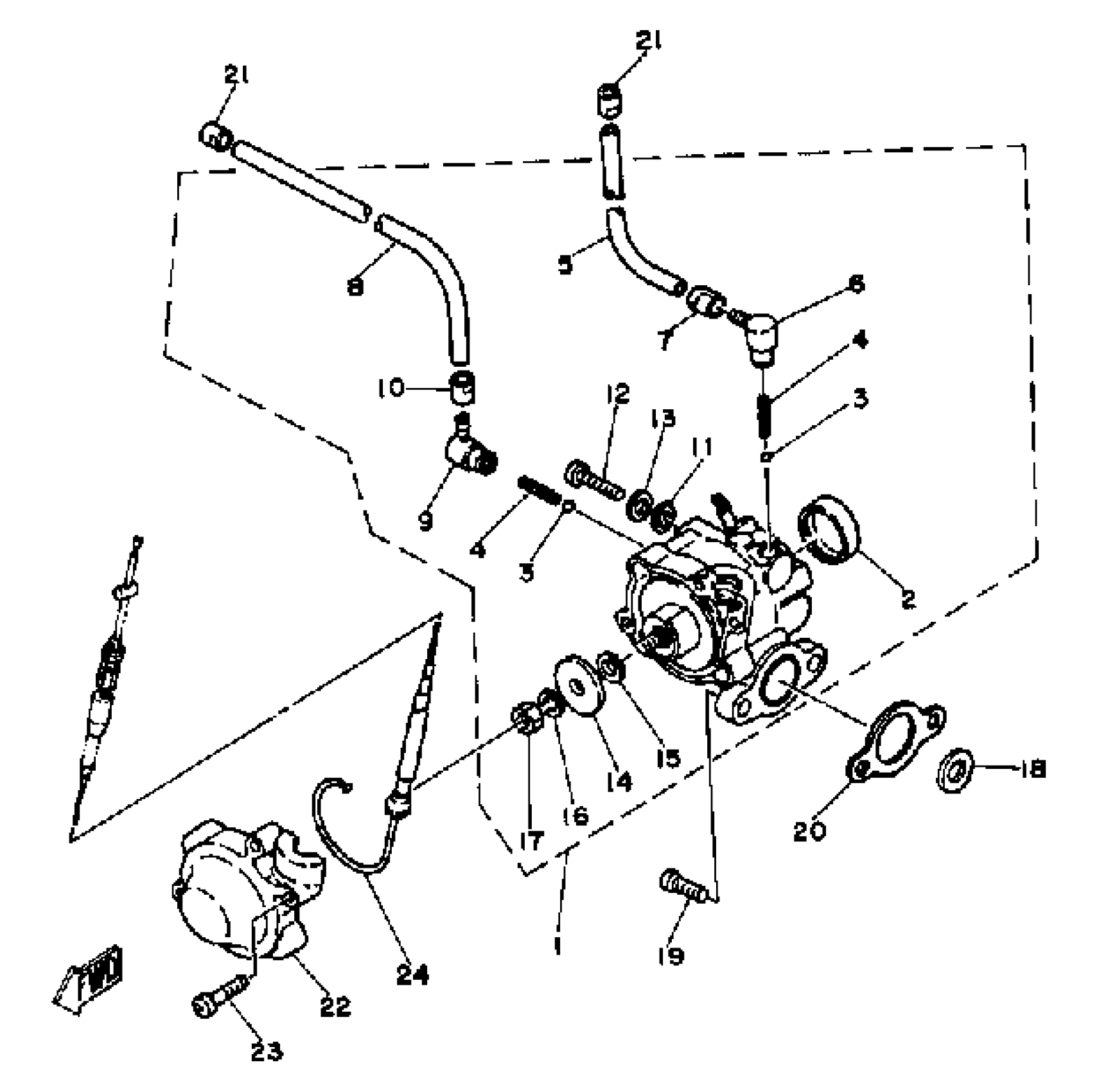

1979 Yamaha EC540C OIL Pump EC540C - D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

8H8-13101-00-00

1
Out of stock

2

. PLUG

90338-21100-00

1
Out of stock

3

BALL

93505-32002-00

1

$2.22

In stock

4

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

5

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

6

NOZZLE

353-13552-01-00

1
Out of stock

7

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

8

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

9

NOZZLE

353-13552-01-00

1
Out of stock

10

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

. SCREW, PAN HEAD

90157-04009-00

1
Out of stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

15

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

15

SHIM,PLUNGER

137-13137-00-05

—

$5.32

In stock

15

SHIM,PLUNGER

137-13137-00-10

—

$6.43

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

18

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

19

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

20

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

21

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

22

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

23

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

24

PUMP CABLE ASSEMBLY

8H8-26320-00-00

1
Out of stock
