1979 Yamaha EC540C Intake EC540D Diagram

← All diagrams

Find the part on the Intake EC540D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

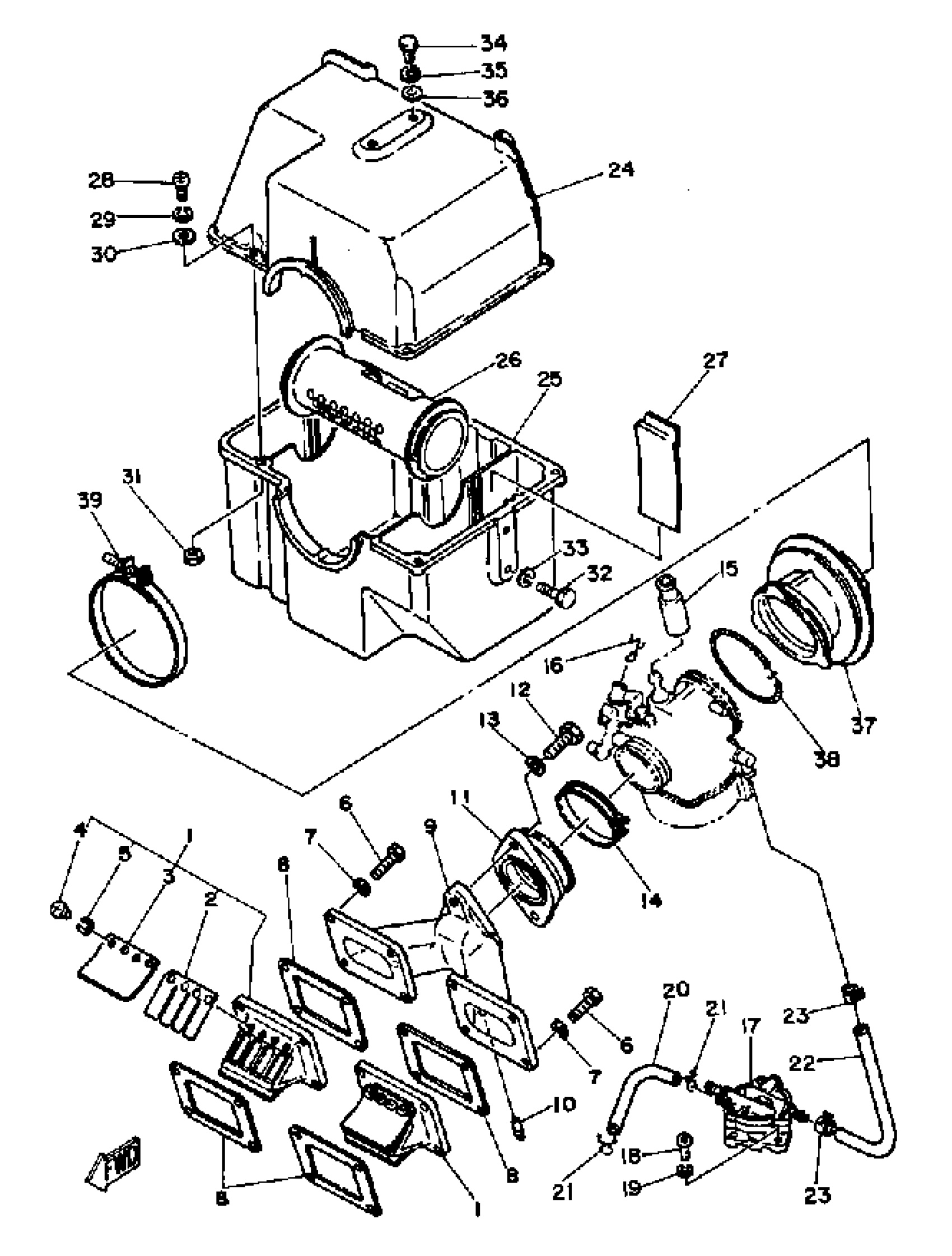

1979 Yamaha EC540C Intake EC540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

8AT-13610-00-00

1

$154.68

In stock

2

REED, VALVE

8AT-13613-00-00

1

$28.12

In stock

3

STOPPER REED VALVE

8H8-13616-00-00

1

$4.45

In stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

GASKET, MANIFOLD

8Y7-13556-01-00

1

$6.92

In stock

9

JOINT, CARBURETOR

8H8-13565-00-00

1
Out of stock

10

NOZZLE

824-13552-00-00

1
Out of stock

11

MANIFOLD, INTAKE

8H8-13555-01-00

1
Out of stock

12

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

14

CLAMP, HOSE

90460-60084-00

1
Out of stock

15

BOOT

8J5-26352-00-00

1
Out of stock

16

CLAMP, THROTTLE

830-41222-00-00

1
Out of stock

17

FUEL PUMP ASSY

8A5-24410-02-00

—

$161.42

In stock

18

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

HOSE (L450)

90445-10144-00

—

$4.52

In stock

21

CLIP

90467-090A2-00

—

$2.51

In stock

22

HOSE

90446-11326-00

1
Out of stock

23

CLIP

90467-11028-00

1

$5.14

In stock

24

SILENCER

8H8-14431-00-00

—

$61.62

In stock

25

SILENCER

8H8-14441-00-00

—

$109.58

In stock

26

PIPE, BALANCE 2

8H8-14466-00-00

—

$20.83

In stock

27

PLATE

8H8-14477-00-00

—

$3.78

In stock

28

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

29

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

30

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

31

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

32

BOLT (661)

97013-06012-00

—

$4.71

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

37

JOINT, AIR CLNR 1

8H8-14453-00-00

1
Out of stock

38

—

$6.89

In stock

39

CLAMP,HOSE

90450-99056-00

1
Out of stock
