1979 Yamaha EC540C Intake EC540C Diagram

← All diagrams

Find the part on the Intake EC540C diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

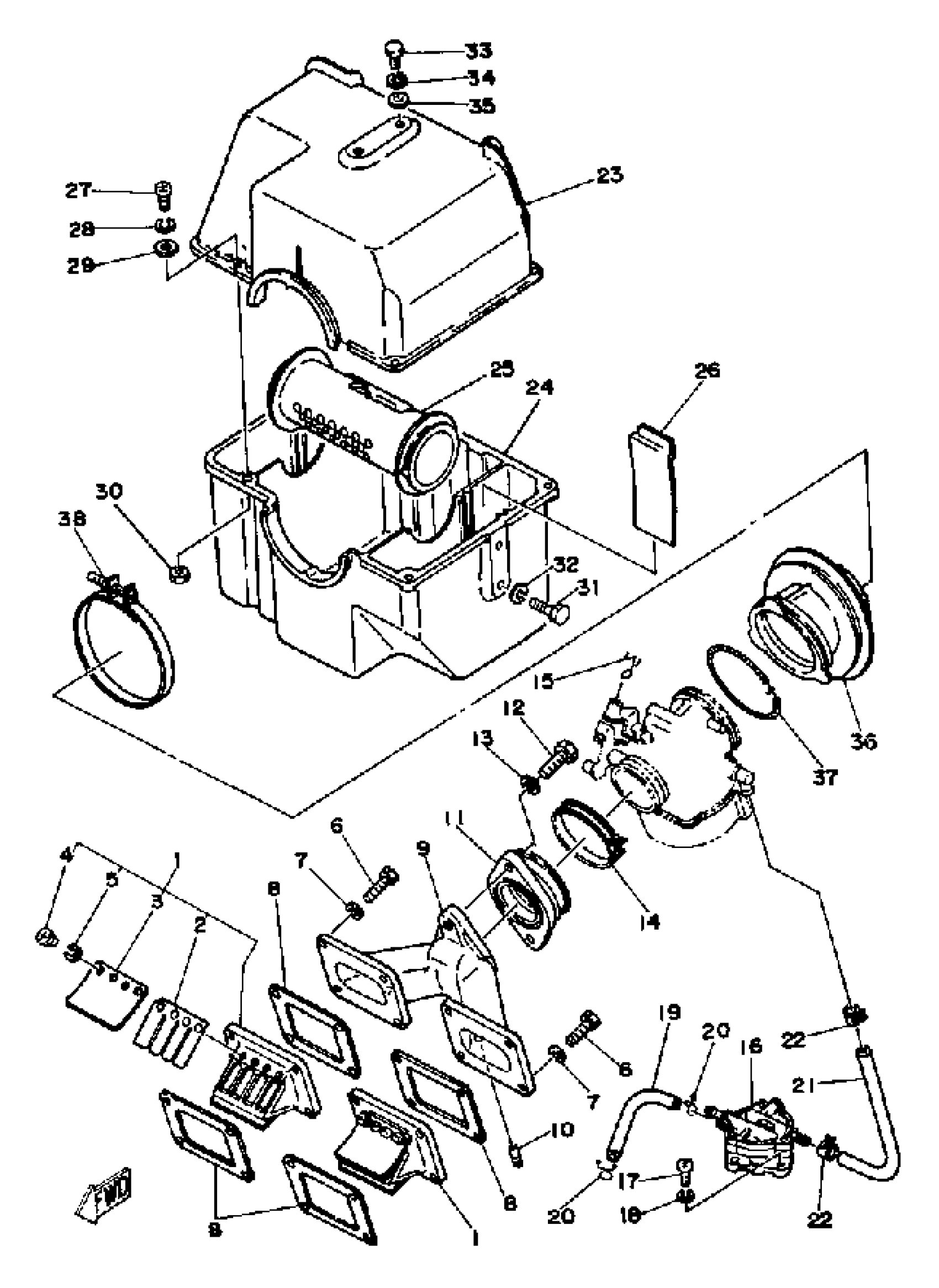

1979 Yamaha EC540C Intake EC540C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

8AT-13610-00-00

1

$154.68

In stock

2

REED, VALVE

8AT-13613-00-00

1

$28.12

In stock

3

STOPPER REED VALVE

8H8-13616-00-00

1

$4.45

In stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

GASKET, MANIFOLD

8Y7-13556-01-00

1

$6.92

In stock

9

JOINT, CARBURETOR

8H8-13565-00-00

1
Out of stock

10

NOZZLE

824-13552-00-00

1
Out of stock

11

MANIFOLD, INTAKE

8H8-13555-01-00

1
Out of stock

12

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

14

CLAMP, HOSE

90460-60084-00

1
Out of stock

15

CLAMP, THROTTLE

830-41222-00-00

1
Out of stock

16

FUEL PUMP ASSY

8A5-24410-02-00

—

$161.42

In stock

17

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

HOSE (L450)

90445-10144-00

—

$4.52

In stock

20

CLIP

90467-090A2-00

—

$2.51

In stock

21

HOSE

90446-11326-00

1
Out of stock

22

CLIP

90467-11028-00

1

$5.14

In stock

23

SILENCER

8H8-14431-00-00

—

$61.62

In stock

24

SILENCER

8H8-14441-00-00

—

$109.58

In stock

25

PIPE, BALANCE 2

8H8-14466-00-00

—

$20.83

In stock

26

PLATE

8H8-14477-00-00

—

$3.78

In stock

27

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

28

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

29

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

30

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

31

BOLT (661)

97013-06012-00

—

$4.71

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

36

JOINT, AIR CLNR 1

8H8-14453-00-00

1
Out of stock

37

—

$6.89

In stock

38

CLAMP,HOSE

90450-99056-00

1
Out of stock
