1979 Yamaha EC540C Fuel Tank EC540C - D Diagram

← All diagrams

Find the part on the Fuel Tank EC540C - D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

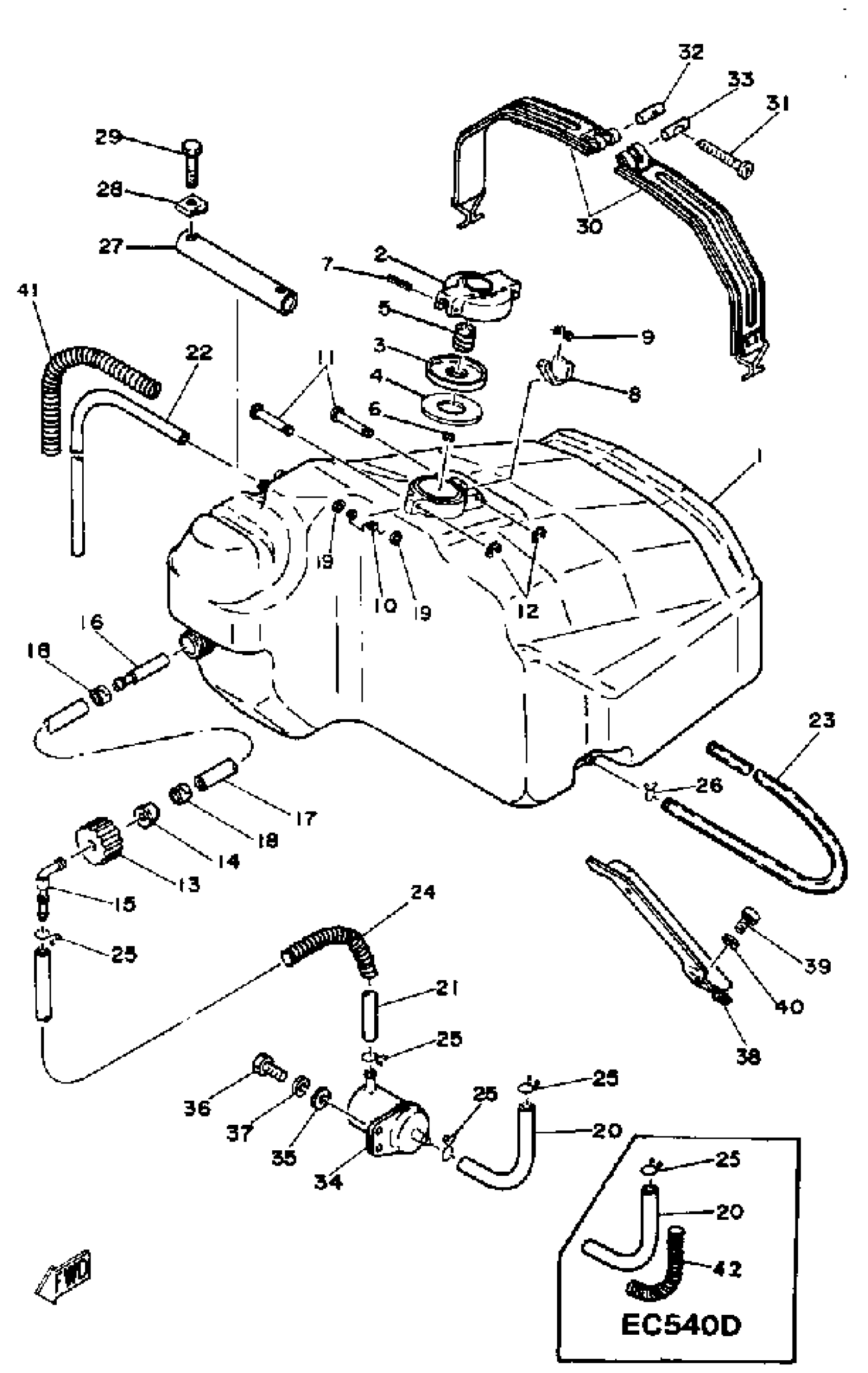

1979 Yamaha EC540C Fuel Tank EC540C - D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

8H8-24111-00-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

DISK,CAP

813-24613-01-00

1
Out of stock

4

GASKET, CAP 1

89A-24641-00-00

1
Out of stock

5

SPRING, CAP

90501-20130-00

1
Out of stock

6

PIN, SPRING

91690-30016-00

1
Out of stock

7

PIN, SPRING

91609-25032-00

1
Out of stock

8

HOOK

83M-24628-00-00

1
Out of stock

9

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

10

SPRING, TORSIOW (8F3)

90508-08353-00

—
Out of stock

11

PIN (813)

90249-03017-00

1
Out of stock

12

CIRCLIP (604)

93430-02001-00

1
Out of stock

13

BODY, CAP

8H8-24644-00-00

1
Out of stock

14

GASKET, CAP

8H8-24612-00-00

1
Out of stock

15

TUBE, CONNECTING

8H8-24119-00-00

1
Out of stock

16

PIPE, SUCTION 1

8H8-24335-00-00

1
Out of stock

17

HOSE

91A30-07036-00

1
Out of stock

18

. BAND 1

650-24351-51-00

1
Out of stock

19

WASHER, PLATE 8077743700

90201-03313-00

—
Out of stock

20

HOSE

(90446-11022-00)

1
Out of stock

21

HOSE

90446-11326-00

1
Out of stock

22

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—
Out of stock

23

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—
Out of stock

24

SPRING, COMPRESSION(1YU)

90501-061E8-00

—
Out of stock

25

CLIP

90467-11028-00

1
Out of stock

26

CLIP (8L2)

90467-08017-00

—
Out of stock

27

BAND, TNK FITTING 1

(8H8-24173-00-00)

1
Out of stock

28

WASHER, LOCK

(90215-06048-00)

1
Out of stock

29

BOLT (682)

97095-06040-00

—
Out of stock

30

BAND, TNK FITTING 2

(8H8-24199-00-00)

1
Out of stock

31

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

32

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

33

CLAMP

806-24135-00-00

—
Out of stock

34

FILTER ASSEMBLY

8H8-24560-00-00

1
Out of stock

35

WASHER, PLATE

90201-06020-00

—
Out of stock

36

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

37

WASHER, SPRING

92995-06100-00

1
Out of stock

38

GAUGE, LEVEL

(8H8-21761-00-00)

1
Out of stock

39

SCREW, PAN

98517-06012-00

—
Out of stock

40

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

40

WASHER(6TA)

92907-06600-00

—
Out of stock

41

SPRING, COMPRESSION(8AF)

90501-083J8-00

1
Out of stock

42

PROTECTOR, PIPE

8K1-24326-00-00

1
Out of stock
