1978 Yamaha DT175E (DT175E) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1978 Yamaha DT175E (DT175E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

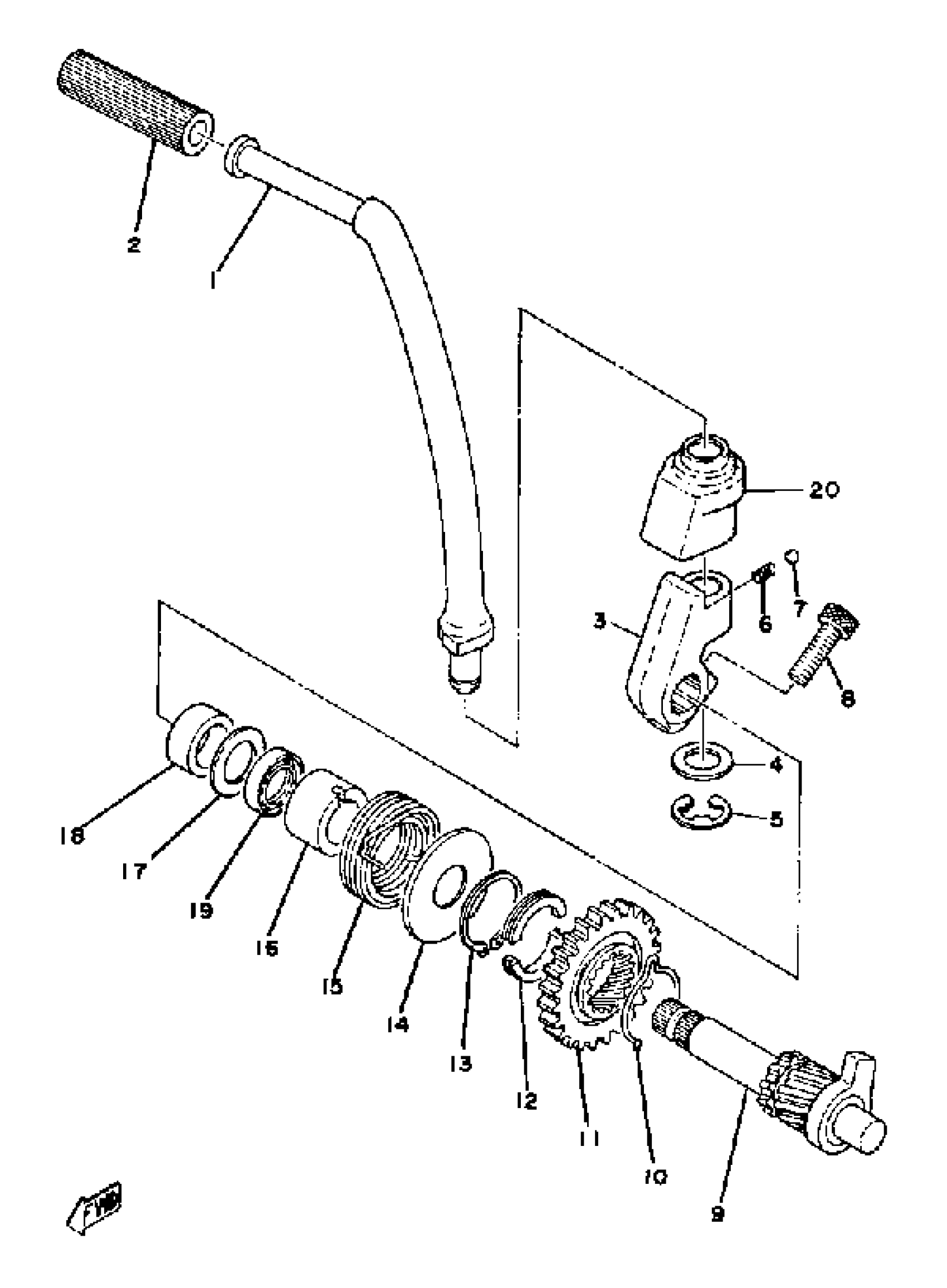

1978 Yamaha DT175E (DT175E) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSY

2A6-15620-02-00

—

$127.17

In stock

2

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

3

BOSS, KICK CRANK

1W1-15621-01-00

—

$92.40

In stock

4

WASHER, PLATE (525)

90201-12541-00

1
Out of stock

5

CIRCLIP (137)

93430-08007-00

1

$6.17

In stock

6

SPRING, COMPRESSION (1W1)

90501-10459-00

1
Out of stock

7

BALL

93503-16003-00

1

$2.14

In stock

8

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

9

KICK AXLE ASSEMBLY

2A6-15660-01-00

1
Out of stock

10

CLIP 315156870000

90468-26048-00

1
Out of stock

11

GEAR, KICK

1W1-15641-00-00

—
Out of stock

12

HOLDER, KICK GEAR

248-15654-00-00

1

$6.49

In stock

13

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

14

COVER, SPRING

401-15676-00-00

1

$6.43

In stock

15

SPRING, TORSION (1W1)

90508-26346-00

—

$16.45

In stock

16

SPACER, KICK AXLE SPRING

1W1-15666-00-00

—

$15.17

In stock

17

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

18

SPACER

90560-17032-00

1
Out of stock

19

OIL SEAL (17X25X4-401)

93101-17062-00

—

$12.58

In stock

20

COVER, KICK CRANK BOSS

1W1-15618-01-00

—

$34.11

In stock
