1978 Yamaha DT175E (DT175E) Crank Piston Diagram

← All diagrams

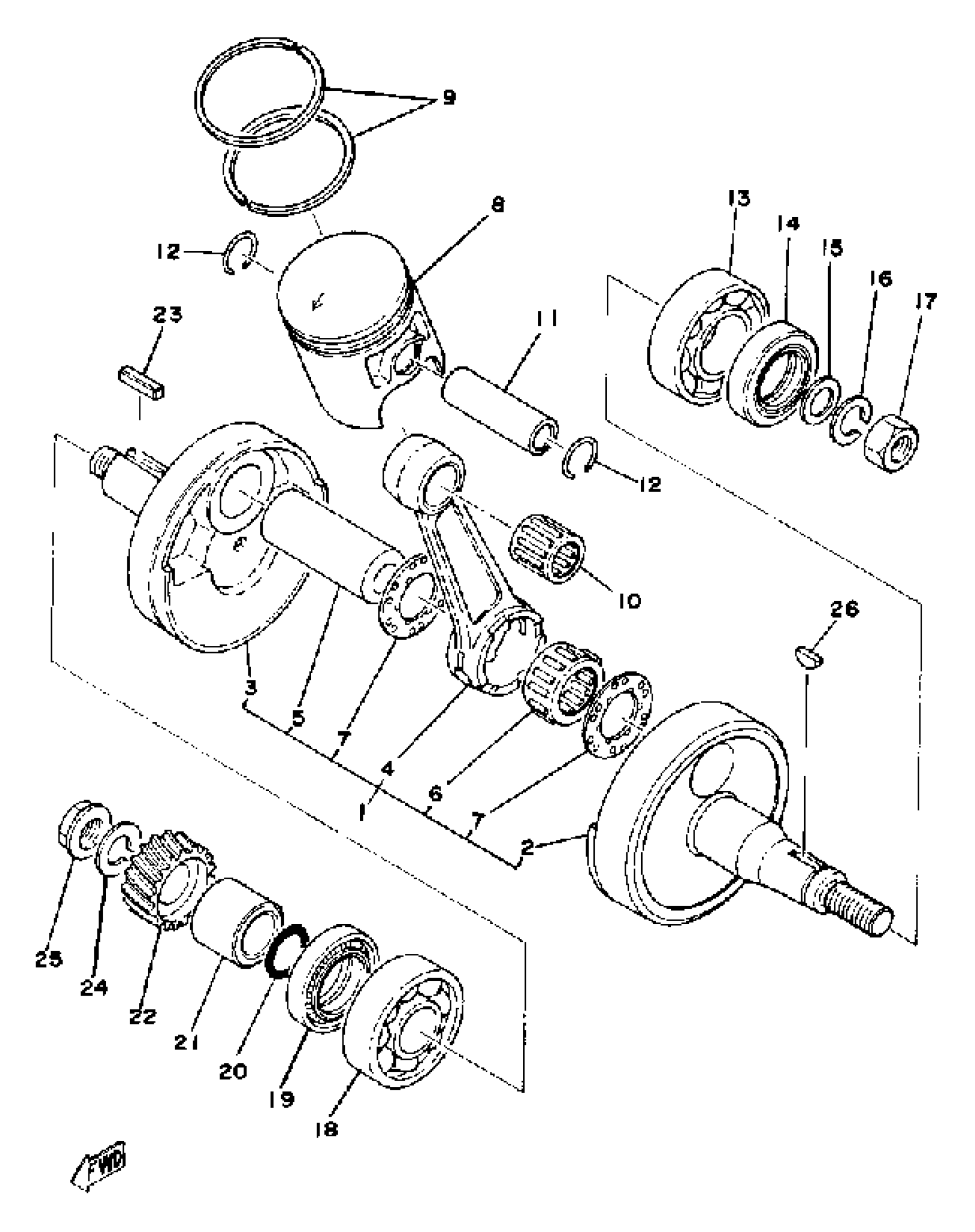

Find the part on the Crank Piston diagram for your 1978 Yamaha DT175E (DT175E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT175E (DT175E) Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

2N4-11400-00-00

1
Out of stock

2

CRANK (L.H)

1W1-11412-01-00

—

$257.00

In stock

3

CRANK (R.H)

1W1-11422-01-00

—

$132.11

In stock

4

. ROD, CONNECTING 1

25V-11651-00-00

1
Out of stock

5

PIN, CRANK 1

3M5-11681-00-00

1

$21.97

In stock

6

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

7

WASHER (29L)

90209-22248-00

—
Out of stock

8

PISTON STD (2A7-11631-00-96)

2N5-11631-00-96

1
Out of stock

8

PISTON 1 O/S 0.25 (2A7-11635-00)

2N5-11635-00-00

1
Out of stock

8

PISTON (2ND O/S)

2N5-11636-00-00

—

$161.20

In stock

8

PISTON 3 O/S 0.75 (2A7-11637-00)

2N5-11637-00-00

1
Out of stock

8

PISTON 4 O/S 1.00 (2A7-11638-00)

2N5-11638-00-00

1
Out of stock

9

PISTON RINGSET STD

2N5-11610-00-00

1
Out of stock

9

PISTON RING SET (1ST O/S)

2N5-11610-10-00

1

$38.97

In stock

9

PISTON RINGSET 2ND

2N5-11610-20-00

1
Out of stock

9

PISTON RINGSET 3RD

2N5-11610-30-00

1
Out of stock

9

PISTON RINGSET 4TH

2N5-11610-40-00

1
Out of stock

10

—

$23.03

In stock

11

PIN, PISTON

251-11633-00-00

—

$23.85

In stock

12

CIRCLIP (1L9)

93450-17044-00

—

$5.10

In stock

13

—

$35.25

In stock

14

OIL SEAL (25X40X8-248)

93102-25061-00

—

$11.00

In stock

15

WASHER, PLATE (583)

90201-12593-00

—

$6.82

In stock

16

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

17

NUT(55K)

90170-12347-00

—

$8.43

In stock

18

—

$54.91

In stock

19

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

20

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

21

COLLAR, DISTANCE (525)

90387-20488-00

—

$21.72

In stock

22

GEAR, PRIMARY DRIVE

4FU-16111-00-00

—
Out of stock

23

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

24

WASHER, SPRING (1W1)

90204-12007-00

—

$6.92

In stock

25

NUT(1EE)

90179-12659-00

—

$5.37

In stock

26

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock
