1978 Yamaha DT175E (DT175E) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1978 Yamaha DT175E (DT175E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

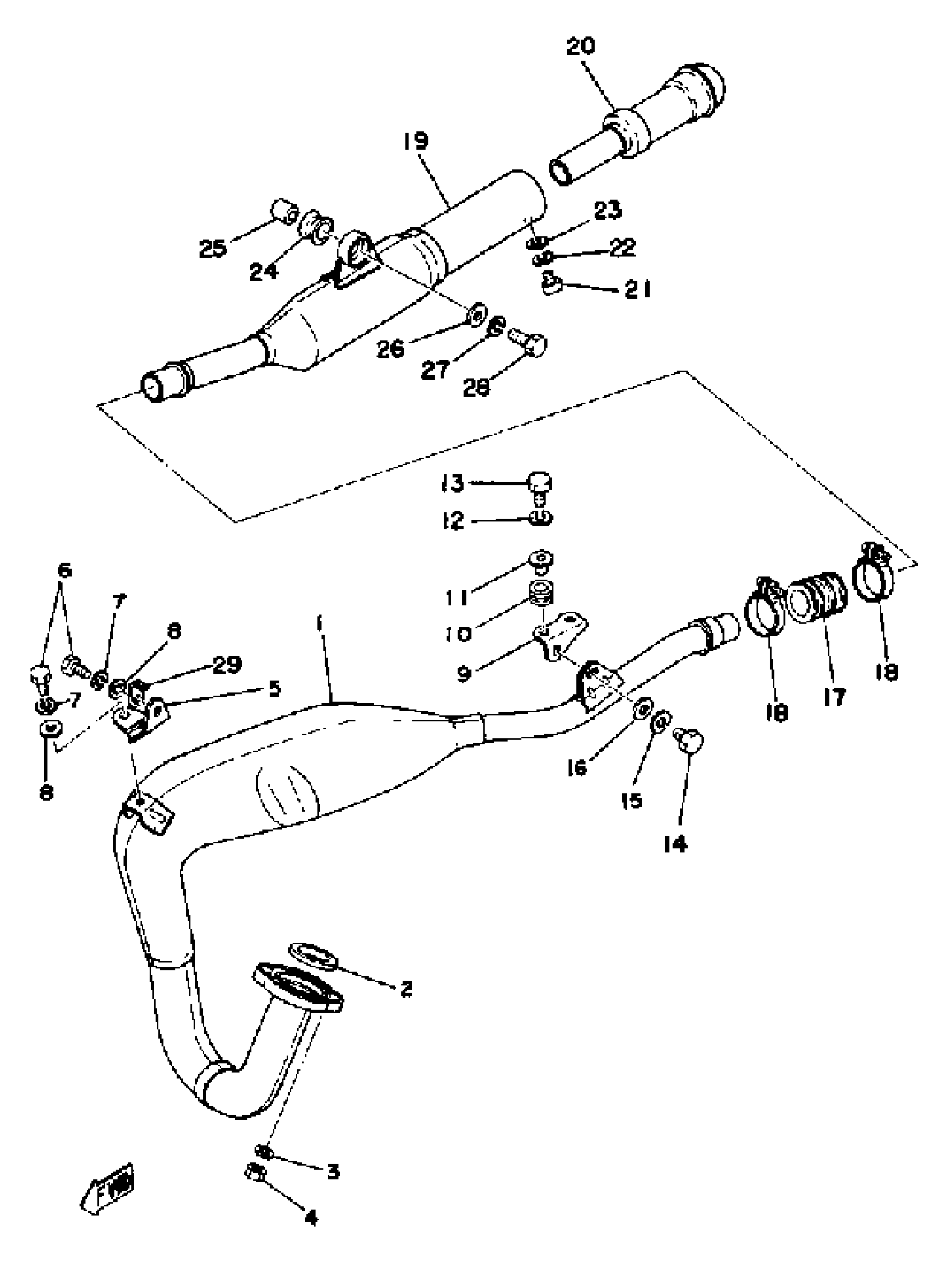

1978 Yamaha DT175E (DT175E) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L (2A8-14610-00-00)

2A8-14610-81-00

1
Out of stock

2

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

3

WASHER, SPRING

92995-06100-00

1
Out of stock

4

NUT, HEXAGON

95380-06600-00

1
Out of stock

5

STAY, MUFFLER 2

2A6-14772-01-00

1
Out of stock

6

BOLT(JA9)

90101-08691-00

1
Out of stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

8

.. WASHER, PLATE

92990-08600-00

1
Out of stock

9

STAY, MUFFLER 1

5V7-14771-00-00

1
Out of stock

10

GROMMET 839774310000

90480-14023-00

1
Out of stock

11

COLLAR

90387-06158-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1
Out of stock

13

BOLT, HEXAGON

97017-06025-00

1
Out of stock

14

BOLT(JA9)

90101-08691-00

1
Out of stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

16

.. WASHER, PLATE

92990-08600-00

1
Out of stock

17

GASKET, MUFFLER JOINT

1W2-14714-00-00

—
Out of stock

18

CLAMP, HOSE

90460-37130-00

1
Out of stock

19

SILENCER, EXHAUST

2A6-14753-00-00

1
Out of stock

20

PIPE, OUTLET

1M1-14752-01-00

1
Out of stock

21

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

22

WASHER, SPRING

92995-06100-00

1
Out of stock

23

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

24

DAMPER

565-14747-00-00

—
Out of stock

25

COLLAR (437)

90387-08258-00

—
Out of stock

26

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

28

BOLT, HEXAGON

97013-08030-00

—
Out of stock

29

CLAMP

2A6-83596-00-00

1
Out of stock
