1978 Yamaha DT175E (DT175E) Crankcase Cover Diagram

← All diagrams

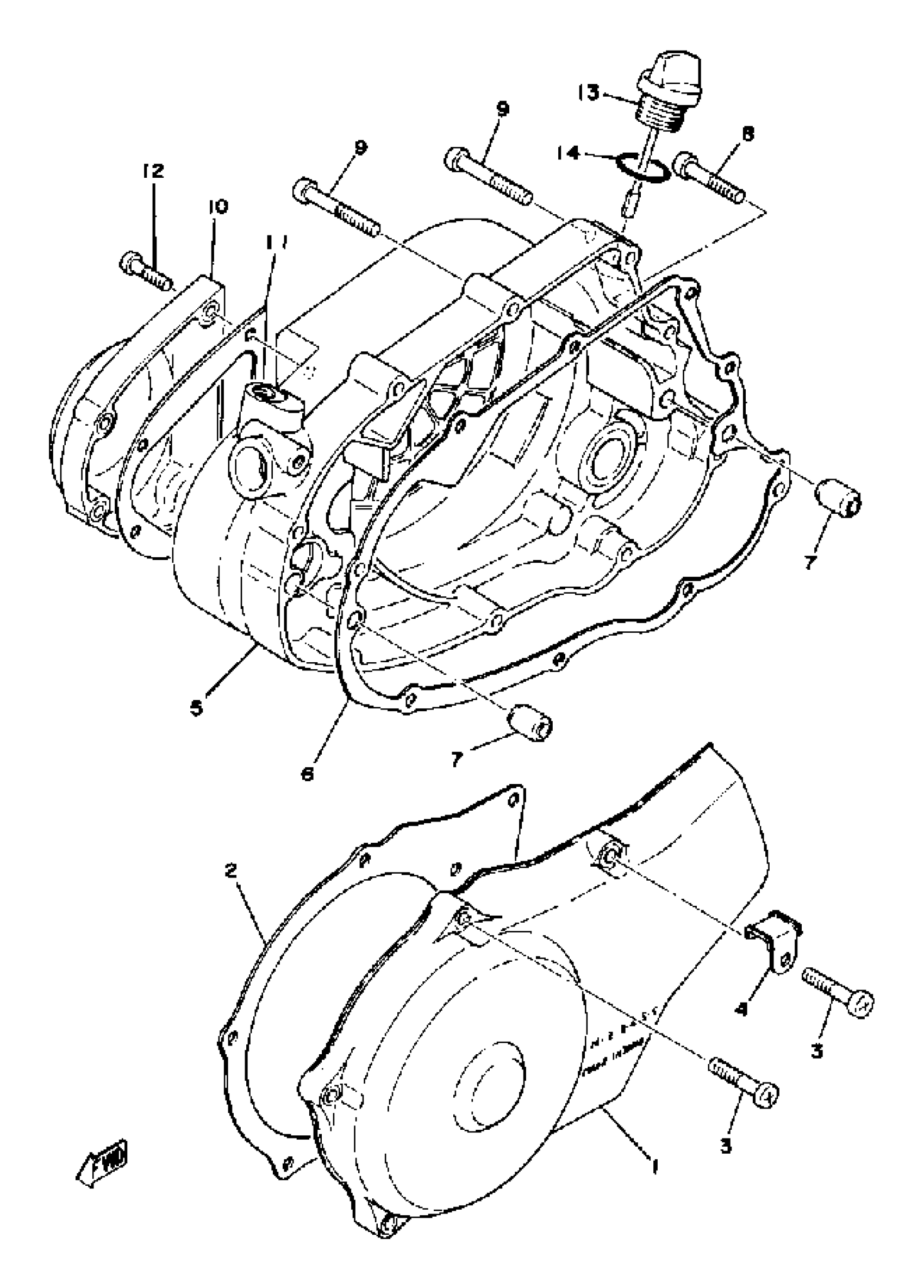

Find the part on the Crankcase Cover diagram for your 1978 Yamaha DT175E (DT175E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT175E (DT175E) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, CRANK (L.H)

2A7-15411-01-00

1
Out of stock

2

GASKET 1

2A6-15455-01-00

1
Out of stock

3

SCREW, PAN HEAD (76T)

98517-06025-00

1
Out of stock

4

CLAMP 2

2A6-15484-01-00

1
Out of stock

5

COVER, CRANKCASE 3

2A6-15431-00-00

1
Out of stock

6

GASKET, CRANKCASE COVER 1

18G-15451-03-00

1
Out of stock

7

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

8

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

9

SCREW PAN HEAD

98580-06040-00

1
Out of stock

10

COVER, OIL PUMP

2A6-15416-00-00

1
Out of stock

11

GASKET, OIL PUMP COVER 1

2A6-15456-01-00

1
Out of stock

12

SCREW, PAN HEAD (76T)

98517-06025-00

1
Out of stock

13

PLUG, OIL LEVEL

401-15362-00-00

1
Out of stock

14

O-RING (646)

93210-19123-00

—
Out of stock
