2000 Can-Am DS 650, 7404 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2000 Can-Am DS 650, 7404, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

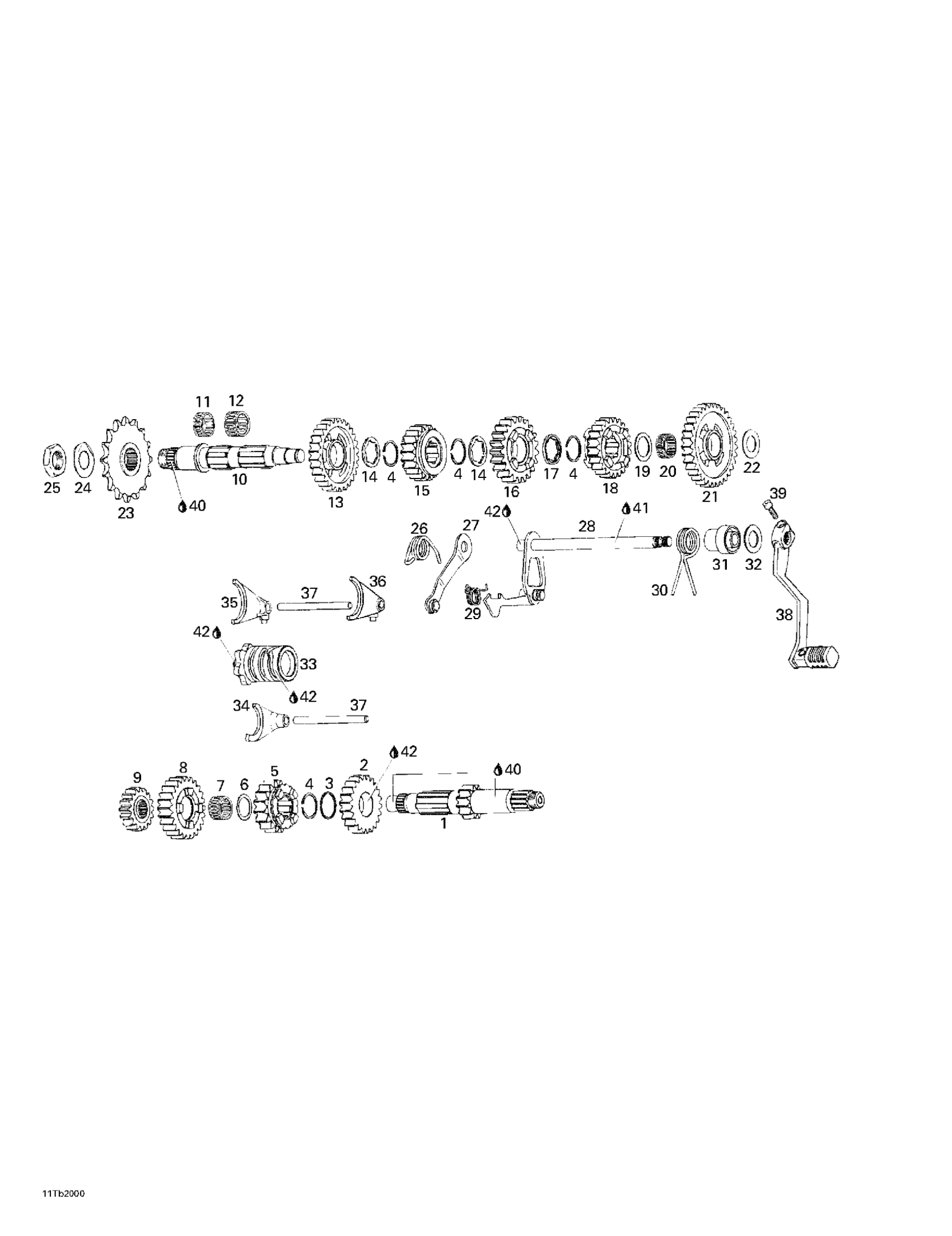

2000 Can-Am DS 650, 7404 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Clutch Shaft (12 Teeth)

711220230

—
Out of stock

2

Intermediate Gear (21 Teeth)

711234715

—
Out of stock

3

Thrust Washer

711227825

—
Out of stock

4

Circlip

420445302

4
Out of stock

5

Pinion Gear (18 Teeth)

711634333

—
Out of stock

6

Thrust Washer

711227445

—
Out of stock

7

Needle Bearing

711232805

—
Out of stock

8

Intermediate Gear (23 Teeth)

711234725

—
Out of stock

9

Pinion Gear (15 Teeth)

711234675

—
Out of stock

10

Main Shaft

711220730

—
Out of stock

11

NEEDLE BEARING - Call your local BRP dealership

420232520

—
Out of stock

12

Needle Bearing

420232530

1
Out of stock

13

Intermediate Gear (29 Teeth)

711634305

—
Out of stock

14

Thrust Ring

711627051

—
Out of stock

15

Pinion Gear (22 Teeth)

711634345

—
Out of stock

16

Intermediate Gear (26 Teeth)

711234705

—
Out of stock

17

Angular Ring

711627061

—
Out of stock

18

Pinion Gear (24 Teeth)

711634355

—
Out of stock

19

Thrust Washer

711244100

—
Out of stock

20

Needle Bearing

420232742

1
Out of stock

21

Gear (33 Teeth)

711634290

—
Out of stock

22

THRUST WASHER - Call your local BRP dealership

420227430

—
Out of stock

23

Chain Wheel

711236470

—
Out of stock

24

Tab Washer

420245391

1
Out of stock

25

Ecrou Hex.M20 *Nut-Hex.M20

420242656

1
Out of stock

26

Index Spring

711239095

—
Out of stock

27

Index Lever

711248346

—
Out of stock

28

Shift-Shaft

711237929

—
Out of stock

29

Spring

711239075

—
Out of stock

30

Spring

711239082

—
Out of stock

31

Spacer

711247900

—
Out of stock

32

THRUST WASHER - Call your local BRP dealership

420227430

—
Out of stock

33

Drum-Shift

711258275

—
Out of stock

34

Fork-Shift

711258037

—
Out of stock

35

Fork-Shift

711258027

—
Out of stock

36

Fork-Shift

711258017

—
Out of stock

37

Fork Spindle

711258782

—
Out of stock

38

SHIFTER PEDAL - Call your local BRP dealership

711248317

—
Out of stock

39

1

$1.07

In stock

40

1

$23.82

In stock

41

Grease, Super Lube

293550030

1
Out of stock

42

Not Available As Spare Part - Friction Washer

—
Out of stock

43

Rubber Sleeve

711260205

—
Out of stock
