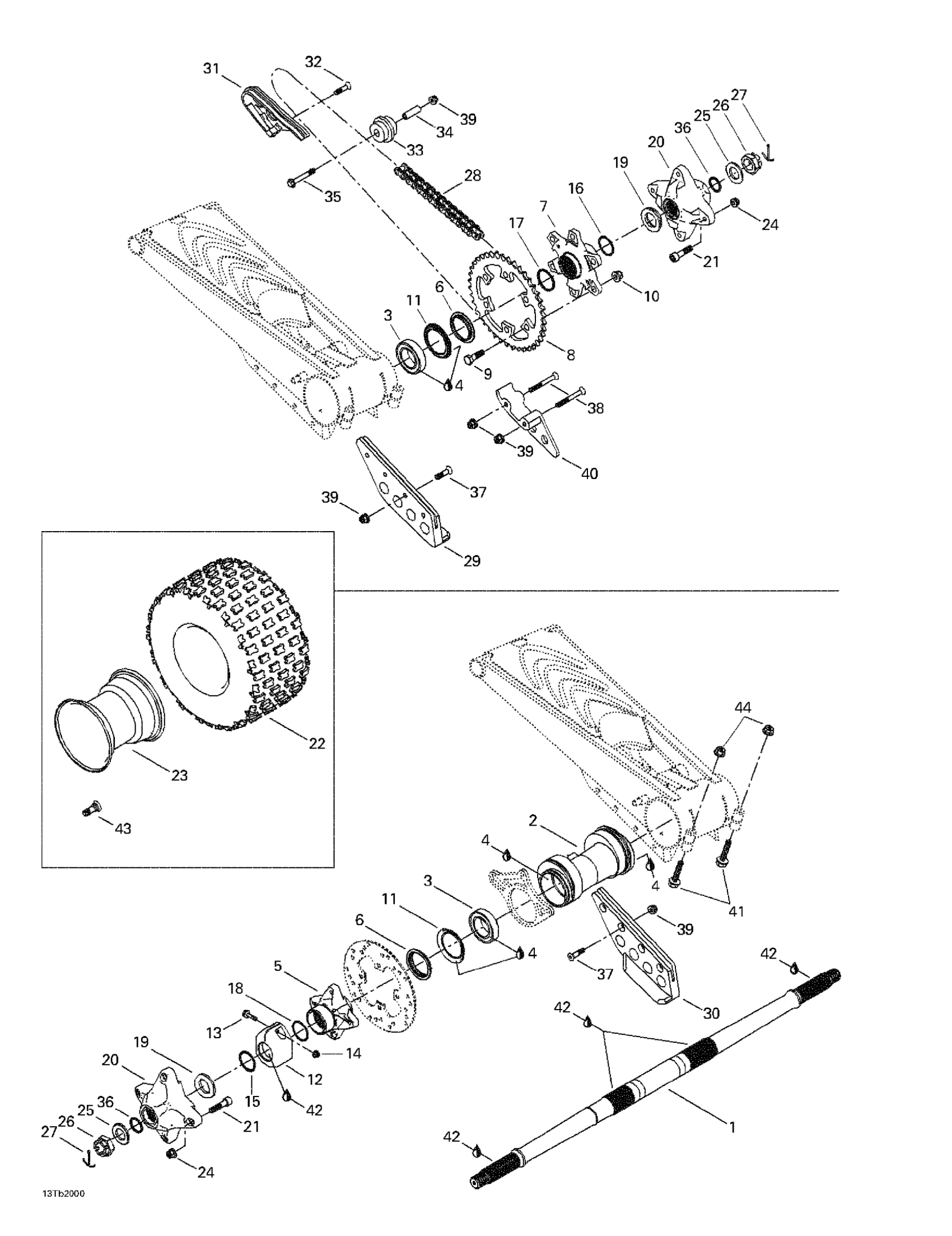

Can-Am DS 650, 7404, 2000 Drive System, Rear Diagram

#

Description
Price

1

Drive Axle

705500051

Unavailable

2

CHAIN TIGHTENER - Call your local BRP dealership

705500056

Unavailable

3

Cone Bearing

293350043

$32.28

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Disc Brake Hub Ass'y

705500190

Unavailable

6

WEAR RING - Call your local BRP dealership

705500191

Unavailable

7

Sprocket Hub

705500192

Unavailable

8

Sprocket, 40 Teeth

705500054

Unavailable

9

Screw, Modified

250000034

Unavailable

10

Elastic Stop Nut M12

232521416

Unavailable

11

Joint Etanche *Oil Seal

293250222

$18.43

12

Adjusting Nut

705500204

Unavailable

13

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15

RING RETAINER - Call your local BRP dealership

705500065

$5.68

16

RING RETAINER - Call your local BRP dealership

705500108

$5.52

17

O-Ring

293300059

$7.31

18

O-RING - Call your local BRP dealership

293300060

$5.35

19

RING SUPPORT - Call your local BRP dealership

705500067

Unavailable

20

Wheel Hub

705500069

Unavailable

21

SCREW-SOCKET DIN.912 S.GRIP - Call your local BRP dealership

205504044

Unavailable

22

Rear Tire

705500063

Unavailable

23

Rear Rim

705500064

Unavailable

24

Flange Nut M10

732610084

Unavailable

25

HARDENED WASHER - Call your local BRP dealership

250200004

$5.45

26

HEX. CASTELLATED NUT M24 - Call your local BRP dealership

250100006

$9.40

27

Cotter Pin

371003400

Unavailable

28

Chain

705500052

$234.58

29

RH Protector

705500053

Unavailable

30

LH Protector

705500114

Unavailable

31

Slider-Shoe

705500071

Unavailable

32

Socket Head Screw M8 X 20, Scotch Grip

205882044

Unavailable

33

Chain Roller

705500070

Unavailable

34

Bushing

705500115

Unavailable

35

Hex. Flange Screw M8 x 60

207686044

$2.56

36

O-Ring

293300064

Unavailable

37

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205383544

Unavailable

38

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

205387044

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

PROTECTOR - Call your local BRP dealership

705500116

$16.12

41

Hex. Flange Screw M10 X 60

207606044

Unavailable

42

Graisse *Grease

293550062

$15.35

43

Rim Valve With Cap

705400193

Unavailable

44

Hex. Flange Elastic Nut M10

233201414

$1.26

45

THRUST WASHER - Call your local BRP dealership

705500206

Unavailable

46

Loctite 243, 10 ml

293800060

$20.77
