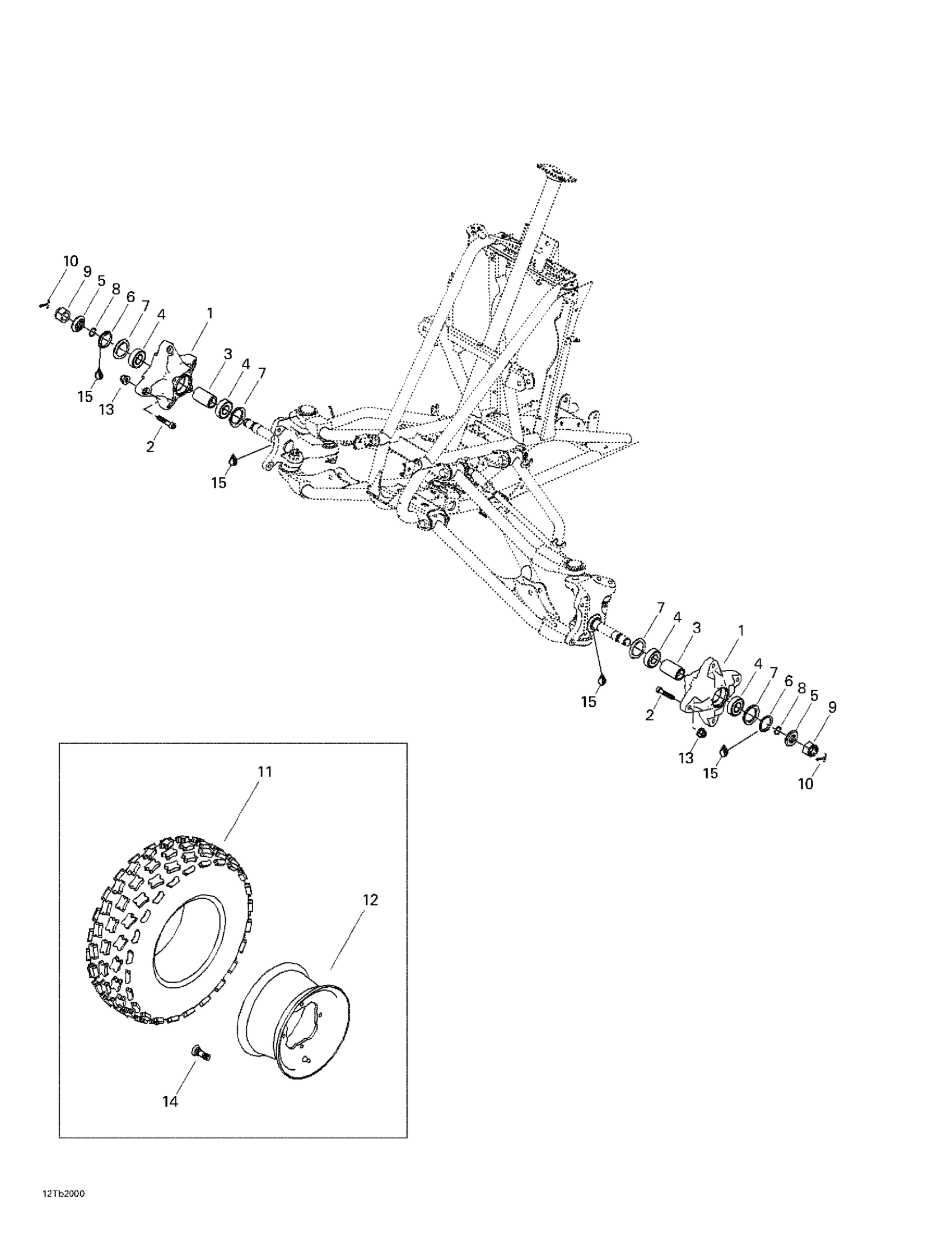

Can-Am DS 650, 7404, 2000 Drive System, Front Diagram

#

Description
Price

1

Wheel Hub

705400045

Unavailable

2

SCREW-SOCKET DIN.912 S.GRIP - Call your local BRP dealership

205504044

Unavailable

3

INSIDE BUSHING - Call your local BRP dealership

293900032

$16.89

4

Ball Bearing

293350024

Unavailable

5

OUTSIDE BUSHING - Call your local BRP dealership

293900033

Unavailable

6

WEAR RING - Call your local BRP dealership

705400056

Unavailable

7

SEAL - Call your local BRP dealership

293250094

$25.35

8

O-RING - Call your local BRP dealership

293300058

$5.35

9

Hex. Flange Castellated Nut M18

232291413

Unavailable

10

Cotter Pin

371003400

Unavailable

11

Front Tire

705400049

Unavailable

12

Front Rim

705400048

Unavailable

13

Flange Nut M10

732610084

Unavailable

14

Rim Valve With Cap

705400193

Unavailable

15

Synthetic Grease, 400 G

293550010

Unavailable
