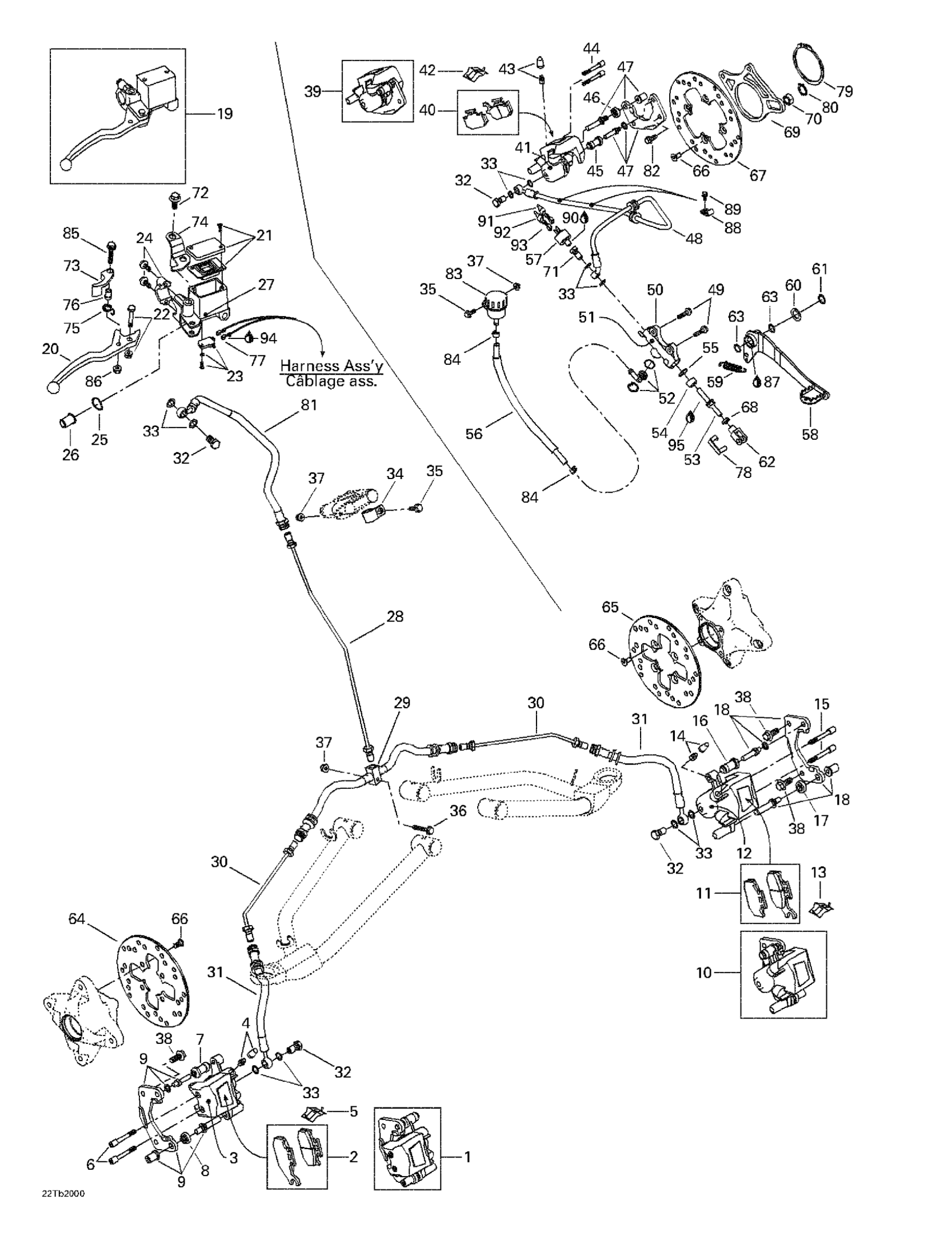

Can-Am DS 650, 7404, 2000 Hydraulic Brake Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 To 9

705600043

$174.58

2

Brake Pad Kit

705600004

Unavailable

3

Piston Set

705600078

$36.89

4

Bleeding Screw

705600080

Unavailable

5

Spring

705600079

Unavailable

6

Pin Set (2)

705600081

Unavailable

7

Compression Boot

705600082

Unavailable

8

Compression Boot

705600083

Unavailable

9

RH BRAKE SUPPORT - Call your local BRP dealership

705600062

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 To 18

705600044

Unavailable

11

Brake Pad Kit

705600014

Unavailable

12

Piston Set

705600078

$36.89

13

Spring

705600079

Unavailable

14

Bleeding Screw

705600080

Unavailable

15

Pin Set (2)

705600081

Unavailable

16

Compression Boot

705600082

Unavailable

17

Compression Boot

705600083

Unavailable

18

LH BRAKE SUPPORT - Call your local BRP dealership

705600061

$47.66

19

MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600045

Unavailable

20

ARM LEVER - Call your local BRP dealership

705600057

Unavailable

21

Cap Set

705600084

$23.05

22

BOLT KIT - Call your local BRP dealership

705600085

$13.05

23

SWITCH KIT - Call your local BRP dealership

705600086

$19.97

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

27

Piston Kit

705600058

Unavailable

28

Vertical Hose

705600047

Unavailable

29

Flexible Hose

705600048

Unavailable

30

Horizontal Tube

705600070

Unavailable

31

Brake Hose

705600071

Unavailable

32

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

33

Washer

414920600

Unavailable

34

Open Clamp

705600040

$12.91

35

Hex. Flange Screw M6 X 20

207662044

Unavailable

36

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

38

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

39

Rear Caliper | Includes 39 To 47

705600599

Unavailable

40

Brake Pad Kit

705600014

Unavailable

41

Piston Set

705600078

$36.89

42

Spring

705600079

Unavailable

43

Bleeding Screw

705600080

Unavailable

44

Pin Set (2)

705600081

Unavailable

45

Compression Boot

705600082

Unavailable

46

Compression Boot

705600083

Unavailable

47

BRAKE SUPPORT ASS'Y - Call your local BRP dealership

705600017

Unavailable

48

BRAKE LINE - Call your local BRP dealership

705601393

$69.97

49

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

50

Master Cylinder Ass'y

705600050

Unavailable

51

Piston Set

705600063

Unavailable

52

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

53

Rod Ass'y

705600065

Unavailable

54

Compression Boot

705600090

Unavailable

55

Master Cylinder

705600117

$167.66

56

Hose

705600108

Unavailable

57

Interrupteur *Brake Switch

710001345

Unavailable

58

Brake Pedal

705600094

Unavailable

59

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

$9.20

60

WASHER - Call your local BRP dealership

503107800

$2.03

61

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

62

Yoke

705600100

Unavailable

63

O-RING - Call your local BRP dealership

293300053

$5.35

64

RH BRAKE DISC - Call your local BRP dealership

705600042

$63.05

65

LH BRAKE DISC - Call your local BRP dealership

705600093

$61.51

66

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

67

Brake Disc

705500059

Unavailable

68

Hex. Jam Nut M8

232180600

Unavailable

69

Caliper Support

705500066

Unavailable

70

Caliper Guide

705500068

Unavailable

71

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

72

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

73

LEVER ARM - Call your local BRP dealership

705600095

$31.51

74

Lever Stopper

705600096

$12.28

75

SPRING - Call your local BRP dealership

705600055

$5.35

76

SNAP RING - Call your local BRP dealership

705600097

$9.97

77

Female Terminal

710000082

$6.03

78

Pin Kit

219702305

Unavailable

79

CIRCLIP - Call your local BRP dealership

293370014

$8.43

80

CIRCLIP - Call your local BRP dealership

293370015

$4.05

81

Brake Handle Hose

705600007

Unavailable

82

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

83

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

84

Spring Clamp

414415200

$0.83

85

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

87

Synthetic Grease, 400 G

293550010

Unavailable

88

CLIP - Call your local BRP dealership

414351600

$2.89

89

Hex. Flange Screw M6 X 16

210261650

$1.22

90

Was 293800013 Loctite 56765

219704454

Unavailable

91

Insulated Sheath

278001007

Unavailable

92

Insulated Sheath

278000770

Unavailable

93

Female Terminal | DS 650 X

278001009

Unavailable

94

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

95

Not Available As Spare Part - Friction Washer

Unavailable

96

Circlip

705600068

Unavailable

97

Tie-Rap 180 mm

414115200

$0.09

98

Grommet

293720046

Unavailable
