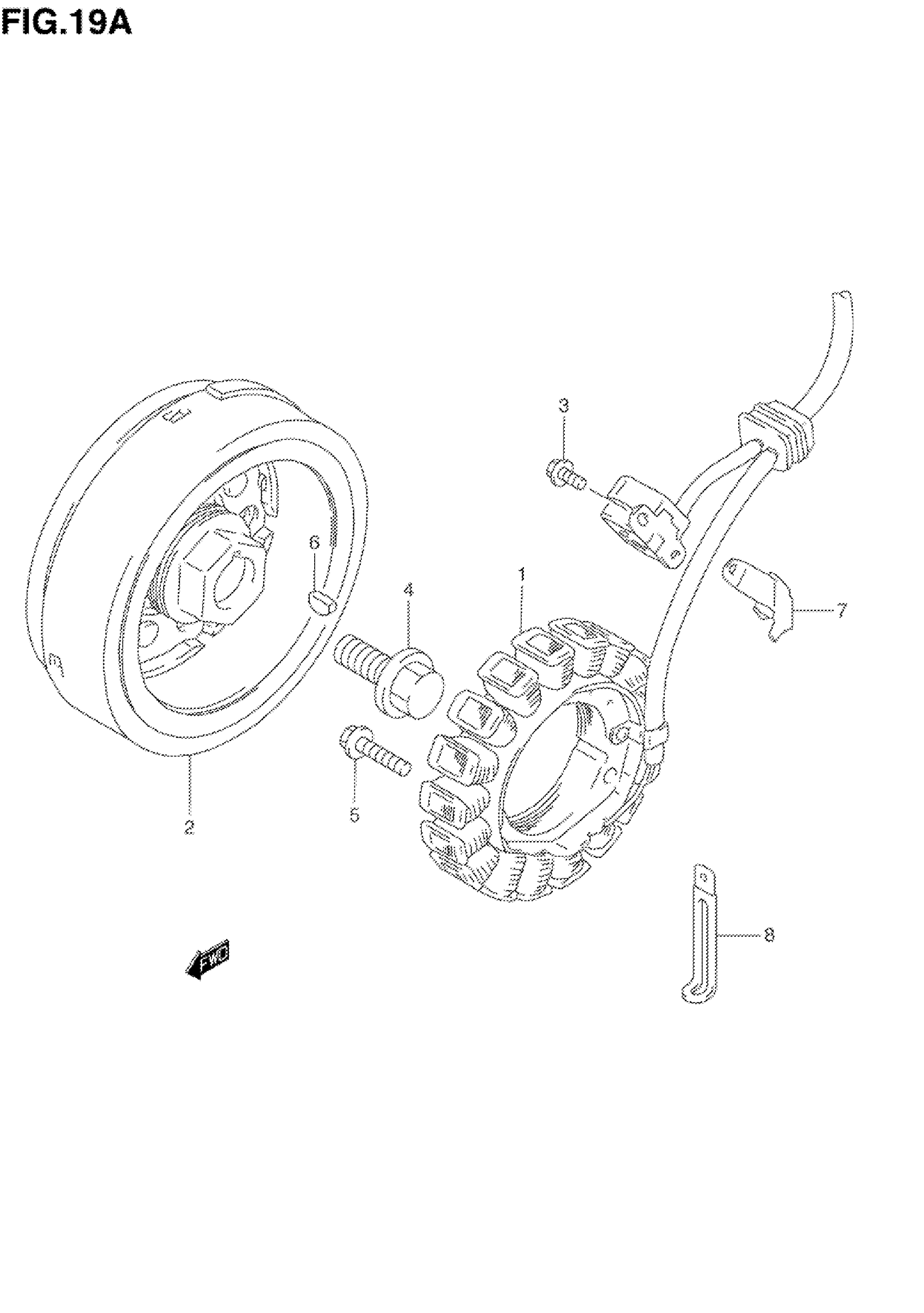

Suzuki DR650SES (1995) MAGNETO (MODEL R/S) Diagram

#

Description
Price

1

STATOR ASSY

32101-12D10

Unavailable

2

ROTOR

32102-12D10

Unavailable

3

BOLT This part replaces 01547-05103.

01547-0510B

$3.22

4

BOLT

09103-14001

$12.85

5

BOLT, FINAL GEAR CASE | MODEL R This part replaces 01547-06303.

01547-0630B

$2.73

5

BOLT | MODEL S This part replaces 07130-06303.

07130-0630B

$3.04

6

KEY

09420-05007

$5.00

7

CLAMP

32371-12D20

Unavailable

8

CLAMP This part replaces 09404-06402.

09404-06039

$1.73
