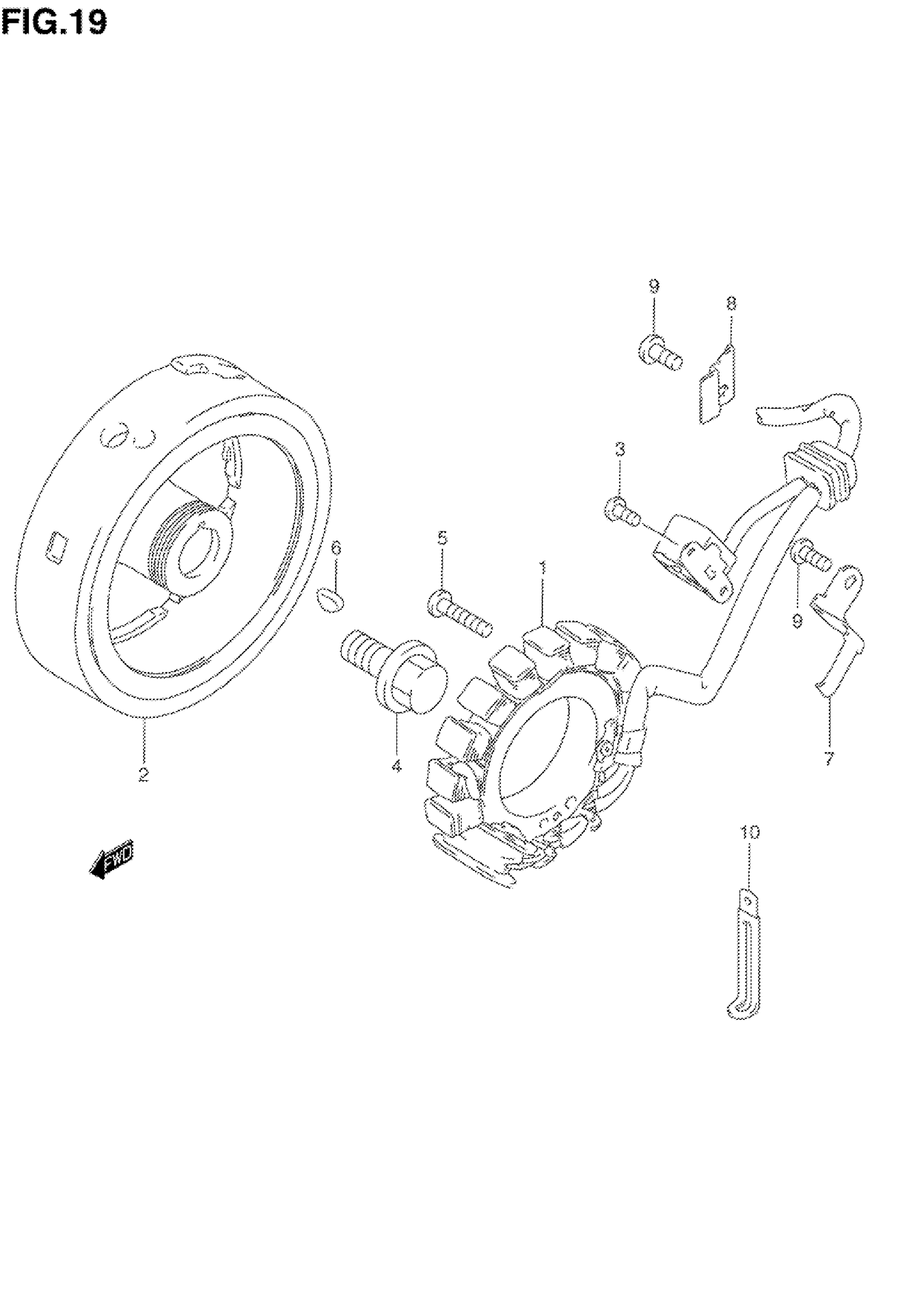

Suzuki DR650SES (1995) MAGNETO (MODEL N/P) Diagram

#

Description
Price

1

STATOR ASSY

32101-12D00

Unavailable

2

ROTOR

32102-12D00

Unavailable

3

SCREW This part replaces 02112-05128.

02112-05127

$1.97

4

BOLT

09103-14001

$12.85

5

SCREW

02112-06257

$1.68

6

KEY This part replaces 08341-31049.

09420-04008

$3.08

7

CLAMP

32371-14A00

Unavailable

8

CLAMP

32371-12D10

Unavailable

9

SCREW This part replaces 02112-06108.

02112-06107

$1.45

10

CLAMP This part replaces 09404-06402.

09404-06039

$1.73

11

REFER TO FIG.19A (D-11) FOR

SPECIAL NOTE

Unavailable
