1995 Suzuki DR650SES Left Handle Switch Diagram

← All diagrams

Find the part on the Left Handle Switch diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

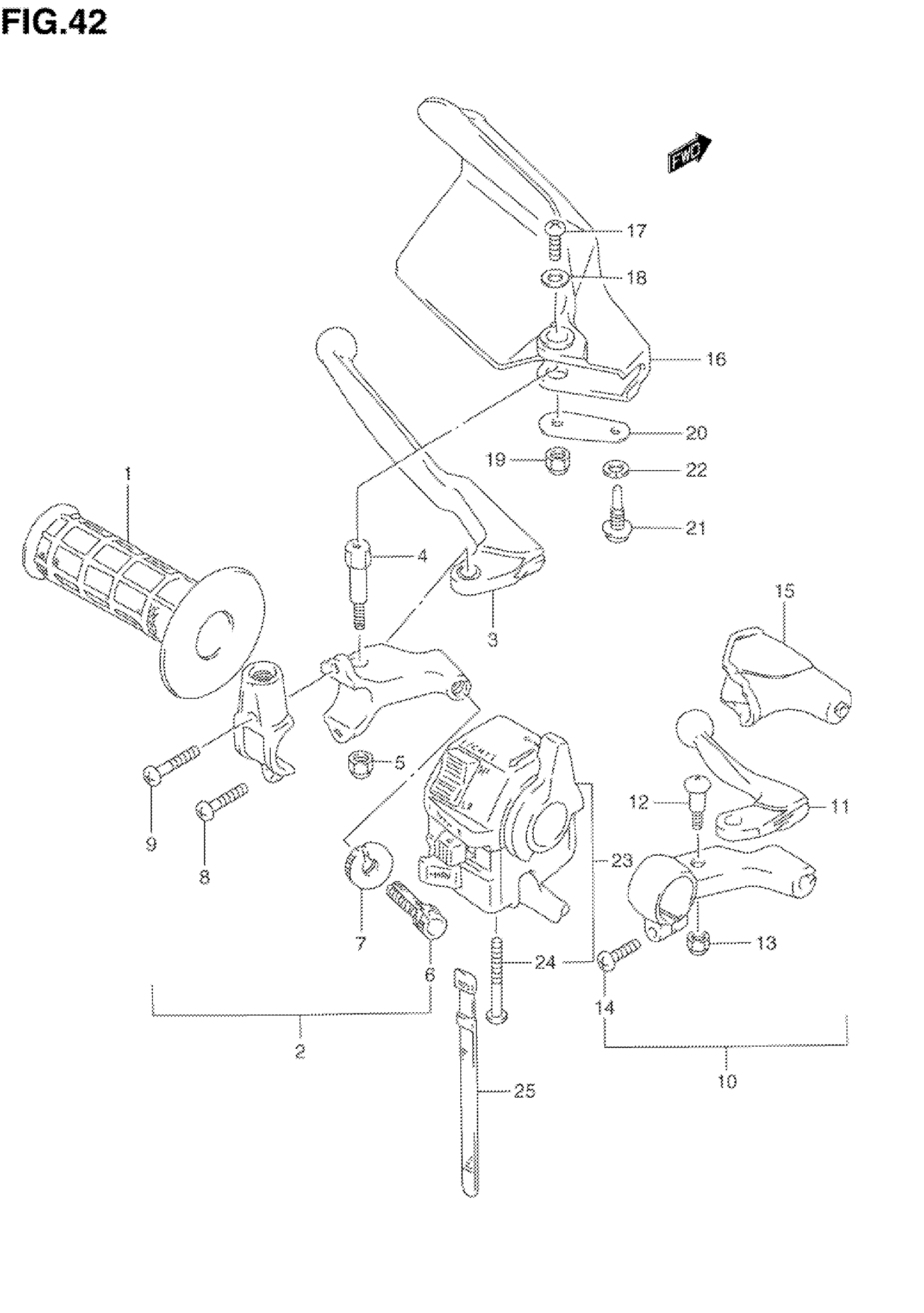

1995 Suzuki DR650SES Left Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP L

57211-12D00

1
Out of stock

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 9

57500-12E00

1
Out of stock

3

LEVER, CLUTCH

57620-14310

1
Out of stock

4

BOLT

57631-05D00

1
Out of stock

5

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

6

ADJUSTER, CABLE

57441-11010

1
Out of stock

7

NUT

57442-05D00

1
Out of stock

8

SCREW This part replaces 37591-49210.

09125-05102

1
Out of stock

9

SCREW, UPPER

09125-05065

1
Out of stock

10

LEVER ASSY,DECO | Includes Item(s) 11 - 14 This part replaces 58700-38200.

58700-38210

1
Out of stock

11

LEVER

58731-38200

1
Out of stock

12

BOLT

57431-01012

1
Out of stock

13

NUT

57633-38200

1
Out of stock

14

1

$1.55

In stock

15

COVER, DECOMP LEVER

57342-37101

1
Out of stock

16

COVER, KNUCKLE, LH (WHITE) | MODEL N

57541-05D01-30H

1
Out of stock

16

COVER, KNUCKLE, LH (BLUE) | MODEL P

57541-05D01-0NF

1
Out of stock

17

SCREW

09125-05042

1
Out of stock

18

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

1
Out of stock

19

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

20

PLATE, COVER, LOWER

57542-05D00

1
Out of stock

21

SCREW This part replaces 09139-06010.

09139-06086

1
Out of stock

22

1

$2.28

In stock

23

SWITCH ASSY, HANDLE LH | Includes Item(s) 24 This part replaces 37400-12E10.

37400-12E11

1
Out of stock

24

.SCREW This part replaces 02112-05455.

02112-0545B

2
Out of stock

25

BAND | MODEL N

09407-12402

1
Out of stock

26

REFER TO FIG.42A(G-12) FOR

SPECIAL NOTE

—
Out of stock
