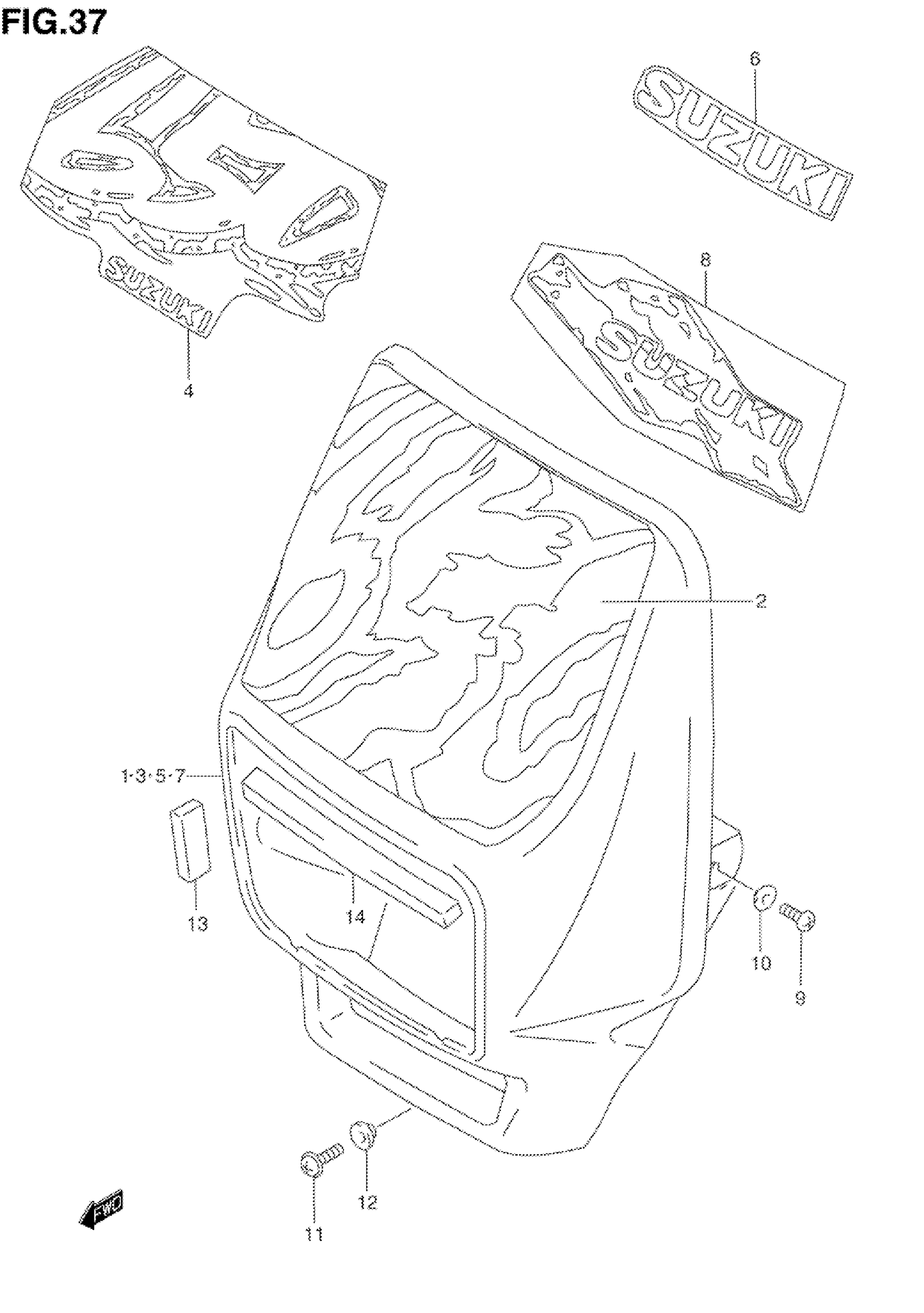

Find the part on the Headlamp Housing diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR650SES Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEAD LAMP (WHITE) | MODEL N->51811-12E00-30H; Includes Item(s) 2 This part replaces 51800-12E10-28X.

51811-12E00-30H

1
Out of stock

2

TAPE, HEADLAMP COVER | MODEL N

68725-12E10-M82

1
Out of stock

3

COVER, HEAD LAMP (WHITE) | MODEL P->51811-12E00-30H; Includes Item(s) 4 This part replaces 51800-12E20-28X.

51811-12E00-30H

1
Out of stock

4

TAPE, HEADLAMP COVER | MODEL P

68725-12E20-A4F

1
Out of stock

5

COVER, HEAD LAMP (WHITE) | MODEL R->51811-12E00-30H; Includes Item(s) 6 This part replaces 51800-12E40-30H.

51811-12E00-30H

1
Out of stock

6

EMBLEM, SUZUKI | MODEL R

68174-35B00-A2L

1
Out of stock

7

COVER, HEAD LAMP (WHITE) | WITHOUT TAPE/EMBLEMMODEL S

51811-12E00-30H

1
Out of stock

8

TAPE, HEAD LAMP COVER | MODEL S

68725-14E00-D1R

1
Out of stock

9

SCREW, COVER SIDE

02142-06127

2
Out of stock

10

WASHER, COVER SIDE

09169-06011

2
Out of stock

11

SCREW, COVER LOWER | MODEL R/S

02142-05127

1
Out of stock

12

WASHER, COVER LOWER

09161-05017

1
Out of stock

13

CUSHION This part replaces 51827-12E00.

51827-01A00

2
Out of stock

14

CUSHION, UPPER

51828-12E00

1
Out of stock
