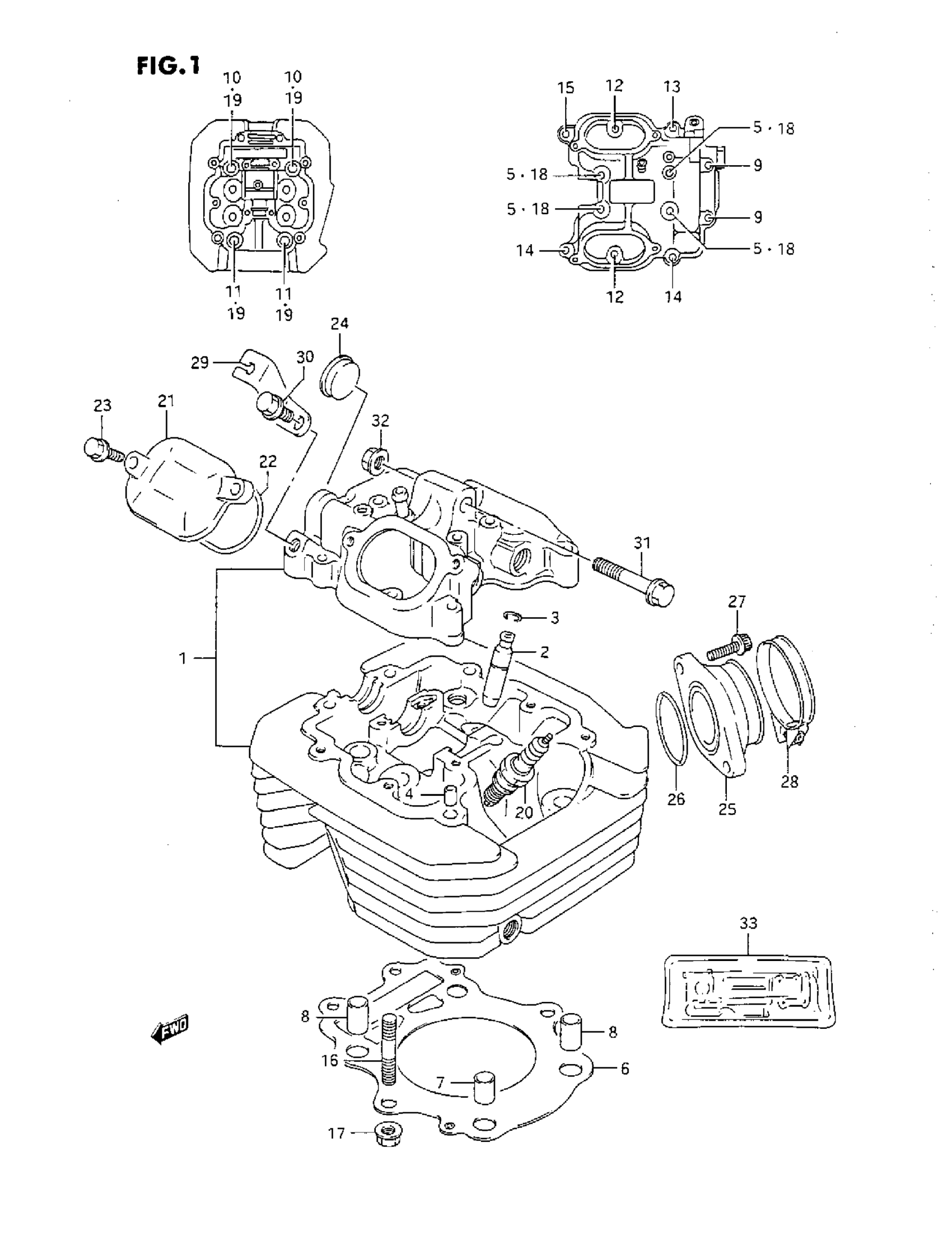

Suzuki DR350S (1993) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL L/M/N

11100-14D02

Unavailable

1

HEAD ASSY, CYLINDER | MODEL P

11100-14D20

Unavailable

1

HEAD ASSY, CYLINDER | MODEL R

11100-14D70

$1,358.13

2

GUIDE,VALVE (OS:0.3) | MODEL L/M/N This part replaces 11115-14D70.

11115-14D71

$44.28

2

GUIDE,VALVE (OS:0.3) | MODEL P/R

11115-14D71

$44.28

3

.RING (10X85)

09381-10004

$1.35

4

PIN

09206-08001

$1.77

5

BOLT (6X55)

09103-06102

$1.68

6

GASKET, CYLINDER HEAD

11141-14D01

$32.73

7

PIN | MODEL L/M/N/P This part replaces 09206-13001.

04211-13189

$2.19

7

PIN (L:18) | MODEL R

04211-13189

$2.19

8

PIN (L:22)

09206-13004

$2.44

9

BOLT (6X115) | MODEL L/M/N/P

09103-06052

$5.10

9

BOLT (6X115) | MODEL R

09103-06167

$3.90

10

BOLT (10X180)

09103-10178

$13.30

11

BOLT (10x155)

09103-10223

$21.22

12

BOLT | MODEL L/M/N/P This part replaces 01517-06257.

01550-06257

$2.31

12

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

13

BOLT | MODEL L/M/N/P This part replaces 01517-06307.

01550-06307

$2.73

13

BOLT | MODEL R This part replaces 01550-06303.

01550-0630A

$2.31

14

BOLT (6X35)

09103-06108

$2.32

15

BOLT (6X39) | MODEL L/M/N/P

09103-06026

$1.84

15

BOLT (6X40) | MODEL R

09103-06504

$2.21

16

STUD BOLT

09108-08142

$2.87

17

NUT (CHROME) | MODEL L/M/N/P This part replaces 08316-16088.

08316-10087

$2.24

17

NUT | MODEL R This part replaces 08316-10083.

08316-1008B

$2.65

18

GASKET

09168-06023

$2.01

19

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.24

20

SPARK PLUG (NGK, DPR9EA-9) | MODEL L/M/N/P GAP 024 -.028 INCHES/.6-.7 MM

09482-00330

$2.85

20

SPARK PLUG (DENSO,X27EPR-U9) | MODEL L/M/N/P GAP 024 -.028 INCHES/.6-.7 MM This part replaces 09482-00331-111.

09482-00331

$5.77

20

SPARK PLUG (NGK, CR9EK) | MODEL R GAP 024 -.028 INCHES/.6-.7 MM

09482-00410

$10.60

20

SPARK PLUG (DENSO,U27ESR-N) | MODEL R GAP 024 -.028 INCHES/.6-.7 MM This part replaces 09482-00411.

09482-00459

$5.58

20

SPARK PLUG (NGK, DPRBEA-9) | OPT , MODEL L/M/N/P GAP 024 -.028 INCHES/.6-.7 MM

09482-00334

$2.80

20

SPARK PLUG (NGK, CR8EK) | OPT , MODEL R GAP 024 -.028 INCHES/.6-.7 MM

09482-00412

$9.72

20

SPARK PLUG (NGK, CR10EK) | OPT , MODEL R GAP 024 -.028 INCHES/.6-.7 MM

09482-00462

$13.63

20

SPARK PLUG (ND, U24ETR) | OPT , MODEL R GAP 024 -.028 INCHES/.6-.7 MM

09482-00413

$14.37

20

SPARK PLUG (ND, U31ETR) | OPT , MODEL R GAP 024 -.028 INCHES/.6-.7 MM

09482-00463

$16.80

21

CAP,INSPECTION | MODEL L/M/N This part replaces 11175-14D00.

11175-47D00

$27.22

21

CAP,INSPECTION | MODEL P/R

11175-47D00

$27.22

22

.O RING,INSPECTION CAP This part replaces 11177-14D00.

11177-14D01

$4.21

23

BOLT | MODEL L/M/N/P This part replaces 01517-06207.

01550-06207

$2.31

23

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

$1.97

24

PLUG, HEAD

09241-25007

$5.58

25

PIPE, INTAKE | MODEL L/M/N This part replaces 13110-14D10.

13101-14D10

Unavailable

25

PIPE, INTAKE | MODEL P

13101-14D10

Unavailable

25

PIPE ASSY,INTAK | MODEL R This part replaces 13101-14D20.

13101-14D22

$35.59

26

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

27

BOLT, FRONT | MODEL L/M/N/P This part replaces 07120-06205.

07120-0620B

$2.80

27

BOLT, FRONT | MODEL R This part replaces 07120-06203.

07120-0620B

$2.80

28

CLAMP

09402-52208

$4.84

29

HOLDER, DECAMP CABLE | MODEL L/M/N/P

12944-14A00

Unavailable

30

BOLT (8X16) | MODEL L/M/N/P This part replaces 01517-08165.

01550-0816A

$2.31

31

BOLT (8X65)

09103-08280

Unavailable

32

NUT

08319-31087

$2.31

33

GASKET SET | MODEL L This part replaces 11401-14831.

11401-14860

Unavailable

33

GASKET SET | MODEL M/N This part replaces 11401-14833.

11401-14860

Unavailable

33

GASKET SET | MODEL P This part replaces 11401-14836.

11401-14860

Unavailable

33

GASKET SET | MODEL R This part replaces 11401-14850.

11401-14853

Unavailable
