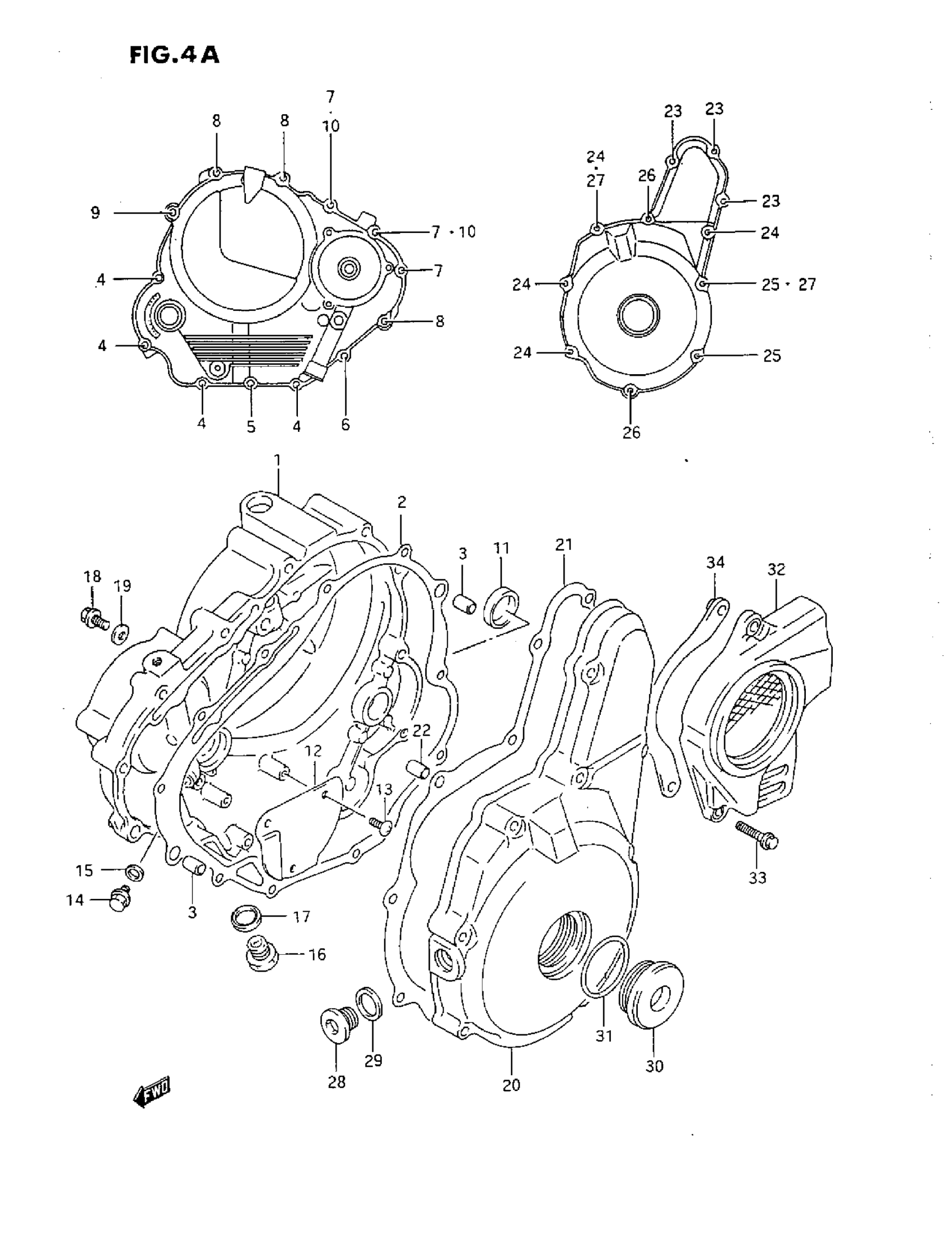

Suzuki DR350S (1993) CRANKCASE COVER (R) Diagram

#

Description
Price

1

COVER SET,CLUTC This part replaces 11341-14D06.

11340-47811

$322.02

2

GASKET, CLUTCH COVER This part replaces 11482-14D02.

11482-14D03

$17.77

3

PIN

04211-09149

$1.64

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

6

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

7

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

8

BOLT This part replaces 01547-06603.

01547-0660B

$2.87

9

BOLT This part replaces 01547-06653.

01547-0665B

$2.92

10

GASKET

09168-06024

$2.19

11

PLUG, CLUTCH COVER KICK

11342-15D00

$7.84

12

SEPARATOR, OIL RETURN

11349-14D00

Unavailable

13

SCREW This part replaces 02142-05103.

02142-0510B

$1.77

14

PLUG, OIL GALLERY

09103-06078

$1.95

15

GASKET

09168-06004

$1.43

16

PLUG, OIL GALLERY

09248-10007

$7.07

17

GASKET

09168-10002

$1.96

18

BOLT (6X10) This part replaces 09128-06043.

09128-06058

$2.17

19

GASKET

09168-06024

$2.19

20

COVER, MAGNET

11351-15D02

$409.50

21

GASKET, MAGNETO COVER This part replaces 11483-15D01.

11483-15D02

$16.70

22

PIN

04211-09149

$1.64

23

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

24

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

25

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

26

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

27

GASKET

09168-06024

$2.19

28

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

29

GASKET

09168-14002

$2.83

30

PLUG, CRANK HOLE

09259-36016-20H

$12.45

31

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

32

COVER, ENGINE SPROCKET

11360-14D01

$100.46

33

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

34

PLATE, FRONT CHAIN GUIDE

27640-14D10

$21.28
