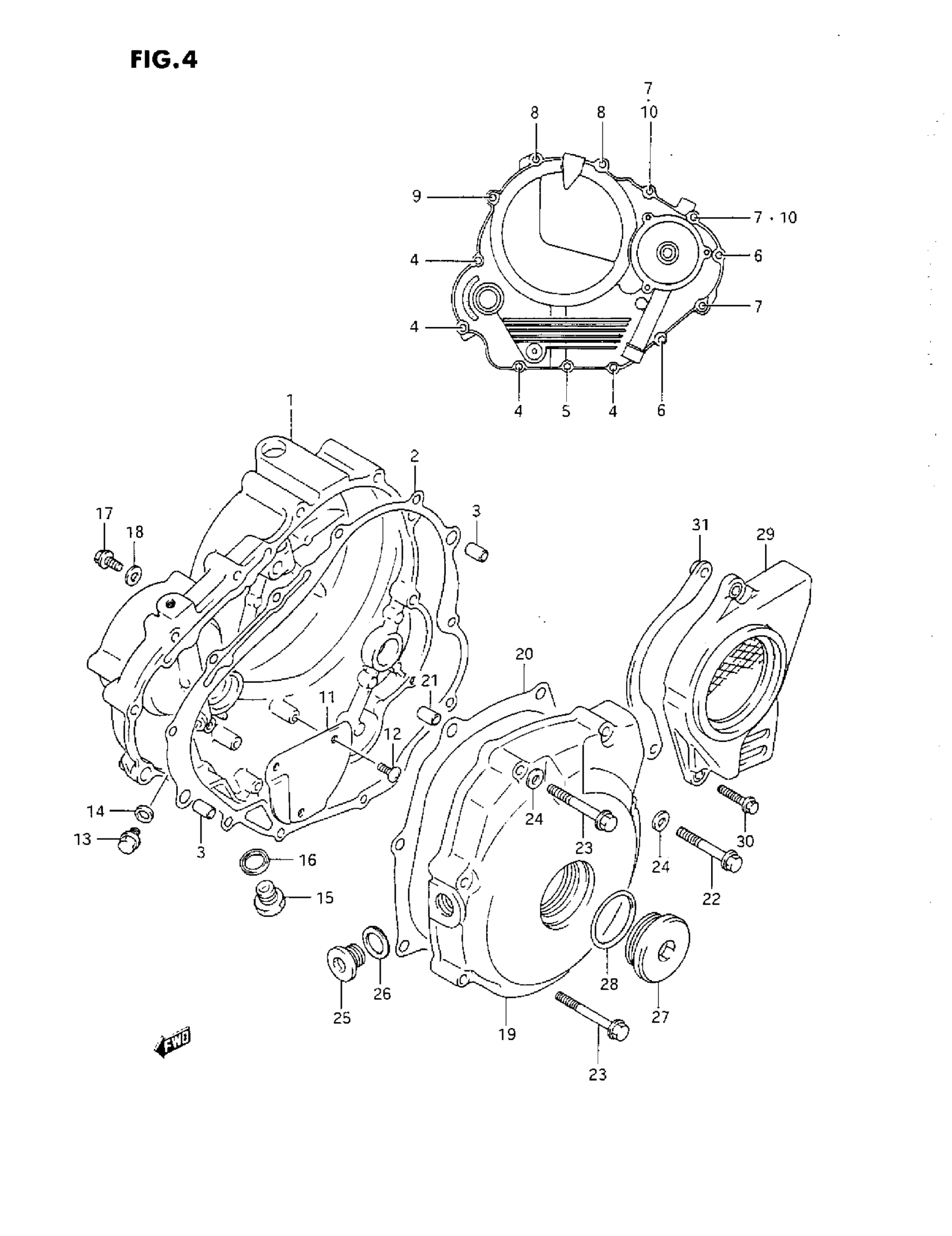

Suzuki DR350S (1993) CRANKCASE COVER (L/M/N/P) Diagram

#

Description
Price

1

COVER SET,CLUTC | MODEL L This part replaces 11341-14D01.

11340-47811

$322.02

1

COVER SET,CLUTC | MODEL M/N This part replaces 11341-14D02.

11340-47811

$322.02

1

COVER SET,CLUTC | MODEL P This part replaces 11341-14D05.

11340-47811

$322.02

2

GASKET, CLUTCH COVER | MODEL L/M/N This part replaces 11482-14D01.

11482-14D03

$17.77

2

GASKET, CLUTCH COVER | MODEL P This part replaces 11482-14D02.

11482-14D03

$17.77

3

PIN

04211-09149

$1.64

4

BOLT

01547-06257

$2.01

5

BOLT

01547-06307

$2.06

6

BOLT

01547-06357

$2.01

7

BOLT

01547-06407

$2.34

8

BOLT

01547-06607

$3.47

9

BOLT

01547-06657

$2.77

10

GASKET

09168-06023

$2.01

11

SEPARATOR, OIL RETURN

11349-14D00

Unavailable

12

SCREW (5X10)

09125-05042

$1.98

13

PLUG, OIL GALLERY

09103-06078

$1.95

14

GASKET

09168-06004

$1.43

15

PLUG, SHAFT | MODEL L/M/N This part replaces 09248-14005.

09248-14011

$2.80

15

PLUG, OIL GALLERY | MODEL P

09248-10007

$7.07

16

GASKET | MODEL L/M/N

09168-14004

$1.69

16

GASKET | MODEL P

09168-10002

$1.96

17

BOLT (6X10) This part replaces 09128-06043.

09128-06058

$2.17

18

GASKET

09168-06023

$2.01

19

COVER, MAGNETO | MODEL L/M/N

11351-14D02

Unavailable

19

COVER, MAGNETO | MODEL P

11351-14D10

Unavailable

20

GASKET, MAGNETO COVER | MODEL L/M/N This part replaces 11483-14D01.

11483-14D03

$17.22

20

GASKET, MAGNETO COVER | MODEL P

11483-14D03

$17.22

21

PIN

04211-09149

$1.64

22

BOLT | MODEL L/M/N

01547-06357

$2.01

22

BOLT | MODEL P

01547-06357

$2.01

23

BOLT | MODEL L/M/N

01547-06457

$2.31

23

BOLT | MODEL P

01547-06457

$2.31

24

GASKET

09168-06023

$2.01

25

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

26

GASKET

09168-14004

$1.69

27

PLUG, CRANK HOLE

09259-36016-20H

$12.45

28

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

29

COVER, ENGINE SPROCKET

11360-14D01

$100.46

30

BOLT

01547-06257

$2.01

31

PLATE, FRONT CHAIN GUIDE

27640-14D01

Unavailable
