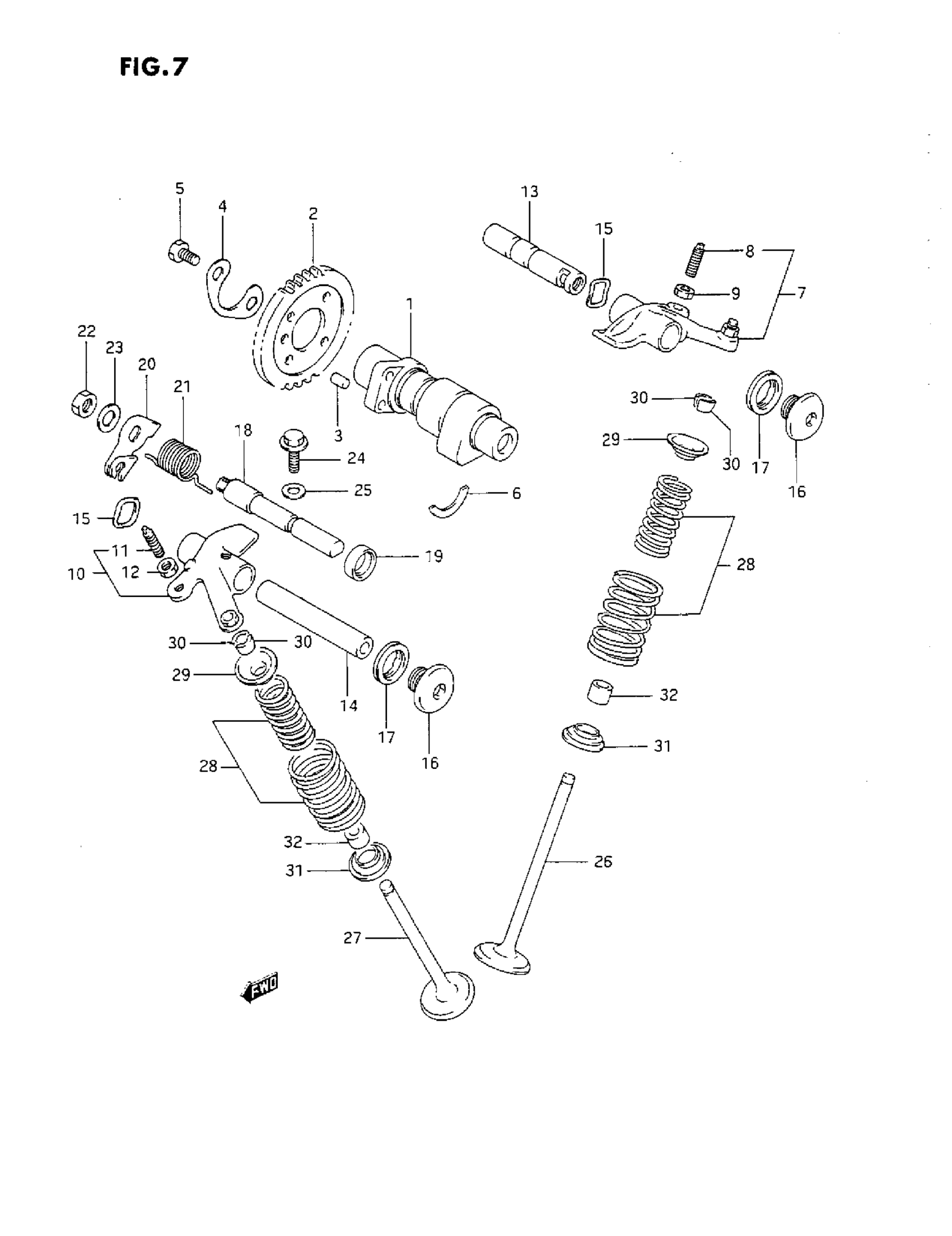

Suzuki DR350S (1993) CAM SHAFT-VALVE (L/M/N/P) Diagram

#

Description
Price

1

CAM SHAFT

12711-14D01

Unavailable

2

SPROCKET (NT:34)

12741-26B00

$60.65

3

PIN

09261-05005

$1.43

4

WASHER | MODEL L/M/N This part replaces 12747-26B00.

12747-26B01

$4.92

4

WASHER | MODEL P

12747-26B01

$4.92

5

BOLT

09111-06032

$2.12

6

C-RING

09390-22002

$2.33

7

ARM, VALVE ROCKER INTAKE

12840-14D00

Unavailable

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$23.82

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.80

10

ARM, VALVE ROCKER EXHAUST

12850-14D00

Unavailable

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$23.82

12

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.80

13

SHAFT, ROCKER ARM IN | L:67

12861-14D00

Unavailable

14

SHAFT, ROCKER ARM EX | L:67

12871-14D00

Unavailable

15

WASHER

09164-12018

$1.41

16

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

17

GASKET

09168-14004

$1.69

18

SHAFT, DECOMPRESSION

12941-14D02

Unavailable

19

OIL SEAL

09282-10014

$6.04

20

LEVER,DECOMP SH This part replaces 12942-14D00.

12942-14D0V

$6.17

21

NO DESCRIPTION AVAILABLE This part replaces 09448-18028.

09448-18028-XC0

Unavailable

22

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.87

23

WASHER This part replaces 08322-11084.

08322-0108A

$2.18

24

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

25

GASKET

09168-06026

$2.80

26

VALVE,INTAKE This part replaces 12911-14D01.

12911-14D10

$34.90

27

VALVE,EXHAUST

12912-14D01

$55.29

28

SPRING SET, VALVE

12920-06B00

$13.02

29

RETAINER, SPRING

12931-27A01

$9.50

30

COTTER, VALVE

12932-27A00

$2.20

31

SEAT,VALVE SPRING | OD:22 This part replaces 12933-27A00.

12933-81400

$4.86

31

SEAT,VALVE SPRING | OD:23

12933-81400

$4.86

32

OIL SEAL

09289-05011

$5.70
