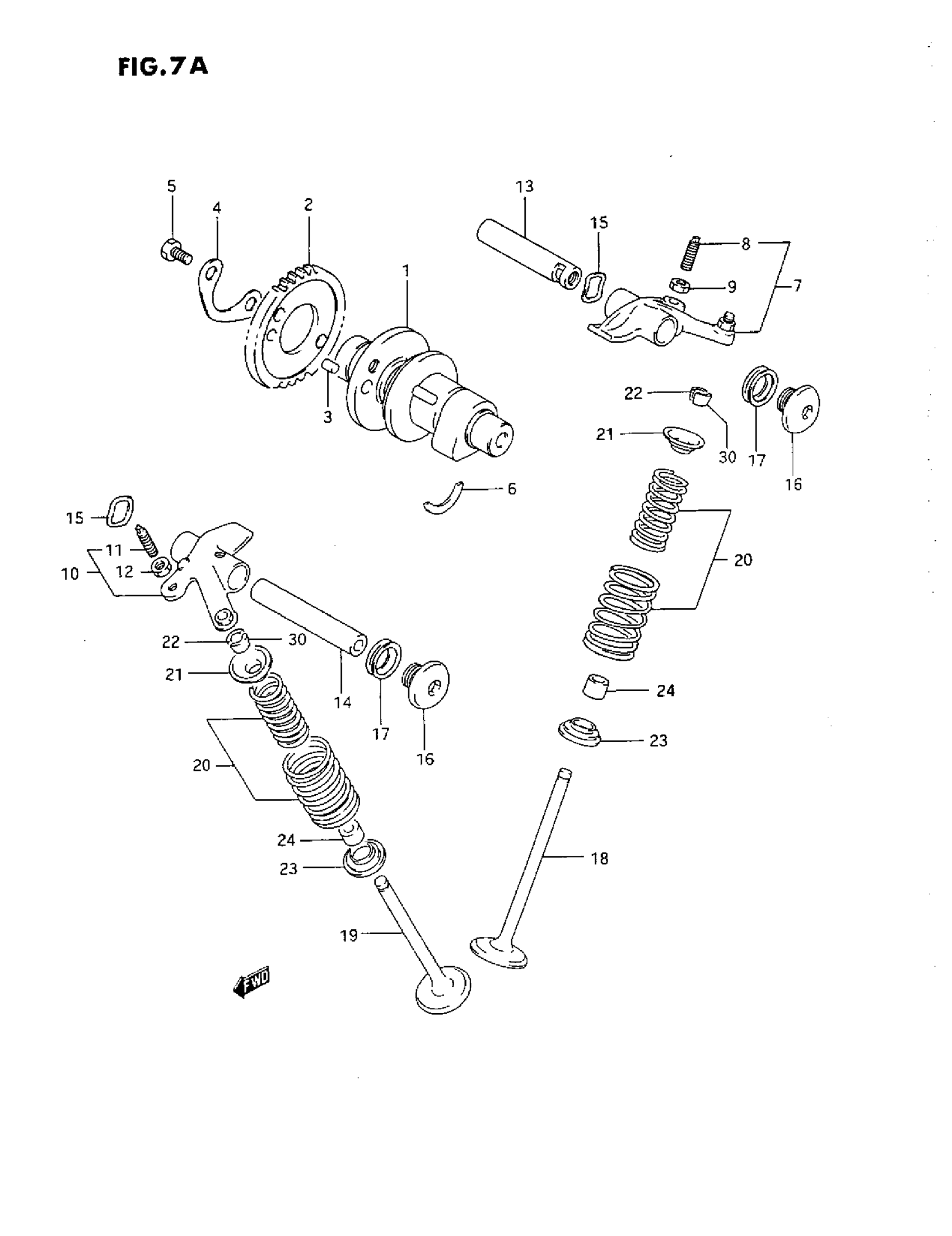

Suzuki DR350S (1993) CAM SHAFT-VALVE (R) Diagram

#

Description
Price

1

SHAFT COMP,CAM This part replaces 12710-14D60.

12710-14D70

$447.83

2

SPROCKET (NT:34)

12741-14D50

$55.55

3

PIN

09261-05005

$1.48

4

WASHER,SPROCKET

12747-44B00

$2.80

5

BOLT

09111-06032

$2.19

6

C-RING

09390-22002

$2.33

7

ARM, VALVE ROCKER INTAKE This part replaces 12840-14D50.

12840-15G00

$88.40

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$23.82

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.90

10

ARM, VALVE ROCKER EXHAUST

12850-14D50

$95.96

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$23.82

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.90

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$34.90

14

SHAFT, ROCKER ARM EX

12871-14D50

$31.90

15

WASHER

09164-12018

$1.41

16

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.81

17

GASKET

09168-14002

$2.83

18

VALVE,INTAKE This part replaces 12911-14D01.

12911-14D10

$36.47

19

VALVE,EXHAUST

12912-14D01

$57.78

20

SPRING SET, VALVE

12920-06B00

$13.59

21

RETAINER, SPRING

12931-27A01

$9.50

22

COTTER, VALVE

12932-27A00

$2.20

23

SEAT,VALVE SPRING

12933-81400

$5.09

24

OIL SEAL

09289-05011

$5.87
