2000 Suzuki DR200SE Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2000 Suzuki DR200SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

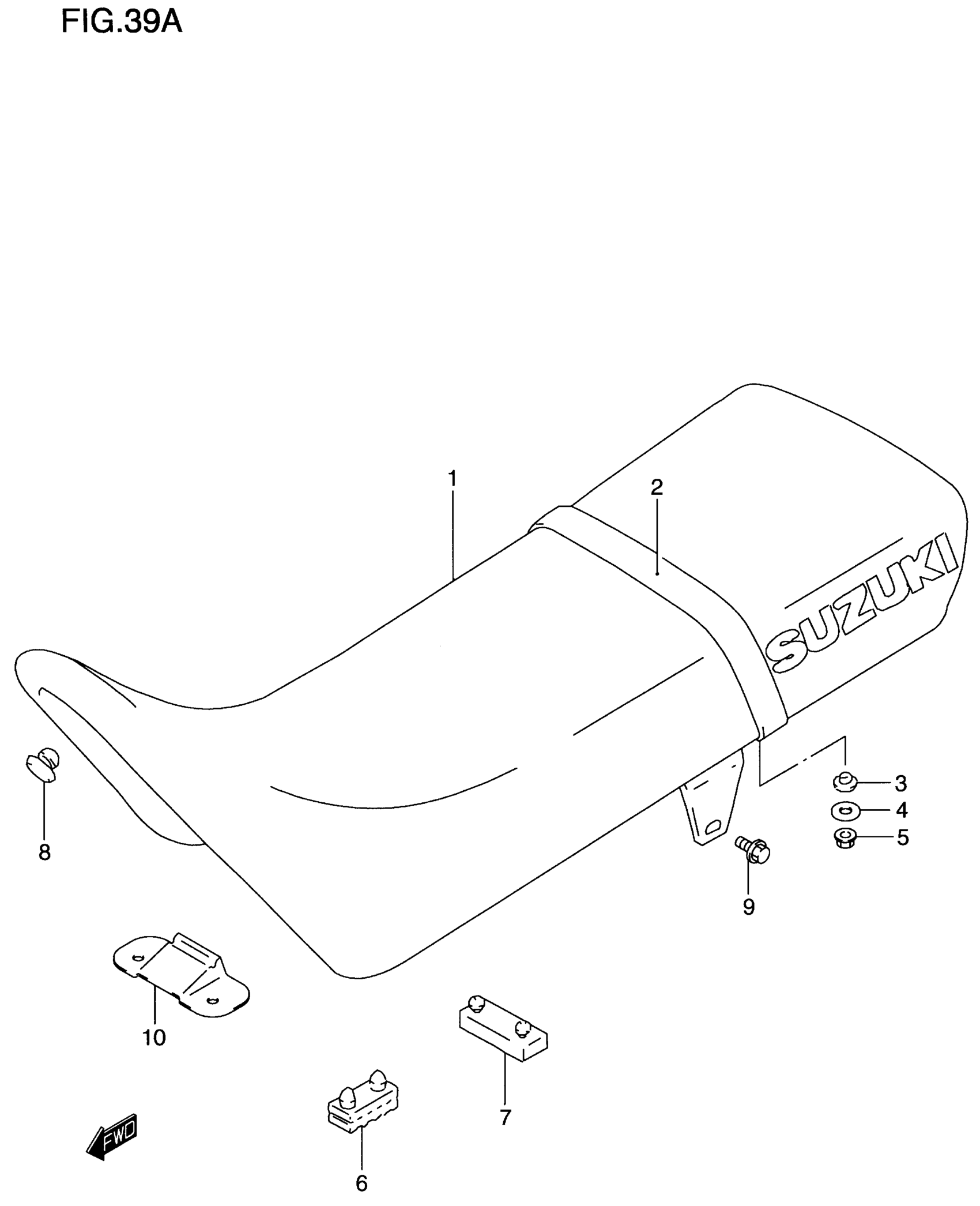

2000 Suzuki DR200SE Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT SET (SEAT BLACK/BLUE) | MODEL X

45100-42AG0-L3M

1
Out of stock

1

SEAT SET (SEAT BLACK/BLUE) | MODEL Y; Includes Item(s) 2 - 8

45100-42AC0-N9K

1
Out of stock

2

BAND, SEAT (BLACK) | MODEL X

45180-42AA0-U82

1
Out of stock

2

BAND, SEAT (BLACK) | MODEL Y

45180-42AA0-P21

1
Out of stock

3

WASHER

09169-06071

2
Out of stock

4

THRUST WASHER

08212-06201

2
Out of stock

5

NUT This part replaces 08316-20063.

08316-2006A

2
Out of stock

6

CUSHION

45149-31300

4
Out of stock

7

CUSHION

45149-43500

1
Out of stock

8

CUSHION

09329-10001

1

$2.56

In stock

9

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

2
Out of stock

10

PLATE, SEAT FRONT HOOK

45119-42A00

1
Out of stock
